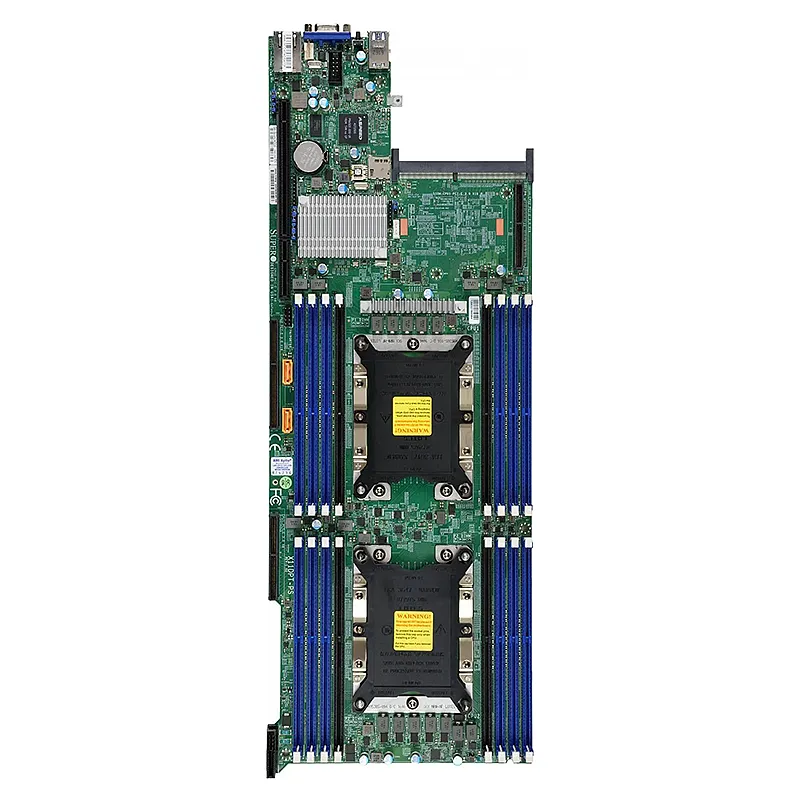

Supermicro MBD-X11DPT-PS

Supermicro MBD-X11DPT-PS: A high-performance dual-socket server motherboard designed for enterprise and data center workloads. Supports dual Intel Xeon Scalable processors (Purely/Cascade Lake) and up to 2TB DDR4 ECC memory via 16 DIMM slots, enabling exceptional multitasking and compute density. Features include seven PCI-E 3.0 slots (including two x16 FHHL) for GPUs/accelerators, dual 10G LAN ports, 14 SATA/NVMe slots, and IPMI 2.0 remote management for seamless monitoring. Optimized for scalability, reliability, and energy efficiency, it excels in AI, virtualization, cloud, and storage applications. Unique selling points: Future-proof expandability, robust thermal design, and Supermicro’s proven server-grade durability.

$Quote1 Piece(MOQ)

SKU MBD-X11DPT-PS Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPT-PS

Physical Stats

  • Form Factor
    Proprietary Twin
  • Dimension
    6.8″ x 18.86″ (17.27cm x 47.9cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Single LAN, Networking options provided via SIOM module

Input / Output

  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16 Right Riser Slot,
    1 PCIe 3.0 x24 riser,
    1 PCIe 3.0 x16 connector for SMC add-on cards,
    1 PCIe 3.0 x8 connector for SMC add-on cards
    PCIe 3.0 x16 SIOM LAN Networking slot

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Networking options provided via SIOM module, Single LAN
Chipset

Intel C621
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA port(s)
DOM

DOM
Dimension

6.8" x 18.86" (17.27cm x 47.9cm)
PCIe

1 PCIe 3.0 x16 connector for SMC add-on cards, 1 PCIe 3.0 x16 Right Riser Slot, 1 PCIe 3.0 x24 riser, 1 PCIe 3.0 x8 connector for SMC add-on cardsPCIe 3.0 x16 SIOM LAN Networking slot
USB

2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary Twin
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
SATA

1, 10, 5, Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
