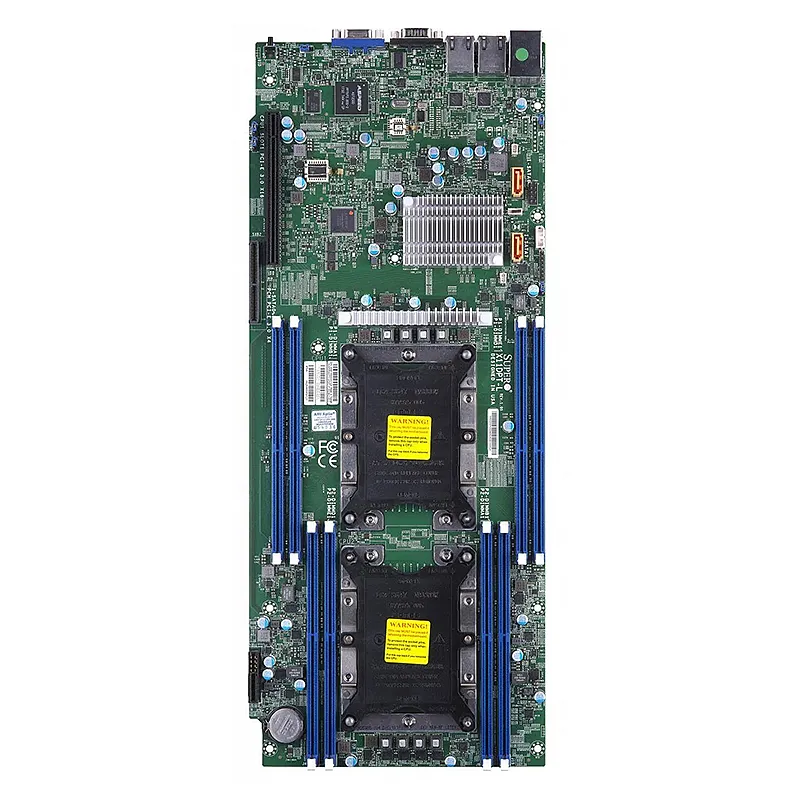

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPT-L

Supermicro MBD-X11DPT-L: A high-performance dual-socket server motherboard designed for enterprise and data center applications. Supports dual Intel Xeon Scalable processors (Purely/Cascade Lake) and Intel C621 chipset, delivering exceptional compute power for AI, cloud, and virtualization workloads. Features 16 DDR4 DIMM slots (up to 2TB RAM), seven PCI-E 3.0 slots (supports GPUs/NVMe), dual 10G LAN, and multiple SATA/M.2 ports for scalable storage. Integrated IPMI 2.0 enables remote management, while redundant power support and military-grade components ensure reliability. Ideal for demanding environments requiring scalability, low-latency networking, and future-proof expansion. Combines enterprise-grade durability with Supermicro’s optimized thermal design for 24/7 operation. USP: Balances raw performance, extensive connectivity, and robust build quality for mission-critical infrastructure.

Read More

$Quote1 Piece(MOQ)

SKU MBD-X11DPT-L Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPT-L

Physical Stats

  • Form Factor
    Proprietary Twin
  • Dimension
    6.8″ x 16.64″ (17.27cm x 42.27cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 1GbE with Marvell 88E1512

Input / Output

  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16

System BIOS

  • BIOS Type
    32MB AMI SPI Flash ROM with UEFI

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Graphics 1 ASPEED AST2500 BMC port(s)
TPM 1 TPM Header
Network Controllers Dual LAN with 1GbE with Marvell 88E1512
Chipset Intel C621
DIMM Sizes LRDIMM: 128GBRDIMM: 64GB
BIOS Type 32MB AMI SPI Flash ROM with UEFI
LAN 2 RJ45 Gigabit Ethernet LAN ports
Video Output 1 VGA D-Sub Connector port(s)
DOM DOM
Dimension 6.8" x 16.64" (17.27cm x 42.27cm)
PCIe 1 PCIe 3.0 x16
USB 2 USB 3.0 port(s) (2 rear)
Form Factor Proprietary Twin
Memory Type 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application Server
IPMI ASPEED AST2500
Memory Voltage 1.2V
CPU 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
Serial Port 1 COM Port(s) (1 rear)
SATA 1, 10, 5, Intel C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity 8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core Up to 28 cores
