Product SKUs

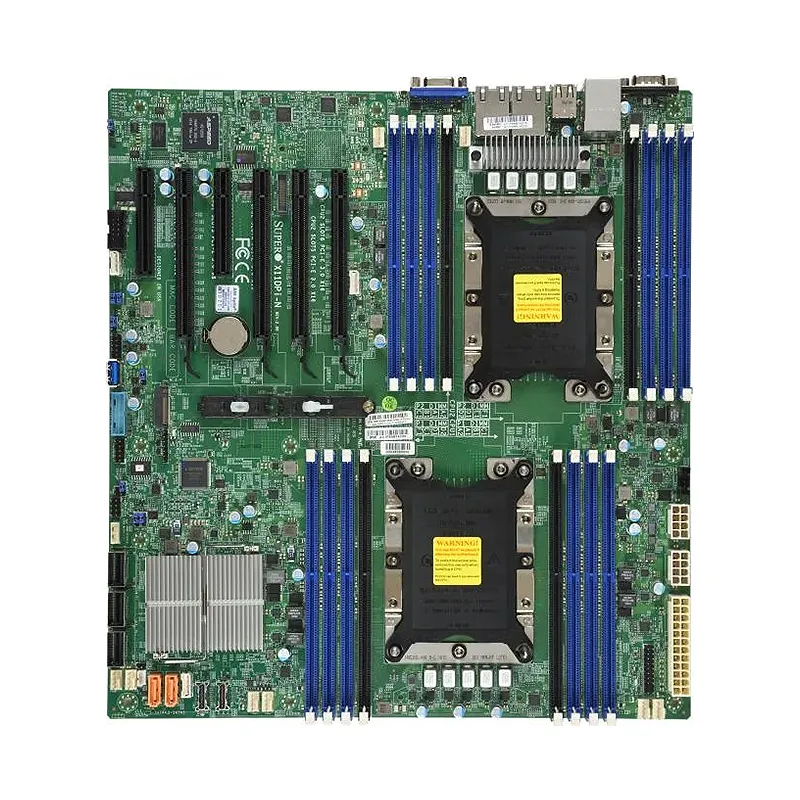

- MBD-X11DPI-NT
Physical Stats
- Form Factor
E-ATX
- Dimension
12″ x 13″ (30.48cm x 33.02cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C622
- SATA
Intel C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with 10GBase-T with Intel X722 + X557
Input / Output
- SATA
14 SATA3 (6Gbps) port(s)
- USB
4 USB 2.0 port(s) (2 via header; 2 rear)
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- DOM
2 Super DOM (Disk on Module) ports
- TPM
1 TPM Header
Expansion Slots
- PCIe
4 PCIe 3.0 x16,
2 PCIe 3.0 x8 - M.2
M.2 Interface: PCIe 3.0 x4
Form Factor: 22110, 2280, 2260
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
