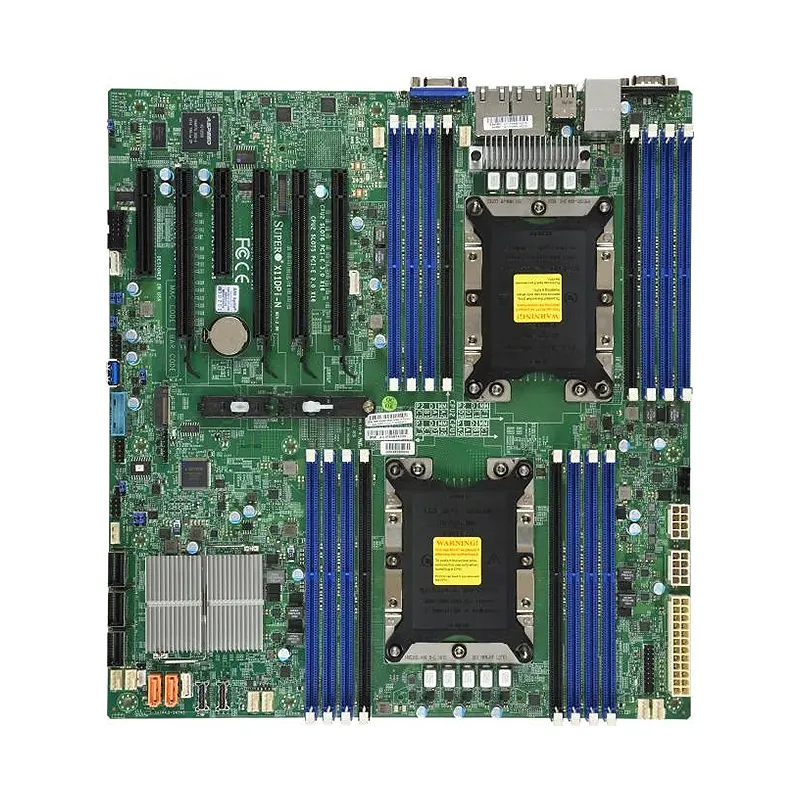

Supermicro MBD-X11DPI-N

**Supermicro MBD-X11DPI-N: High-Performance Dual-Processor Server Motherboard**
Designed for enterprise and data center workloads, the Supermicro MBD-X11DPI-N combines dual Intel Xeon Scalable processors (LGA 3647) and the C621 chipset to deliver exceptional compute density and multitasking power. Features include 16 DDR4-2666MHz DIMM slots for up to 4TB memory, PCIe 3.0 expansion (x16/x8 slots), dual 10G LAN ports, and NVMe/M.2/SATA storage support. Built for scalability and reliability, it offers IPMI 2.0 remote management, optimized thermal design, and redundancy for mission-critical applications. Ideal for AI, virtualization, and high-performance computing, its robust I/O and future-ready architecture ensure peak efficiency and uptime.

$Quote1 Piece(MOQ)

SKU MBD-X11DPI-N Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPI-N

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    12″ x 13″ (30.48cm x 33.02cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 1GbE LAN with Intel X722

Input / Output

  • SATA
    14 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    4 PCIe 3.0 x16,
    2 PCIe 3.0 x8
  • M.2
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 22110, 2280, 2260
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 1GbE LAN with Intel X722
M.2

2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4Form Factor: 22110
Chipset

Intel C621
DIMM Sizes

LRDIMM: 128GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

2 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

12" x 13" (30.48cm x 33.02cm)
PCIe

2 PCIe 3.0 x8, 4 PCIe 3.0 x16
USB

4 USB 2.0 port(s) (2 via header; 2 rear)3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

E-ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

14 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
