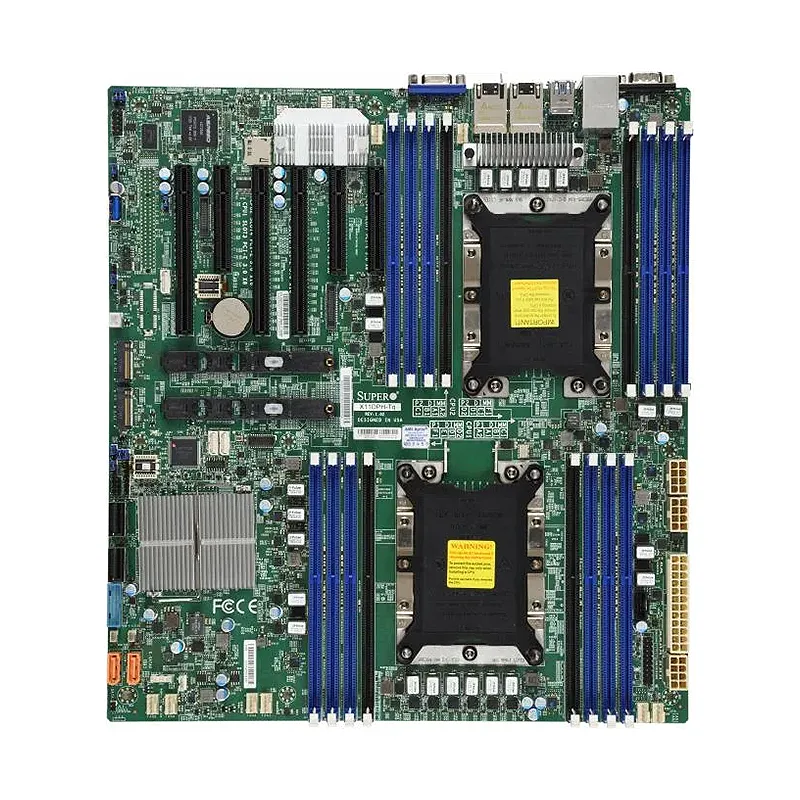

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPH-Tq

Dual-socket server motherboard built for high-performance computing, supporting Intel Xeon Scalable processors (up to 28 cores each) and the C621 chipset. Features 16 DDR4-2933 DIMM slots (2TB RAM), triple ultra-fast M.2 NVMe slots, seven PCIe 3.0 expansion slots, and dual 10G LAN ports. Optimized for scalability and reliability with IPMI 2.0 remote management, ideal for data centers, AI, and cloud workloads. Unique selling points: exceptional storage flexibility (M.2 + SATA), enterprise-grade networking, and robust expandability for demanding applications.

Read More

$Quote1 Piece(MOQ)

SKU MBD-X11DPH-Tq Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPH-Tq

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    12″ x 13″ (30.48cm x 33.02cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C627
  • SATA
    Intel C627 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X722 + X557

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    3 PCIe 3.0 x16,
    3 PCIe 3.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    Form Factor: 2242/2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
TPM 1 TPM Header
Network Controllers Dual LAN with 10GBase-T with Intel X722 + X557
M.2 1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0
Chipset Intel C627
DIMM Sizes LRDIMM: 64GBRDIMM: 64GB
BIOS Type AMI UEFI
LAN 2 RJ45 10GBase-T ports
Video Output 1 VGA port(s)
DOM DOM
Dimension 12" x 13" (30.48cm x 33.02cm)
PCIe 3 PCIe 3.0 x16, 3 PCIe 3.0 x8
USB 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Form Factor E-ATX
Memory Type 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application Server
IPMI ASPEED AST2500
Memory Voltage 1.2V
CPU 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port 1 COM Port(s) (1 rear)
SATA 10 SATA3 (6Gbps) port(s)
Memory Capacity 16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core Up to 28 cores
