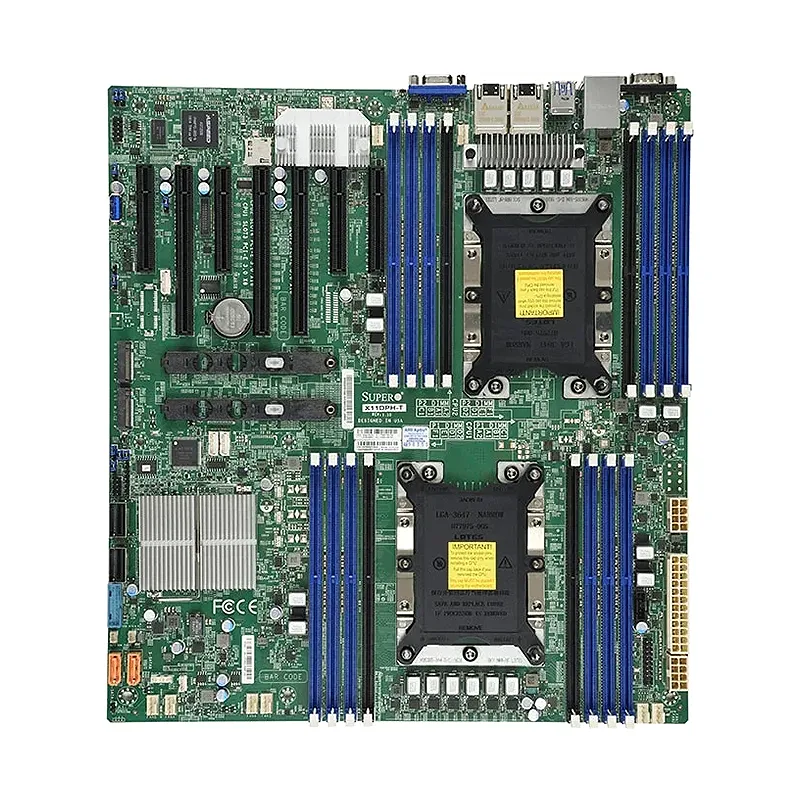

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPH-T

**Supermicro MBD-X11DPH-T: High-Performance Dual-Socket Server Motherboard**
Designed for enterprise and data center workloads, the Supermicro MBD-X11DPH-T supports dual Intel Xeon Scalable processors (LGA 3647) and the Intel C621 chipset, delivering exceptional compute power for AI, virtualization, and HPC applications. Features include 16 DDR4-2666MHz DIMM slots (up to 2TB 3DS LRDIMM), PCIe 3.0 expansion (x16/x8 slots), dual 10G LAN ports, and flexible storage via SATA, NVMe (M.2/U.2), and SAS. Integrated IPMI 2.0 with KVM ensures remote management, while its ATX form factor optimizes scalability and reliability. Ideal for demanding environments, it combines high-density memory, robust connectivity, and enterprise-grade resilience for peak performance and future-proofed infrastructure.

$Quote1 Piece(MOQ)

SKU MBD-X11DPH-T Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPH-T

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    12″ x 13″ (30.48cm x 33.02cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C622
  • SATA
    Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X722 + X557

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    3 PCIe 3.0 x16,
    4 PCIe 3.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    Form Factor: 2242/2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X722 + X557
M.2

1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0
Chipset

Intel C622
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10GBase-T ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

12" x 13" (30.48cm x 33.02cm)
PCIe

3 PCIe 3.0 x16, 4 PCIe 3.0 x8
USB

7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Form Factor

E-ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
