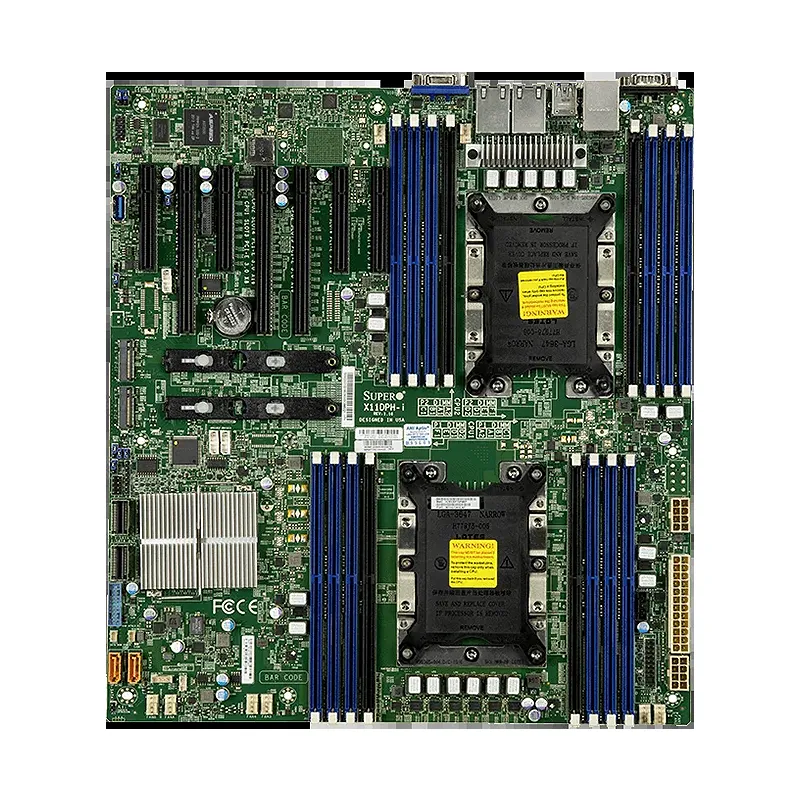

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPH-i

Supermicro MBD-X11DPH-i is a high-performance dual-socket server motherboard designed for enterprise and data center applications. Key features include support for dual Intel Xeon Scalable processors (up to 205W TDP), 12 DDR4 DIMM slots (up to 1.5TB memory), and seven PCIe 3.0 slots for expansive storage and GPU/FPGA acceleration. Integrated dual 10G LAN ports ensure high-speed networking, while onboard M.2 and SATA ports enable flexible NVMe/SATA storage configurations. Built with server-grade reliability, it includes IPMI 2.0 for remote management, optimized thermal design, and TPM 1.2 security. Ideal for AI, cloud, and virtualization workloads, its USP lies in unmatched scalability, robust connectivity, and enterprise-grade stability in a compact ATX form factor.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11DPH-i Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPH-i

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    12″ x 13″ (30.48cm x 33.02cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Network Controllers
    Dual LAN with 1GbE with Intel X722 + Marvell 88E1512

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 1GbE LAN ports
  • USB
    7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    3 PCIe 3.0 x16,
    4 PCIe 3.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    Form Factor: 2242/2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
TPM

1 TPM Header
Network Controllers

Dual LAN with 1GbE with Intel X722 + Marvell 88E1512
M.2

1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0
Chipset

Intel C621
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

2 1GbE LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

12" x 13" (30.48cm x 33.02cm)
PCIe

3 PCIe 3.0 x16, 4 PCIe 3.0 x8
USB

7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Form Factor

E-ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
