Supermicro MBD-X11DPG-SN

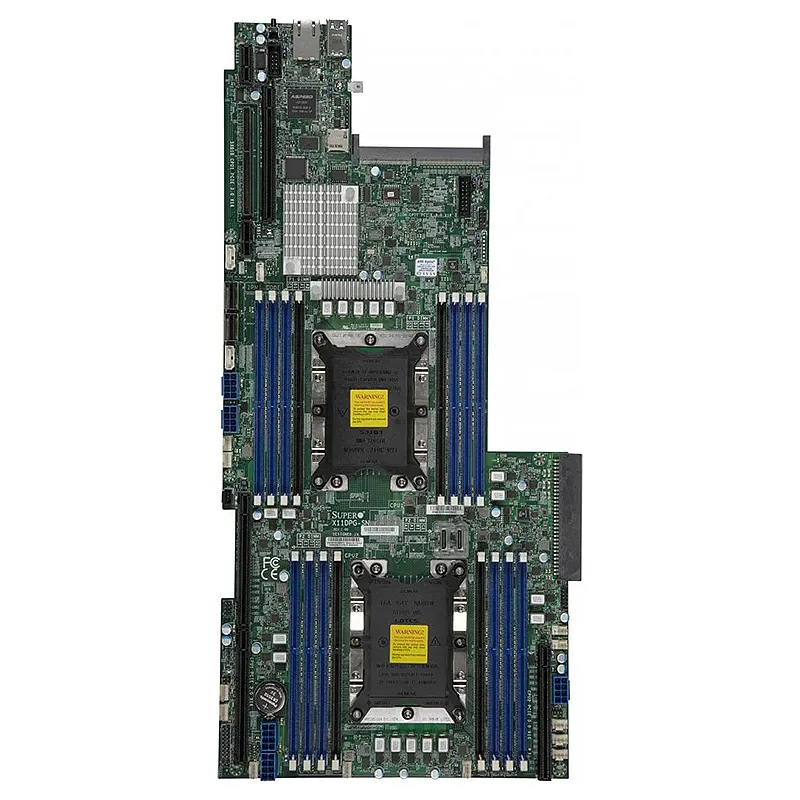

**Supermicro MBD-X11DPG-SN Server Motherboard**
A high-performance dual-socket motherboard designed for enterprise servers, supporting Intel Xeon Scalable processors (Skylake-SP/Cascade Lake) and Intel C621 chipset. Key features include 16 DDR4-2666MHz DIMM slots (up to 2TB RAM), seven PCI-E 3.0 slots for expansion, dual 10G LAN ports, and versatile storage options (M.2, NVMe, SATA). Built for reliability with 24/7 operation support, IPMI 2.0 remote management, and optimized thermal design. Ideal for data centers, cloud computing, AI, and HPC workloads, it delivers scalability, robust connectivity, and energy efficiency, distinguishing itself with enterprise-grade durability and flexible configuration for demanding environments.

$Quote1 Piece(MOQ)

SKU MBD-X11DPG-SN Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPG-SN

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    9.2″ x 19.8″ (23.37cm x 50.29cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers

Input / Output

  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    4 PCIe 3.0 x16,
    1 PCIe 3.0 x8

System BIOS

  • BIOS Type
    AMI UEFI
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Chipset

Intel C621
DIMM Sizes

128GB, LRDIMM: 128GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA port(s)
Dimension

9.2" x 19.8" (23.37cm x 50.29cm)
PCIe

1 PCIe 3.0 x8, 4 PCIe 3.0 x16
USB

2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 header)
SATA

1, 10, 5, Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
