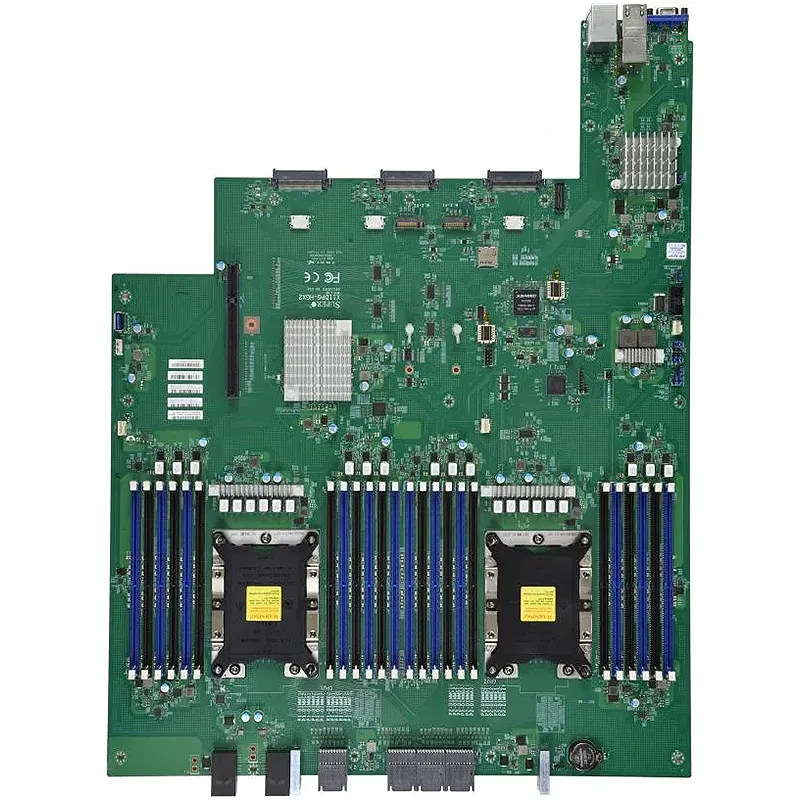

Supermicro MBD-X11DPG-HGX2

Product SKUs

MBD-X11DPG-HGX2

Physical Stats

Form Factor
Proprietary
Dimension
21.94″ x 16.85″ (55.73cm x 42.8cm)

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 10GBase-T with Intel X540 10GbE Controller

Input / Output

SATA
8 SATA3 (6Gbps) port(s)
USB
1 USB 3.2 Gen1 port(s) (1 via header)
2 USB 3.0 port(s) (2 rear)
Video Output
1 VGA D-Sub Connector port(s)
TPM
1 TPM Header

Expansion Slots

PCIe
2 PCIe 3.0 x16
M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Type
AMI UEFI

TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X540 10GbE Controller
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621
DIMM Sizes	LRDIMM: 128GBRDIMM: 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	21.94" x 16.85" (55.73cm x 42.8cm)
PCIe	2 PCIe 3.0 x16
USB	1 USB 3.2 Gen1 port(s) (1 via header)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
SATA	8 SATA3 (6Gbps) port(s)
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores

Q1: ls the product original ?

A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.

Q2. Payment methods?

We accept T/T, PayPal, Alibaba ect.

Q3. Shipping methods?

We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.

Q4. How long is the lead time?

Usually 1-3 working days after payment. Feel free to send me exact models for checking.

Q5. How long is the warranty period?

Different products have different warranty periods. Usually 1~3 years warranty.
