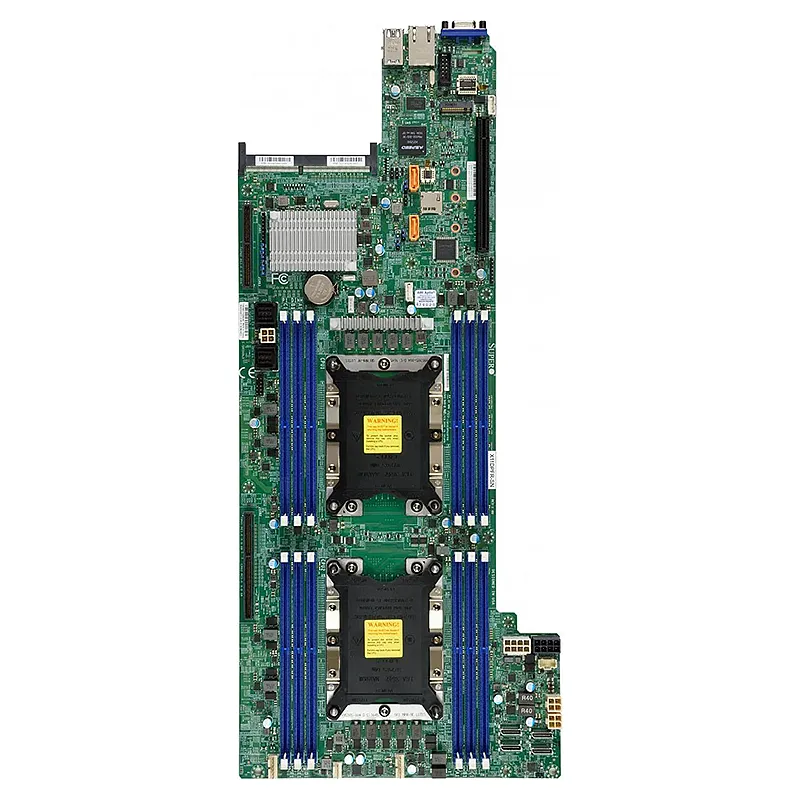

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPFR-S

**Supermicro MBD-X11DPFR-S: High-Performance Dual-Socket Server Motherboard**
Designed for enterprise-grade computing, the Supermicro X11DPFR-S supports dual Intel Xeon Scalable processors (C620 chipset), delivering exceptional performance for data centers, AI, and HPC. Features include 16 DDR4 DIMM slots (up to 4TB 3DS LRDIMM), seven PCIe 3.0 slots for GPUs/expansion, dual M.2, 14 SATA3 ports, and dual 10G LAN. Enhanced by IPMI 2.0 remote management, it ensures scalability, reliability, and optimized workload handling. Ideal for demanding environments requiring high memory, storage flexibility, and robust connectivity.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11DPFR-S Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPFR-S

Physical Stats

  • Form Factor
    Proprietary FatTwin
  • Dimension
    8.53″ x 19.66″ (21.67cm x 49.94cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Single LAN, Networking options provided via SIOM module

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • DOM
    2 Super DOM (Disk on Module) power connector
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x24 Left Riser Slot,
    1 PCIe 3.0 x16 Left Riser Slot,
    1 PCIe 3.0 x16 connector for SMC add-on cards
    1 PCIe 3.0 x16 SIOM LAN Networking Slot
  • M.2
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 22110, 2280, 2260
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Networking options provided via SIOM module, Single LAN
M.2

2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4Form Factor: 22110
Chipset

Intel C621
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA port(s)
DOM

DOM
Dimension

8.53" x 19.66" (21.67cm x 49.94cm)
PCIe

1 PCIe 3.0 x16 connector for SMC add-on cards1 PCIe 3.0 x16 SIOM LAN Networking Slot, 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x24 Left Riser Slot
USB

2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary FatTwin
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

12 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
