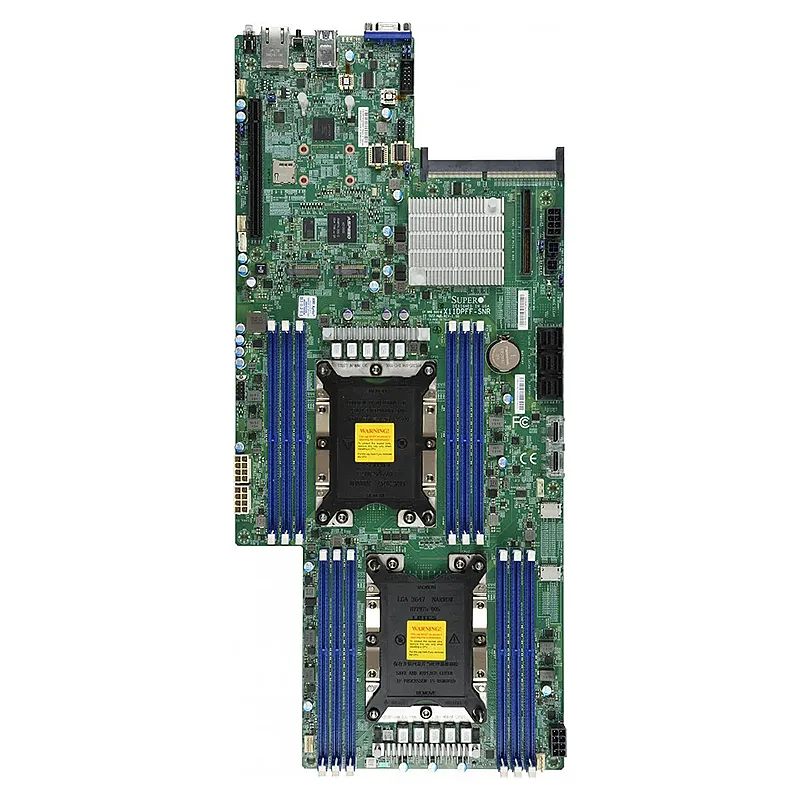

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPFF-SNR

**Supermicro MBD-X11DPFF-SNR**
A high-performance dual-socket server motherboard designed for enterprise, data center, and HPC/AI workloads. Supports dual Intel Xeon Scalable processors (Purely/Cascade Lake) and the C621 chipset, delivering exceptional compute power for demanding tasks. Features 16 DDR4-2933 DIMM slots (2TB max) for high-speed memory, eight SATA ports, dual M.2 NVMe slots, and seven PCIe 3.0 x16 slots for flexible storage and expansion. Integrated dual 10G LAN ports ensure ultra-fast networking, while IPMI 2.0 enables remote management. Optimized for reliability with redundant power support and server-grade components. Ideal for virtualization, cloud, and AI/ML applications, offering scalability, robust I/O bandwidth, and energy efficiency in an E-ATX form factor. USP: Combines cutting-edge performance, extensive connectivity, and enterprise-grade durability for mission-critical environments.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11DPFF-SNR Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPFF-SNR

Physical Stats

  • Form Factor
    Proprietary FatTwin
  • Dimension
    8.441″ x 18.724″ (21.44cm x 47.56cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Network Controllers
    Single LAN, Networking options provided via SIOM module

Input / Output

  • SATA
    12 SATA3 (6Gbps) port(s)
  • SAS
    12 SAS port(s)
  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16 Left Riser Slot,
    1 PCIe 3.0 x16 Right Riser Slot
  • M.2
    M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1
    Form Factor: 2242/2260/2280/22110

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Network Controllers

Networking options provided via SIOM module, Single LAN
M.2

M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1Form Factor: 2242/2260/2280/22110
Chipset

Intel C621
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA port(s)
Dimension

8.441" x 18.724" (21.44cm x 47.56cm)
PCIe

1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot
USB

2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary FatTwin
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
SAS

12 SAS port(s)
SATA

12 SATA3 (6Gbps) port(s)
Memory Capacity

12 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM
Error Detection

Detects double-bit errors (using ECC memory)
Core

Up to 28 cores
