Product SKUs
- MBD-X10SDD-F

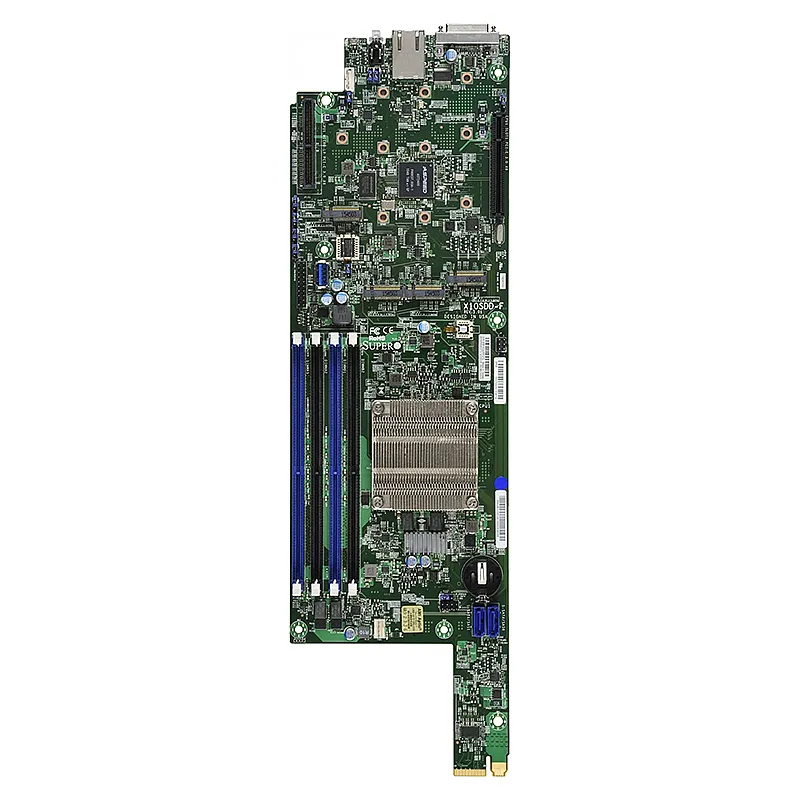

X10SDD-F
Physical Stats
- Form Factor
Proprietary
- Dimensions
4.75″ x 19.95″ (12.07cm x 50.67cm)
Processor/Cache
- CPU
Intel Xeon Processor D-1541.
Single Socket FCBGA1667 supported, CPU TDP support 45W
System Memory
- Memory Capacity
128GB Registered ECC RDIMM
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots - Memory Type
2133/2400MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- SATA
2 SATA3 (6 Gbps) ports;
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Network Controllers
Intel i350, 2x Gigabit LAN ports
- Graphics
Aspeed AST2400 BMC
Input / Output
- USB
2 USB 2.0 ports (2 rear Type A))
1 USB 3.1 Gen1 ports, 1 Type A);
2x USB 2.0 ports via KVM - Video Output
1 VGA port
- TPM
1 TPM Header
Expansion Slots
- PCI-E
1 PCI-E 3.0 x8 (Micro Low Profile),
1 PCI-E 3.0 x8 - M.2
2 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
ACPI 5.0
PCI FW 3.0
Plug and Play (PnP)
UEFI 2.4
SMBIOS 2.8
USB Keyboard support
Management
- Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
