Product SKUs

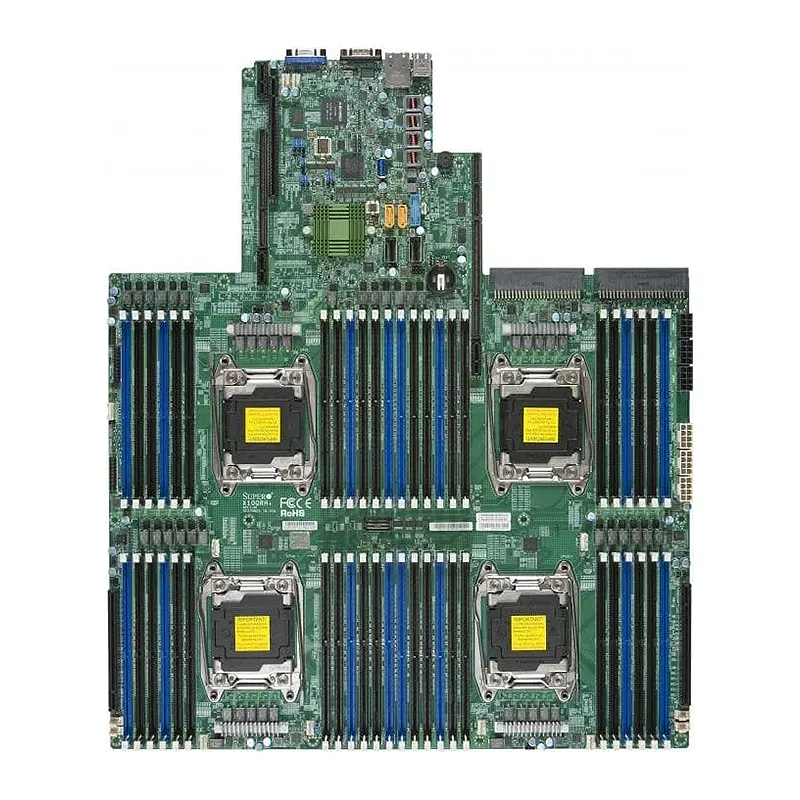

- MBD-X10QRH+
X10QRH+
Physical Stats
- Form Factor
Proprietary
- Dimensions
20″ x 16.8″ (50.8cm x 42.67cm)
Processor/Cache
- CPU
Intel Xeon processor E5-4600.
Quad Socket R3 (LGA 2011) supported, CPU TDP support Up to 135W TDP, 1 QPI up to 9.6GT/s - Cores / Cache
Up to 22 cores / Up to 55MB cache
System Memory
- Memory Capacity
Up to 6TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2400MHz, in 48 DIMM slots48 DDR4 DIMM slots, Up to 6TB total memory capacity
- Memory Type
- DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C612
- SATA
SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Network Controllers
Quad LAN with GbE
- Graphics
Aspeed AST2400 BMC
Input / Output
- SATA
10 SATA3 (6Gbps) port
- LAN
4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
2 USB 2.0 ports (2 headers, Type A))
3 USB 3.0 ports (1 rear + 1 header + 1 Type A) - Video Output
1 VGA port
- Serial Port / Header
1 COM Port (1 rear)
- TPM
TPM Header & Chip both
Expansion Slots
- PCI-E
Please refer the block diagram. 1 PCI-E 3.0 (x32) for left hand side riser card support (rear left) 1 PCI-E 3.0 (x40) for right hand side riser card support (rear right) 1 PCI-E 3.0 (x8 in x16) for right hand side riser card support (rear middle) 2 PCI-E 3.0 (x16) on both front right and front rear for NVME/Internal card support
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
- Power Configurations
ACPI Power Management
