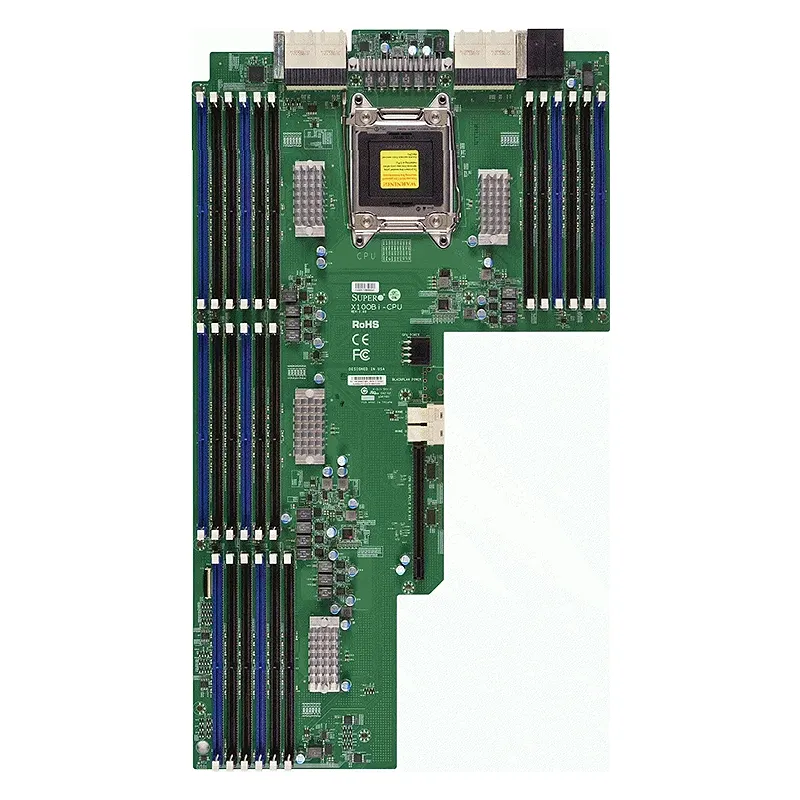

Supermicro MBD-X10OBI-CPU

**Supermicro MBD-X10OBI-CPU**: A high-performance server/workstation motherboard supporting Intel Xeon E5-2600 v3/v4 and Core i3 processors, designed for scalability and reliability. Features include dual 9.6GT/s QPI links, eight DDR4 DIMM slots (1TB, 2133MHz), six PCIe slots (including x16/x8), eight SATA3 ports, and an M.2 NVMe slot for ultra-fast storage. Dual Intel Gigabit Ethernet and IPMI 2.0 with KVM enable robust remote management. Ideal for data centers, HPC, and enterprise environments, it excels in expandability, performance, and energy efficiency, offering unmatched flexibility for demanding workloads.

$Quote1 Piece(MOQ)

SKU MBD-X10OBI-CPU Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X10OBI-CPU
    X10OBI-CPU

Physical Stats

  • Form Factor
    Proprietary
  • Dimensions
    11.07″ x 20.17″ (28.12cm x 51.23cm)

Processor/Cache

  • CPU
    Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.
    Octal Socket LGA-2011 (Socket R) supported, CPU TDP support Up to 165W TDP, 3 QPI up to 9.6GT/s

System Memory

  • Memory Capacity
    Up to 3TB 3DS ECC RDIMM, DDR4-1866MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-1866MHz, in 24 DIMM slots; LRDIMM and RDIMM support up to 3TB with 128GB DIMM size
  • Memory Type
    1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
    LRDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
    3DS LRDIMM: 16GB, 32GB, 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C602J
  • SATA
    (on Storage board)
  • Network Controllers
    Quad LAN with Patsburg-J Chipset(on PCH board)
  • Graphics
    (on PCH board)

Input / Output

  • USB
    (on PCH board)
  • Video Output
    (on PCH board)
  • Others
    (TPM header on PCH board)

Expansion Slots

  • PCI-E
    1 PCI-E 3.0 x16,
    1 PCI-E 3.0 x8

System BIOS

  • BIOS Type
    AMI UEFI
Graphics

(on PCH board)
PCI-E

1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
Network Controllers

Quad LAN with Patsburg-J Chipset(on PCH board)
Chipset

Intel C602J
DIMM Sizes

128GB, 128GB3DS LRDIMM: 16GB, 128GBLRDIMM: 8GB, 16GB, 32GB, 64GB, RDIMM: 8GB
BIOS Type

AMI UEFI
Video Output

(on PCH board)
USB

(on PCH board)
Form Factor

Proprietary
Memory Type

1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
Others

(TPM header on PCH board)
Memory Voltage

1.2V
CPU

3 QPI up to 9.6GT/s, CPU TDP support Up to 165W TDP, Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.Octal Socket LGA-2011 (Socket R) supported
SATA

(on Storage board)
Memory Capacity

DDR4-1866MHz, DDR4-1866MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots; LRDIMM and RDIMM support up to 3TB with 128GB DIMM size, Up to 3TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions

11.07" x 20.17" (28.12cm x 51.23cm)
