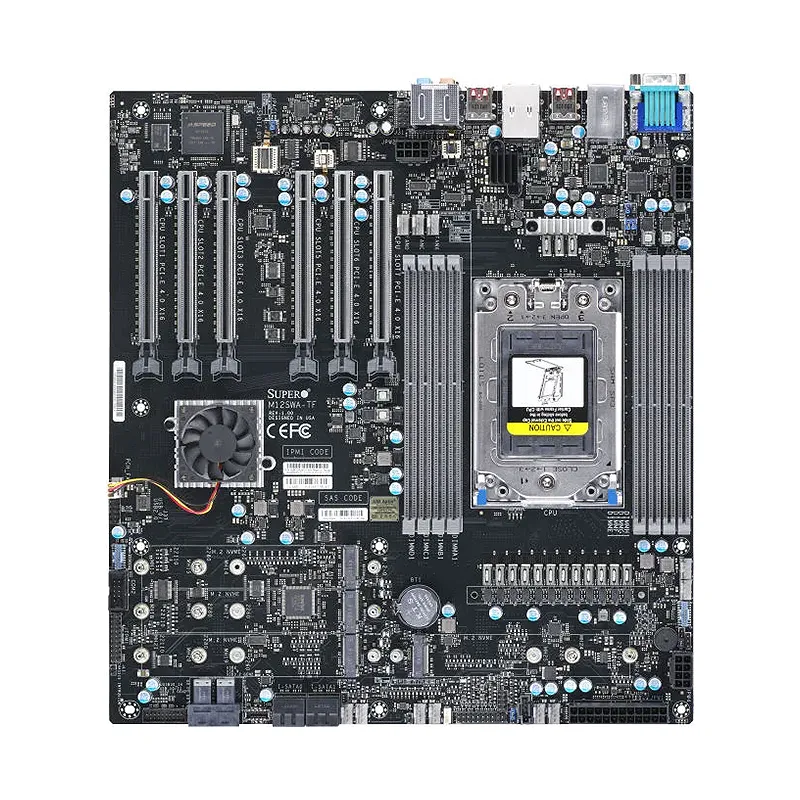

* NOTE: Image may not exactly match the product

Supermicro MBD-M12SWA-TF

The Supermicro MBD-M12SWA-TF is a high-performance server motherboard designed for AMD EPYC 7003 Series processors, supporting up to 64 cores and 8-channel DDR4-3200 memory (up to 4TB) for demanding workloads. Featuring 7 PCIe 4.0 x16 slots, dual 10G LAN ports, 8 SATA ports, and 3 M.2 slots, it delivers exceptional scalability for storage, networking, and GPU/accelerator deployments. Integrated IPMI enables remote management, while TPM 2.0 enhances security. Ideal for data centers, cloud, and HPC environments, its standout features include top-tier processing power, future-proof PCIe 4.0 bandwidth, and enterprise-grade reliability—making it a robust choice for scalable, high-efficiency infrastructure.

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Key Features

1.AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores

2.Up to 2TB (RDIMM) / 256GB (UDIMM), ECC/Non-ECC, Unbuffered, U-DIMM, R-DIMM, LRDIMM, and 3DS R-DIMM; 3200Mhz in 8 DIMM slots

3.6 PCI-E 4.0 x16 slots
M.2 Interface: 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10)
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
U.2 Interface: 2 U.2 sockets (Software RAID 0,1)

4.4 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10)

5.1x 10GBase-T LAN port,
1 GbE LAN port (shared with IPMI)

6.ASPEED AST2600 BMC graphics

7.1 USB 3.2 Gen2x2 port (Type C, 20Gbps),
5 USB 3.2 Gen2 ports
(4 type A + 1 front type C header),
5 USB 3.2 Gen1 ports
(3 type A + 2 via header),
2 USB 2.0 ports via header

8.1 COM port (rear),
TPM 2.0 header,
7.1 Channel HD Audio

PCI-Express

6 PCI-E 4.0 x16 slots

Graphics

ASPEED AST2600 BMCVGA connector is dedicated for IPMI

Cores

Up to 64 Cores

Audio

ALC4050H + ALC1220 7.1 Channel HD Audio

Network Controllers

10G LAN: Single LAN via Marvell AQC113C 10Gb controller1GbE LAN: Single LAN via via Intel i210AT controller (shared with IPMI)

M.2

1, 10 support, 22110Key: M-keySoftware RAID 0, 5, Interface: 4 PCI-E 4.0 x4Form factor: 2280

Chipset

AMD WRX80

DIMM Sizes

128GB, 16GB, 256GB, 32GB, 64GB, 8GB

BIOS Type

AMI 256MB Flash EEPROM

LAN

1 RJ45 10GBase-T LAN port1 RJ45 GbE LAN port (shared with IPMI)

USB

1 Type C header, 1 USB 3.2 Gen2x2 port (Type C, 1 via header)2 USB 2.0 via header, 10Gbps)5 USB 3.2 Gen1 ports (3 Type A, 20Gbps)5 USB 3.2 Gen2 ports (4 Type A

Form Factor

E-ATX

Memory Type

buffered and Un-buffered, ECC and Non-ECC, LRDIMM and 3DS R-DIMM MemoryDDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Mhz, R-DIMM, U-DIMM

Application

Server

IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC

Others

1 COM port (rear)1 TPM 2.0 header

VGA

1 VGA port (dedicated for IPMI)

Memory Voltage

1.2V

CPU

Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series ProcessorSocket sWRX8/SP3Supports CPU TDP up to 280W

SATA

4 SATA3 (6 Gbps) ports

Memory Capacity

8 DIMM slotsECC and Non-ECC, buffered and Un-buffered, LRDIMM and 3DS R-DIMM MemoryRDIMM up to 2TB, R-DIMM, U-DIMM, UDIMM up to 256GB8-channel memory bus

Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)

Dimensions

12" x 13" (30.48cm x 33.02cm)

U.2

1 support, Interface: 2 U.2 SocketsSoftware RAID 0
