PCI-Express | 1 PCI-E 3.0 x16 slot |
---|---|
Cores | 8 Core/16 Thread |
Network Controllers | 4x 1GbE with Intel I350-AM41 Realtek RTL8211E PHY (dedicated IPMI) |
M.2 | Interface: 1 PCI-E 3.0 x4Form factor: 2280Key: M-key |
DIMM Sizes | 128GB, 16GB, 32GB, 64GB, 8GB |
BIOS Type | AMI 128MB Flash EEPROM |
LAN | 4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
USB | 2 USB 3.0 ports6 USB 2.0 ports |
Form Factor | Mini-ITX |
Memory Type | 288-pin gold-plated DIMMs, DDR4 2666 MHz Registered ECC |
Application | Server |
IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
Others | 1 COM port header1 TPM 2.0 header |
VGA | 1 VGA port |
Memory Voltage | 1.2V |
CPU | Single AMD EPYC 3251 SoC Processor |
SATA | 4 SATA3 (6 Gbps) ports |
Memory Capacity | 4 DIMM slotsSupports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs2-channel memory bus |
Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
Dimensions | 6.7" x 6.7" (17cm x 17cm) |

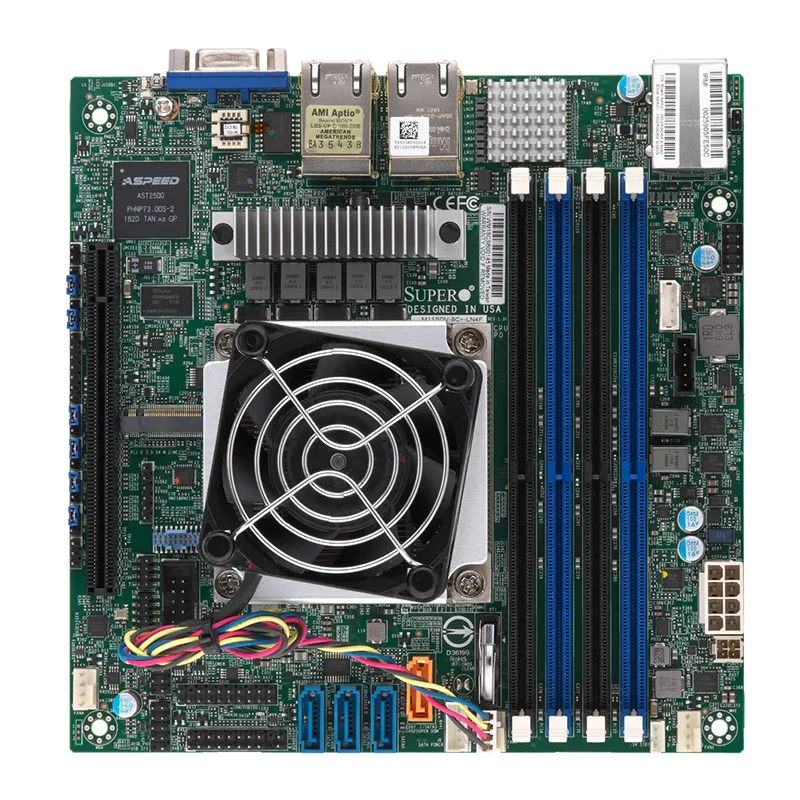

Supermicro MBD-M11SDV-8C+-LN4F
: Compact, high-performance server motherboard featuring an embedded AMD EPYC 3251 SoC (8-core/16-thread, up to 2.5GHz) for efficient power and space savings. Supports up to 256GB ECC DDR4 memory, dual 10G SFP+, and quad Gigabit Ethernet for robust networking. Includes PCIe 3.0 x16, M.2 NVMe, and SATA 3.0 for versatile storage/expansion. Mini-ITX form factor ideal for dense deployments, with enterprise-grade security (TPM 2.0, hardware root of trust) and remote management via IPMI 2.0. Combines scalability, reliability, and cutting-edge connectivity for cloud, edge, or data center applications.
Read More
$Quote1 Piece(MOQ)
SKU
MBD-M11SDV-8C+-LN4F
Categories AMD Motherboard, Server Motherboard, Wholesale Motherboards (Mainboards)
Brand: Supermicro
