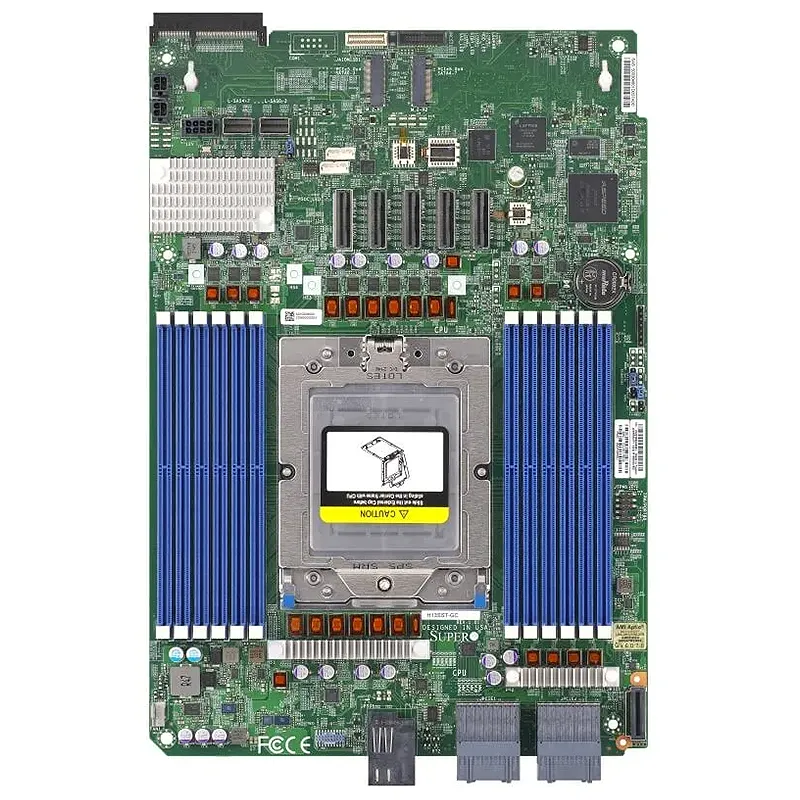

* NOTE: Image may not exactly match the product

Supermicro MBD-H13SST-GC

**Supermicro MBD-H13SST-GC: High-Performance Server Motherboard**
Designed for enterprise and data center workloads, the Supermicro MBD-H13SST-GC supports AMD EPYC 9004 Series processors (up to 128 cores), delivering unmatched compute density for AI, HPC, and cloud applications. Features include 24 DDR5 DIMM slots for high-speed memory scalability, six PCIe 5.0 x16 slots for ultra-fast storage/GPU expansion, and dual 10G LAN with OCP 3.0 support. Enhanced with advanced thermal design, IPMI remote management, and TPM security, it ensures reliability, energy efficiency, and seamless scalability for mission-critical environments. Ideal for demanding workloads requiring peak performance and future-proof infrastructure.

$Quote1 Piece(MOQ)

SKU MBD-H13SST-GC Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-H13SST-GC

Physical Stats

  • Form Factor
    Proprietary GrandTwin
  • Dimension
    8.53″ x 12.42″ (21.67cm x 31.55cm)

Processor

  • CPU
    AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
    Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
  • Core
    Up to 160 cores, 320 threads

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
  • Memory Type
    4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • SAS
    Broadcom 3808 SAS3 (12 Gbps) controller for 8 SAS3 (12 Gbps) ports
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers

Input / Output

  • TPM
    1 TPM Header
  • Others
    4 MCIO (PCIe 5.0 x8) Port(s)
    1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
    2 SlimSAS (x4) Port(s)

Expansion Slots

  • PCIe
    1 PCIe 4.0 x8 4C Slot
  • M.2
    M.2 Interface: 2 SATA/PCIe 4.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support

Management

  • Power Configurations
    ACPI Power Management, Power-on mode control for AC power loss recovery
BIOS Features

ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
M.2

M.2 Interface: 2 SATA/PCIe 4.0 x4Form Factor: 2280Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type

AMI 32MB SPI Flash EEPROM
Dimension

8.53" x 12.42" (21.67cm x 31.55cm)
PCIe

1 PCIe 4.0 x8 4C Slot
Form Factor

Proprietary GrandTwin
Memory Type

4800/6000 MT/s ECC DDR5 RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Others

4 MCIO (PCIe 5.0 x8) Port(s)1 MCIO (PCIe 5.0 x8/SATA3) Port(s)2 SlimSAS (x4) Port(s)
Memory Voltage

1.1V
CPU

AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
SAS

Broadcom 3808 SAS3 (12 Gbps) controller for 8 SAS3 (12 Gbps) ports
Memory Capacity

12 DIMM slotsUp to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

320 threads, Up to 160 cores
