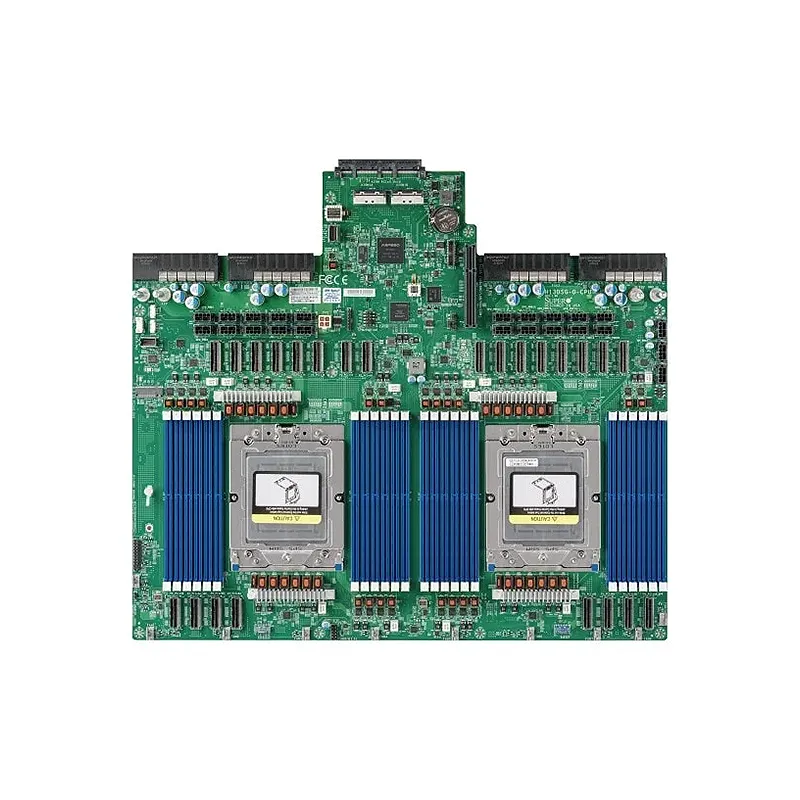

* NOTE: Image may not exactly match the product

Supermicro MBD-H13DSG-O-CPU

: Dual-socket server motherboard optimized for AMD EPYC 9004 Series CPUs (SP5 socket), featuring 24 DDR5 DIMM slots for high-speed memory, PCIe 5.0 expansion (x16 slots), and versatile storage (SATA, U.2). Includes dual 10G LAN, IPMI remote management, and E-ATX form factor. Delivers exceptional scalability, performance, and reliability for data centers, AI/ML, HPC, and cloud workloads. USP: Future-proof PCIe 5.0 support, dual-CPU architecture for massive core/thread counts, and enterprise-grade durability in demanding environments.

Read More

$Quote1 Piece(MOQ)

SKU MBD-H13DSG-O-CPU Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-H13DSG-O-CPU

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17″ x 14.7″ (43.18cm x 37.34cm)

Processor

  • CPU
    AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
    Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
  • Core
    Up to 320 cores, 640 threads

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 9TB 3DS ECC Registered RDIMM, DDR5-5200MT/s
  • Memory Type
    4800/5200 MT/s ECC DDR5 RDIMM (3DS) Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 9TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • SATA
    Asmedia ASM1061 controller for 2 SATA3 (6 Gbps) ports
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers

Input / Output

  • USB
    1 USB 2.0 port(s) (1 via header)
  • TPM
    1 TPM Header
  • Others
    20 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots

  • PCIe
    1 PCIe 5.0 x16 AIOM Networking Slot
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support

Management

  • Power Configurations
    ACPI Power Management, Power-on mode control for AC power loss recovery
BIOS Features ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
TPM 1 TPM Header
M.2 M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset System on Chip
DIMM Sizes 128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type AMI 32MB SPI Flash EEPROM
Dimension 17" x 14.7" (43.18cm x 37.34cm)
PCIe 1 PCIe 5.0 x16 AIOM Networking Slot
USB 1 USB 2.0 port(s) (1 via header)
Form Factor Proprietary
Memory Type 4800/5200 MT/s ECC DDR5 RDIMM (3DS)
Application Server
IPMI ASPEED AST2600 BMC
Others 20 MCIO (PCIe 5.0 x8) Port(s)
Memory Voltage 1.1V
CPU AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 series drop-in support requires board revision 2.x)Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
SATA Asmedia ASM1061 controller for 2 SATA3 (6 Gbps) ports
Memory Capacity 24 DIMM slotsUp to 9TB 3DS ECC Registered RDIMM, DDR5-5200MT/s
Error Detection Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core 640 threads, Up to 320 cores
