| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 1 PCI-E 4.0 x16 Left Riser Slot1 PCI-E 4.0 x16 Right Riser Slot1 PCI-E 4.0 x16 SIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 1 PCI-E 4.0 x16 SIOM LAN Networking Slot1 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 2242Key: M-Key, 2260, 2280, Interface: 4 SATA/PCI-E 4.0 x4Form Factor: 22110 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via SIOM1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear)1 USB 2.0 port (Type A) |
| Form Factor | Proprietary TwinPro |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 2 COM ports2 SuperDOM power connectors1 TPM 1.2/2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 6 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 6.8" x 18.86" |

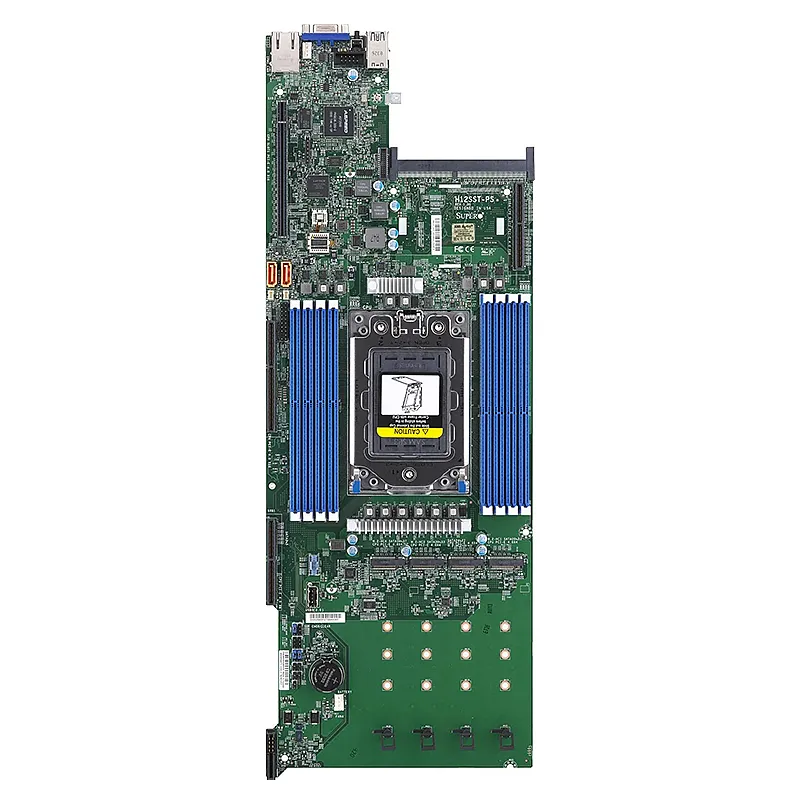

Supermicro MBD-H12SST-PS
**Supermicro MBD-H12SST-PS**: A high-performance single-socket server motherboard built for AMD EPYC 7003 Series processors (Zen 3), delivering exceptional compute density and energy efficiency. Key features include support for 8-channel DDR4-3200MHz memory (up to 4TB), PCIe 4.0 connectivity with 128 lanes for NVMe storage, GPUs, or accelerators, and dual 10G LAN ports with optional OCP 3.0 support. Integrated IPMI 2.0 enables remote management, while multiple M.2, SATA, and U.2 slots ensure flexible storage scalability. Optimized for cloud, AI, and data-intensive workloads, its single-socket design reduces costs without compromising performance, backed by Supermicro’s enterprise-grade reliability and thermal efficiency. Ideal for businesses seeking power, expansion, and value in a streamlined server solution.
