| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 5 PCI-E 4.0 x162 PCI-E 4.0 x8 |
| Cores | Up to 64 Cores |
| Network Controllers | Dual gigabit LAN via Broadcom BCM57201 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 PCI-E 4.0 x4Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 6 USB 3.0 ports |
| Form Factor | ATX |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (rear)2 SATA DOM power connectors1 TPM 2.0 header |
| VGA | 1 VGA port |
| SATA/NVMe Hybrid | 8 SATA3 or 2 NVMe via single SlimSAS x8 |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 8 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 12" x 9.6" (30.5cm x 24.4cm) |

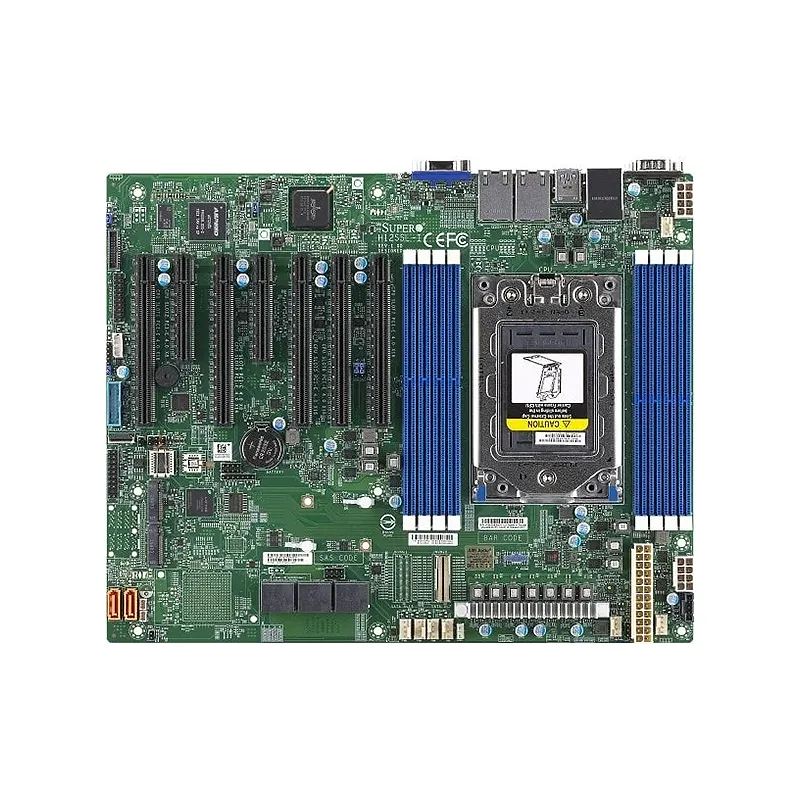

Supermicro MBD-H12SSL-i-O
**Supermicro MBD-H12SSL-i-O**: A high-performance server motherboard designed for AMD EPYC 7003 series processors, delivering scalability and reliability for data centers, cloud, and enterprise workloads. Key features include support for single-socket SP3 CPUs, 8-channel DDR4-3200 memory (up to 2TB), and three PCIe 4.0 x16 slots for expansive storage/GPU connectivity. Dual 10G LAN ports ensure high-speed networking, while integrated IPMI 2.0 with dedicated LAN and ASPEED AST2600 BMC enable robust remote management. Offers M.2 NVMe, SATA 3.0, and TPM security support. **Benefits**: Exceptional performance for AI, HPC, and virtualization; future-proof PCIe 4.0 bandwidth; energy-efficient design. **USPs**: Optimized EPYC integration, enterprise-grade manageability, and versatile expansion in a compact form factor, ideal for scalable, secure infrastructure.
