| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | ATX |
| Products Status | New |
| Socket | LGA-4189 |
| USB | 6 USB 3.0 ports |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM8-channel memory bus |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Memory Voltage | 1.2V |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| SATA | 8 SATA3 (6 Gbps) ports |
| Network Controllers | Dual 10GBase-T LAN via Broadcom BCM574161 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 PCI-E 4.0 x4Form Factor: 2280 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| PCIe | 5 PCIe 4.0 x162 PCIe 4.0 x8 |
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
| Cores | Up to 64 Cores |
| LAN | Dual 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN port |
| VGA | 1 VGA port |

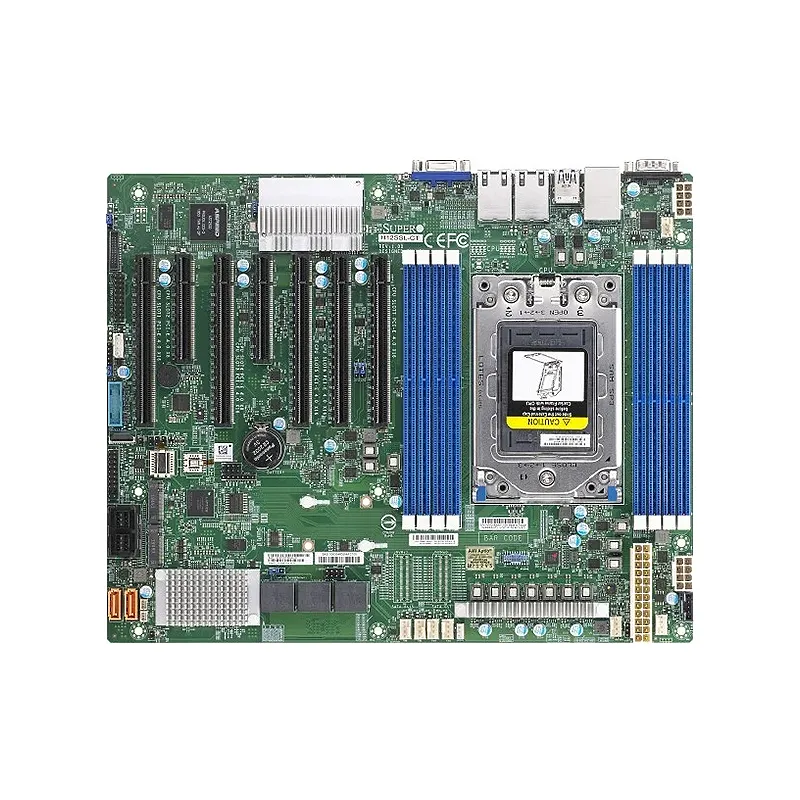

Supermicro MBD-H12SSL-CT-O
Supermicro MBD-H12SSL-CT-O is a high-performance server motherboard designed for data centers and enterprise environments. Built for AMD EPYC 7003 series processors (single/dual SP3 socket), it delivers exceptional scalability and compute density with PCIe 4.0 support, enabling ultra-fast data transfer for GPUs, NVMe, and networking. Features include 8 DDR4 DIMM slots (3200+ MHz), 6 SATA3 ports, dual M.2 slots, and 3 PCIe 4.0 x16 expansion slots. Integrated dual 10G LAN ensures high-speed connectivity, while an onboard BMC chip enables remote management via IPMI for seamless monitoring and maintenance. Optimized for reliability and security, it includes TPM 2.0 support and is tailored for cloud, storage, and HPC workloads. Its compact form factor, energy efficiency, and robust I/O make it ideal for scalable, high-performance infrastructure deployments.
$Quote5 pcs (MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
