| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | Proprietary |
| Products Status | New |
| Socket | LGA-4189 |
| USB | 2 USB 3.0 ports (rear) |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Memory Voltage | 1.2V |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Network Controllers | LAN Networking provided via AIOMDedicated IPMI via Realtek RTL8211F PHY |
| M.2 | 22110Key: M-Key, 2260, 2280, Interface: 2 PCI-E 4.0 x4Form Factor: 2242 |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| PCIe | 3 PCIe 4.0 x16 Riser Slots9 PCIe 4.0 x8 SlimSAS2 PCIe 4.0 x4 SlimSAS1 PCIe 4.0 x16 AIOM LAN Networking Slot |
| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
| Cores | Up to 64 Cores |
| LAN | Provided via AIOM1 RJ45 Dedicated IPMI LAN port |
| VGA | 1 VGA port (rear) |
| NVMe | 2 NVMe via SlimSAS |

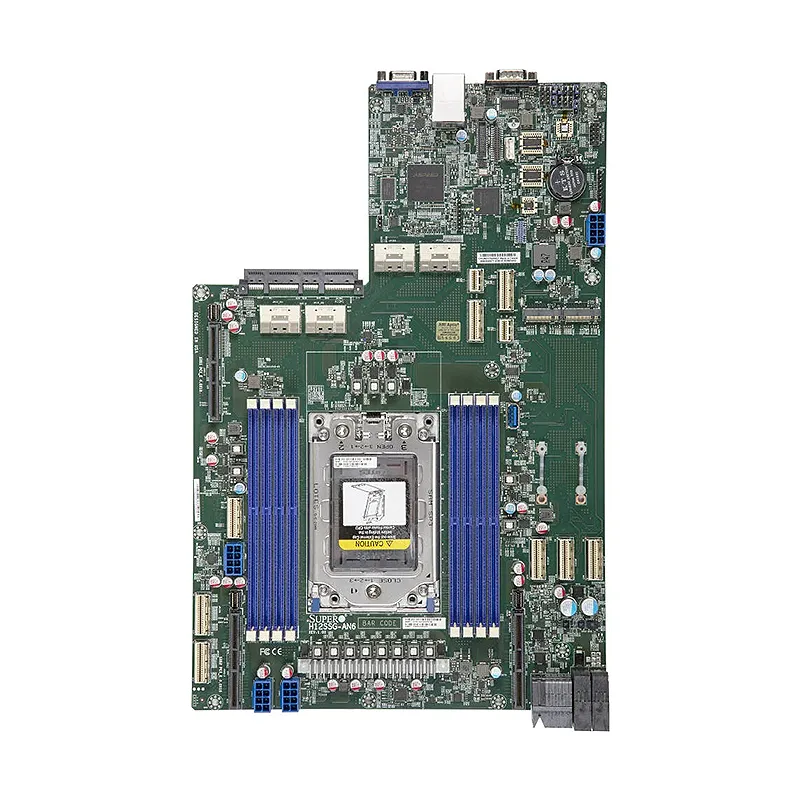

Supermicro MBD-H12SSG-AN6
The Supermicro MBD-H12SSG-AN6 is a high-performance server motherboard designed for data centers, cloud infrastructure, and enterprise environments. Built for AMD EPYC 7003 series processors (SP5 socket), it supports single or dual CPUs, enabling exceptional scalability and compute density. Key features include 24 DDR4 DIMM slots for up to 6TB memory, six PCIe 4.0 x16 slots for high-speed GPUs/NVMe storage, eight SATA ports, four M.2 slots, and dual 10G LAN ports for rapid data transfer. Integrated ASPEED AST2600 BMC ensures robust remote management, enhancing reliability and uptime. Ideal for HPC, AI, and virtualization workloads, its USP lies in unmatched expandability, cutting-edge PCIe 4.0 connectivity, and enterprise-grade remote control, making it a top choice for demanding, scalable server deployments.
