| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 1 PCI-E 4.0 x16 Right Riser Slot1 PCI-E 4.0 x16 Left Riser Slot1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 1 PCI-E 4.0 x16 AIOM LAN Networking SlotATEN IPMI (Dedicated) from ASPEED AST2600 BMC |
| M.2 | 22110Key: M-Key, 2280, Interface: 2 SATA/PCI-E 4.0 x4Form Factor: 2260 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via AIOM1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 internal NVMe ports |
| USB | 2 USB 3.0 ports (front) |
| Form Factor | Proprietary FatTwin |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port (header)1 SuperDOM power connector1 TPM 1.2/2.0 header |
| VGA | 1 VGA port (front) |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 12 SATA3 (6 Gbps) ports |
| Memory Capacity | 16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 8.441" x 18.724" |

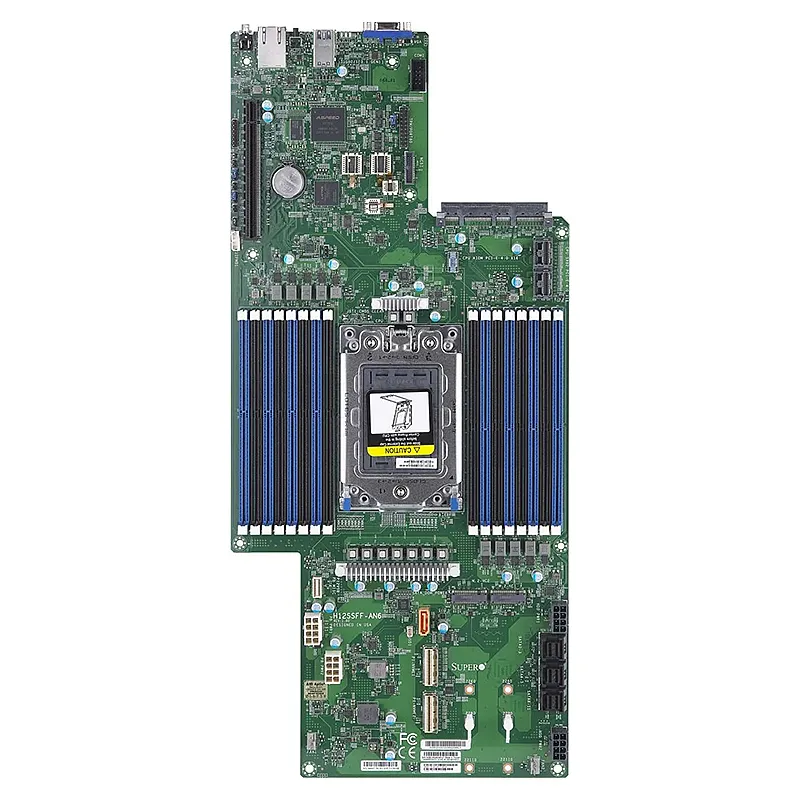

Supermicro MBD-H12SSFF-AN6
**Supermicro MBD-H12SSFF-AN6**: A high-performance server motherboard designed for AMD EPYC 7003 Series processors, optimized for cloud, enterprise, and HPC workloads. Key features include PCIe 4.0 support (up to 128 lanes) for ultra-fast data transfer, 8-channel DDR4-3200 memory (up to 4TB), and dual 10Gbps LAN with OCP 3.0 flexibility. Compact SSI-EEB form factor maximizes density in 1U/2U systems, while integrated IPMI ensures remote management. Offers scalable storage via 6x SATA3, 4x NVMe, and M.2 slots. Ideal for AI, virtualization, and data-intensive tasks, combining cutting-edge performance, energy efficiency, and reliability in space-constrained environments.
