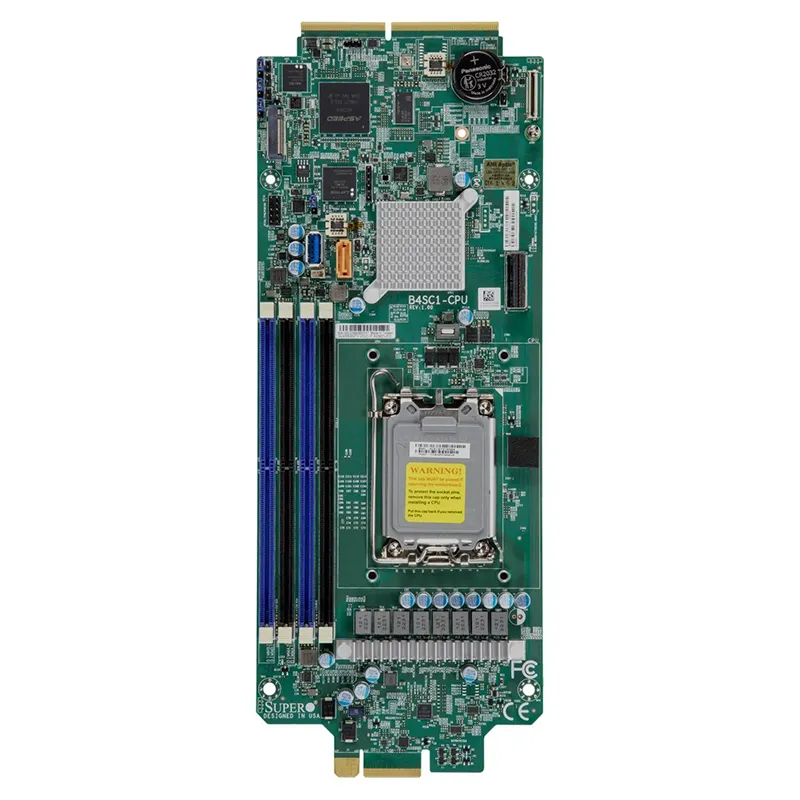

Supermicro MBD-B4SC1-CPU

Supermicro MBD-B4SC1-CPU is a high-performance server motherboard designed for enterprise and data center applications. It supports Intel Xeon E-2100 processors, delivering robust computing power for demanding workloads. Key features include dual Gigabit LAN ports, PCIe 3.0 expansion slots, and up to 64GB DDR4 ECC memory for enhanced reliability and scalability. Integrated IPMI 2.0 enables remote management, ensuring seamless monitoring and control. With support for SATA/NVMe storage and a compact form factor, it optimizes space efficiency without compromising performance. Ideal for SMBs, cloud services, and edge computing, its USP lies in enterprise-grade durability, flexible configuration options, and energy-efficient design, making it a cost-effective solution for scalable infrastructure needs.

Read More

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-B4SC1-CPU

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.8″ x 12.6″ (12.192cm x 32.004cm)

Processor

  • CPU
    Intel Xeon E-2400/Pentium* Processor
    Single Socket V0 (FCBGA-1744) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
  • Memory Type
    4400/4000/3600 MT/s
  • DIMM Sizes
    8GB, 16GB, 32GB
  • Memory Voltage
    1.1V
  • Error Detection
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C266
  • Network Controllers
    AIOM for LAN

Input / Output

  • SATA
    1 SATA3 (6Gbps) port(s)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 chip onboard

Expansion Slots

  • PCIe
    1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR,
    1 PCIe 4.0 x8 AIOM, Up to 2x 2.5″ SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8
    Plug and Play (PnP)
    PCI FW 3.3

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism
BIOS Features ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3
TPM 1 TPM Header
Network Controllers AIOM for LAN
M.2 22110Key: M-Key, M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280
Chipset Intel C266
DIMM Sizes 16GB, 32GB, 8GB
BIOS Type AMI 32MB AMI UEFI
Dimension 4.8" x 12.6" (12.192cm x 32.004cm)
PCIe 1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR, Up to 2x 2.5" SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC
Form Factor Proprietary
Memory Type 4400/4000/3600 MT/s
Application Server
Memory Voltage 1.1V
CPU CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported
Hardware Trusted Platform Module (TPM) 2.0
SATA 1 SATA3 (6Gbps) port(s)
Memory Capacity 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Error Detection Detects double-bit errors (using ECC memory)
Core Up to 8 cores
