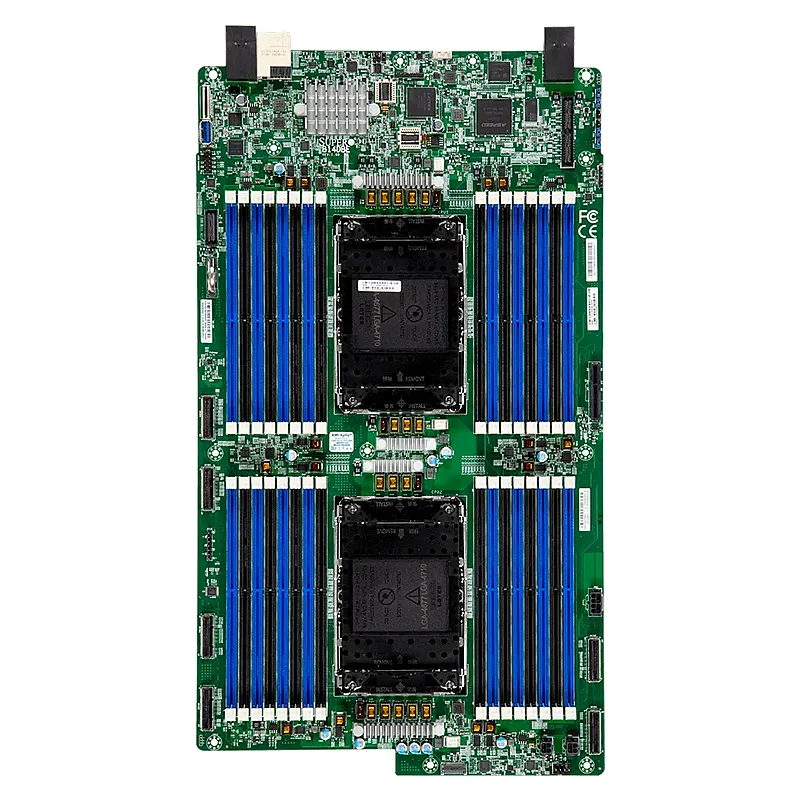

Supermicro MBD-B14DBE

**Supermicro MBD-B14DBE**
A high-performance, dual-socket server motherboard engineered for AMD EPYC 9004 Series “Genoa” processors, delivering scalable compute power for enterprise, cloud, and AI/ML workloads. Key features include 24 DDR5 DIMM slots (up to 6TB memory), 7 PCIe 5.0 slots (including OCP 3.0 support), and dual 10G LAN ports for rapid data transfer. Optimized for flexibility with NVMe/SATA storage options, IPMI 2.0 remote management, and TPM 2.0 security. Ideal for data centers requiring maximum core density (up to 192 cores), future-proof I/O bandwidth, and energy efficiency in a compact E-ATX form factor. USP: Unmatched scalability, cutting-edge PCIe 5.0 infrastructure, and robust reliability for mission-critical applications.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-B14DBE Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-B14DBE

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17.01″ x 9.57″ (43.22cm x 24.32cm)

Processor

  • CPU
    Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 144 (E) cores

System Memory

  • Memory Capacity
    32 DIMM slots
    Up to 8TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
  • DIMM Sizes
    8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
  • Network Controllers
    Dual LAN with Intel Ethernet Controller E810-XXVAM2

Input / Output

  • USB
    1 USB 3.1 Gen1 port(s) (1 type A)
  • TPM
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    6 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 5.0 x4
    Form Factor: 2280
    Key: M-Key
    M.2 support requires an optional M.2 adapter card

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM

1 TPM TPM 2.0 onboard
Network Controllers

Dual LAN with Intel Ethernet Controller E810-XXVAM2
M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280Key: M-Key
DIMM Sizes

128GB, 16GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB, 8GB
BIOS Type

AMI 64MB AMI UEFI
Dimension

17.01" x 9.57" (43.22cm x 24.32cm)
PCIe

6 PCIe 5.0 x8 MCIO connector
USB

1 USB 3.1 Gen1 port(s) (1 Type A)
Form Factor

Proprietary
Memory Type

6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application

Server
Memory Voltage

1.1V
CPU

3 UPI up to 24 GT/s, CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported
Memory Capacity

32 DIMM slotsUp to 8TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 144 (E) cores
