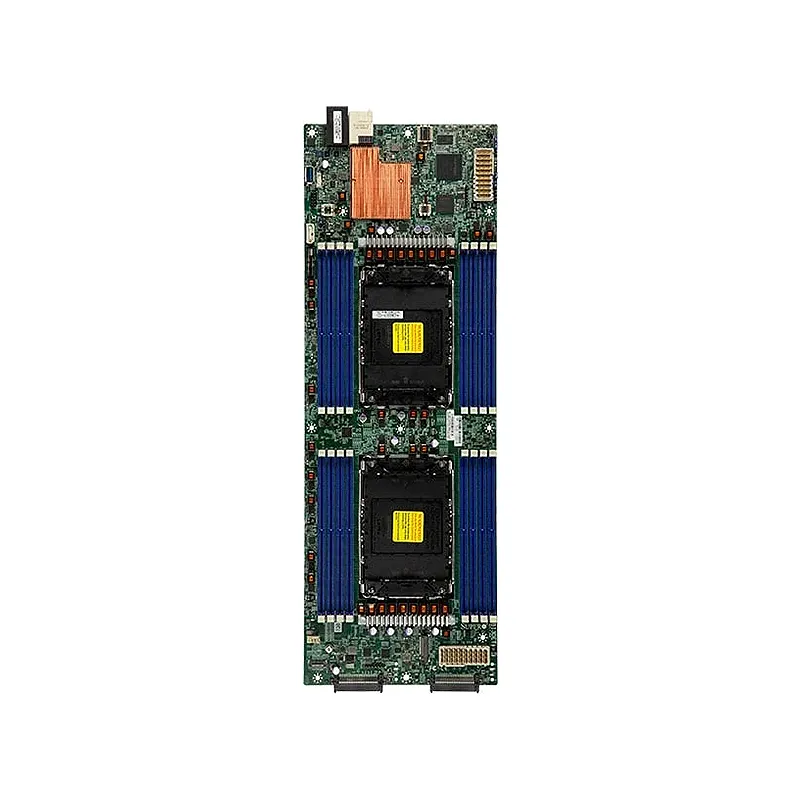

Supermicro MBD-B13DET

**Supermicro MBD-B13DET**: A high-performance server motherboard engineered for demanding enterprise and data center workloads. Supports dual 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP) with up to 270W TDP, delivering exceptional compute power for AI, HPC, and virtualization. Features 16 DDR4-3200 DIMM slots (up to 4TB RAM) for massive memory bandwidth and 7 PCIe 4.0 x16 slots for scalable expansion with GPUs, accelerators, or storage. Includes dual 10G Ethernet, OCP 3.0 networking flexibility, and 8 SATA ports for versatile connectivity. Integrated IPMI 2.0 ensures remote management, while optimized thermal design and TPM 2.0 enhance reliability and security. Combines cutting-edge PCIe 4.0 bandwidth, enterprise-grade redundancy, and Supermicro’s proven durability, making it ideal for scalable, future-ready infrastructure. **USP**: Unmatched performance, scalability, and adaptability for cloud, storage, and compute-intensive applications.

$Quote1 Piece(MOQ)

SKU MBD-B13DET Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-B13DET

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    6.3″ x 18.3″ (16cm x 46.48cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
    Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
  • DIMM Sizes
    16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
    RDIMM: Up to 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 2 SATA3 ports
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN

Input / Output

  • USB
    1 USB 3 port(s) (1 type A)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 5.0 x16 Mezzanine card connector
  • M.2
    M.2 Interface: 1 PCIe 5.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 2.8/3.5
    UEFI 2.8A
    Plug and Play (PnP)
    PCI FW 3.2
BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
M.2

M.2 Interface: 1 PCIe 5.0 x4Form Factor: 2280Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB
BIOS Type

AMI 32MB AMI UEFI
Dimension

6.3" x 18.3" (16cm x 46.48cm)
PCIe

2 PCIe 5.0 x16 Mezzanine card connector
USB

1 USB 3 port(s) (1 type A)
Form Factor

Proprietary
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware

Trusted Platform Module (TPM) 2.0
SATA

Intel C741 controller for 2 SATA3 ports
Memory Capacity

16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 64 cores
