General Information :

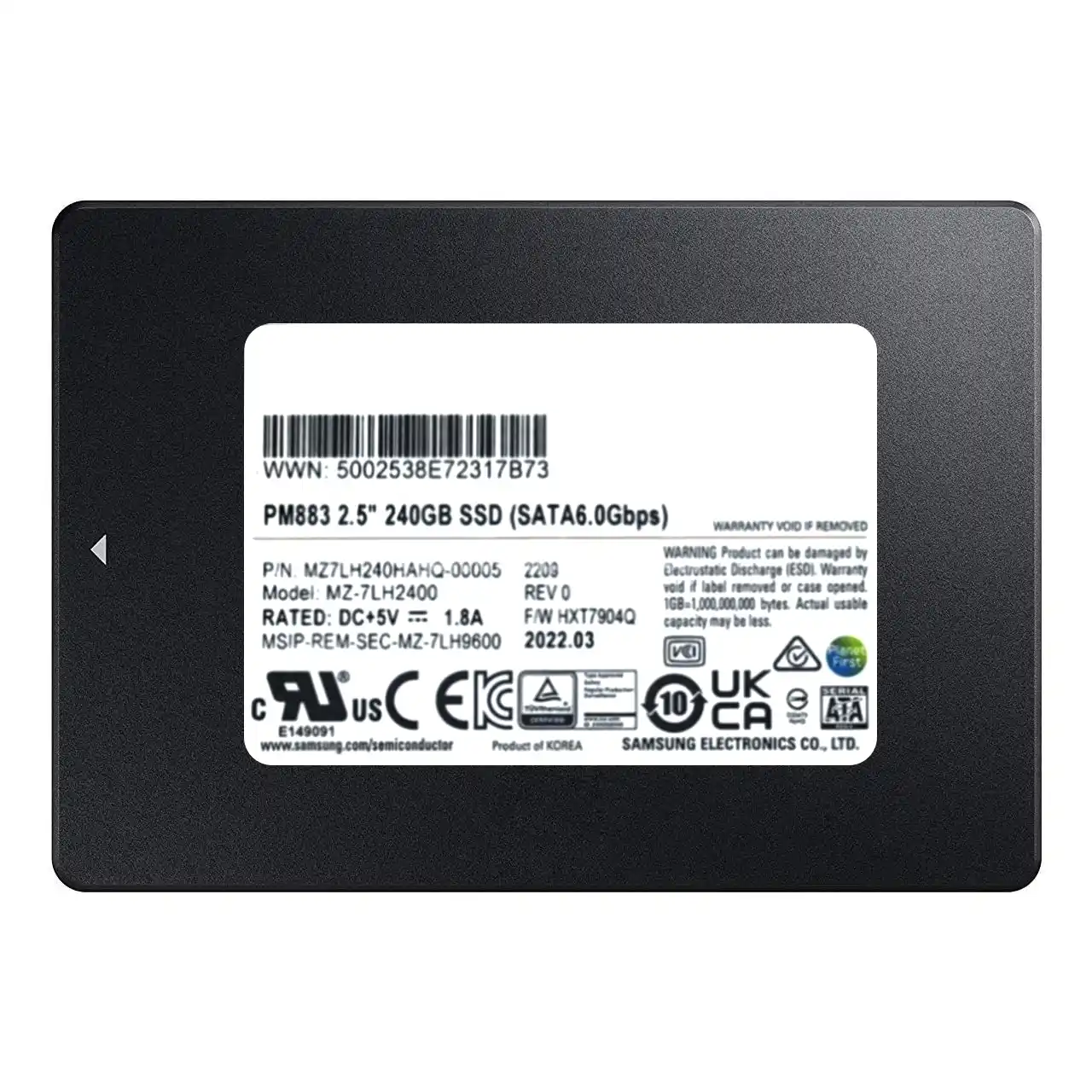

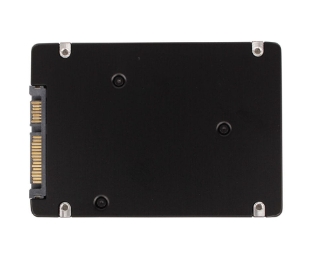

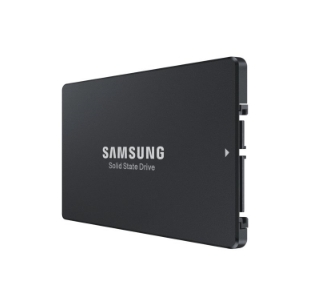

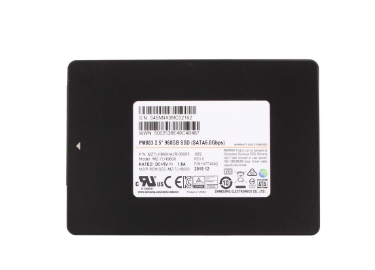

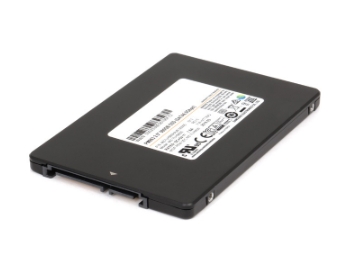

- Manufacturer : SAMSUNG
- Manufacturer Part Number : MZ7LH240HAHQ-00005
- Product Series : Pm883
- Product Type : Solid State Drive – Internal
Technical Information :
- Type : Solid State Drive
- Capacity : 240gb
- Form Factor : 2.5
- Interface : Sata 6gb/s
- Hardware Encryption : Yes
- Encryption Algorithm : 256-bit Aes
- Nand Flash Memory Type : SAMSUNG V-nand 3-bit Mlc
- Bytes Per Sector : 512
- Features : Native Command Queuing (ncq), Trim Support, Power Disable Pin (pin3)
Performance :
- Drive Writes Per Day (dwpd) : 1.3
- Ssd Endurance : 341 Tb
- Drive Transfer Rate : 600 Mb/s (external)
- Internal Data Rate : 550 Mb/s (read) / 320 Mb/s (write)
- 4kb Random Read : 98000 Iops
- 4kb Random Write : 14000 Iops
Expansion & Connectivity :
- Interfaces : Sata 6gb/s
- Compatible Bay : 2.5
Environmental Parameters :
- Min Operating Temperature : 32 °f
- Max Operating Temperature : 158 °f
- Min Storage Temperature : -40 °f
- Max Storage Temperature : 185 °f
- Humidity Range Operating : 5 – 95% (non-condensing)
- Shock Tolerance (non-operating) : 1500 G @ 0.5 Ms Half-sine
- Vibration Tolerance (non-operating) : 20 G @ 20-2000 Hz
- Physical Characteristics :
- Dimensions (wxdxh) : 2.7 In X 3.9 In X 0.3 In
- Width : 2.7 In
- Depth : 3.9 In
- Height : 0.3 In
- Weight : 2.47 Oz
