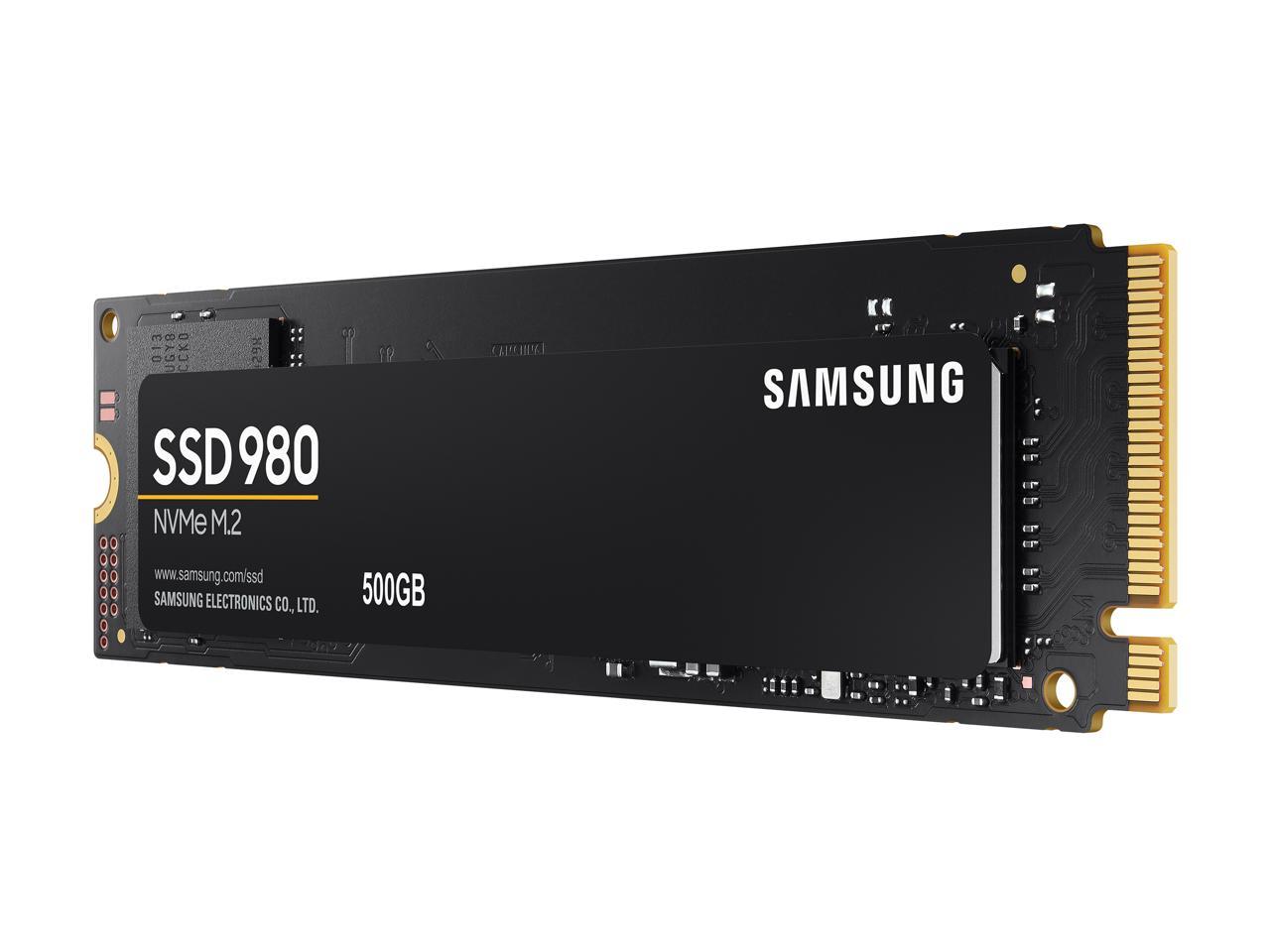

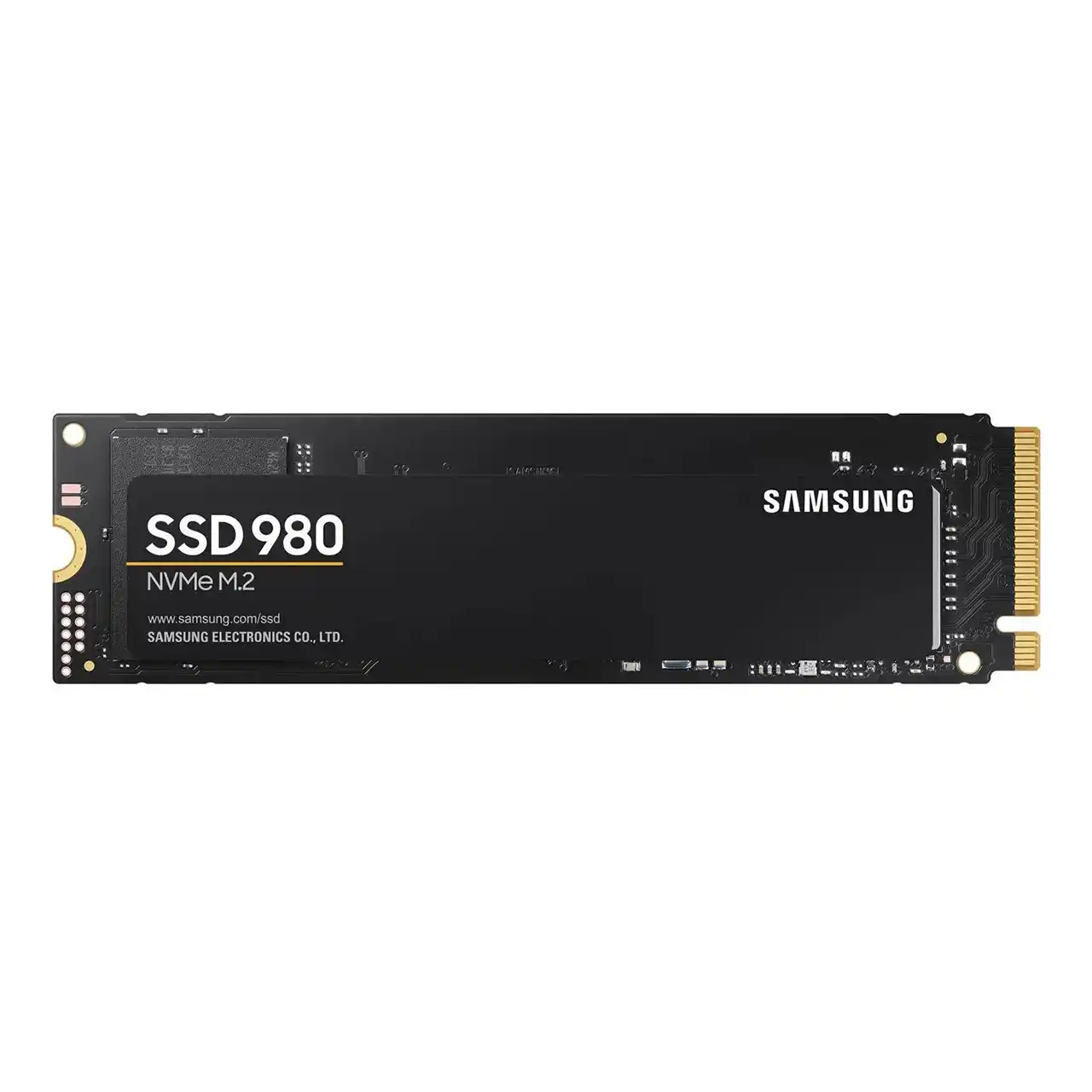

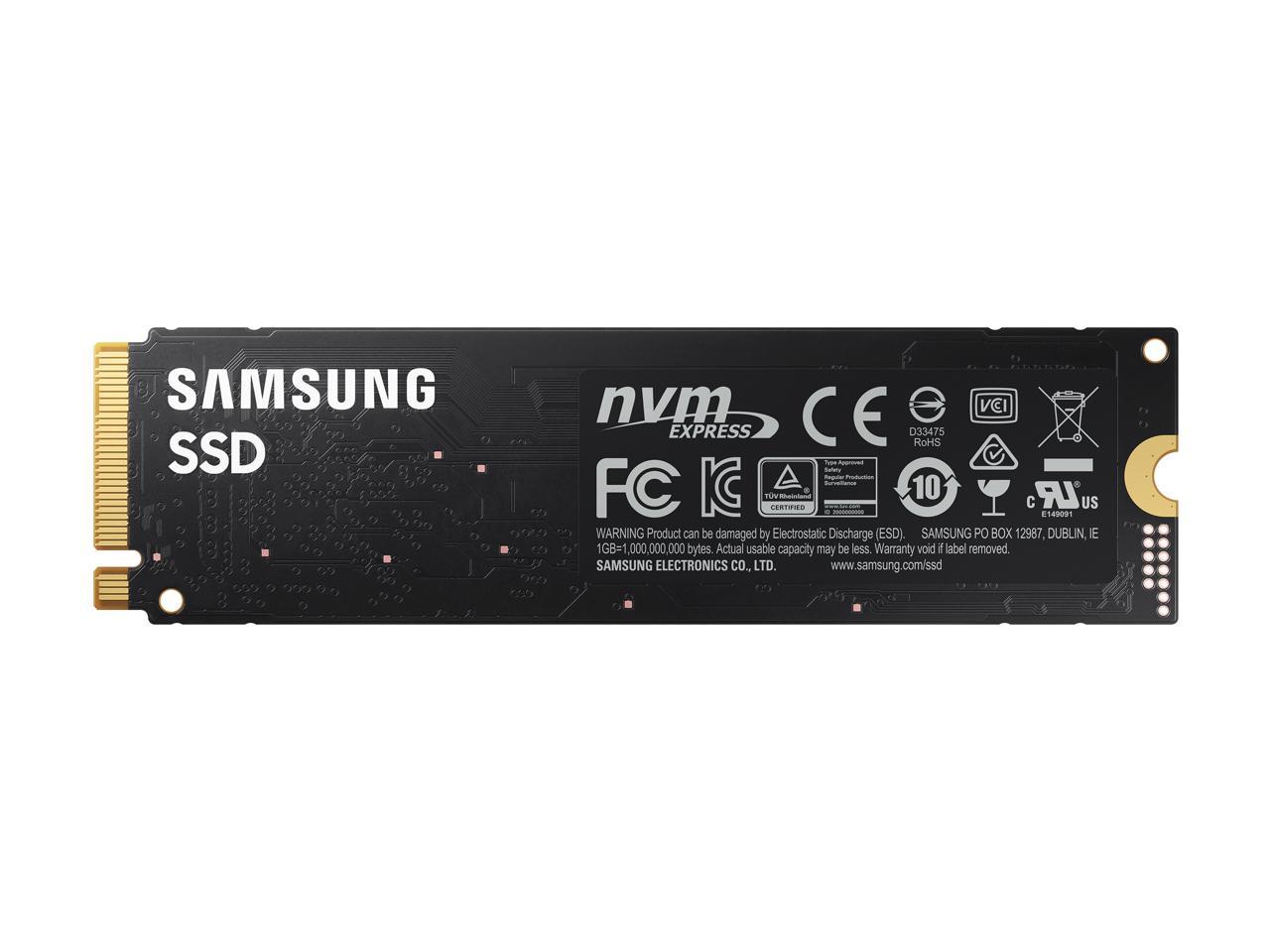

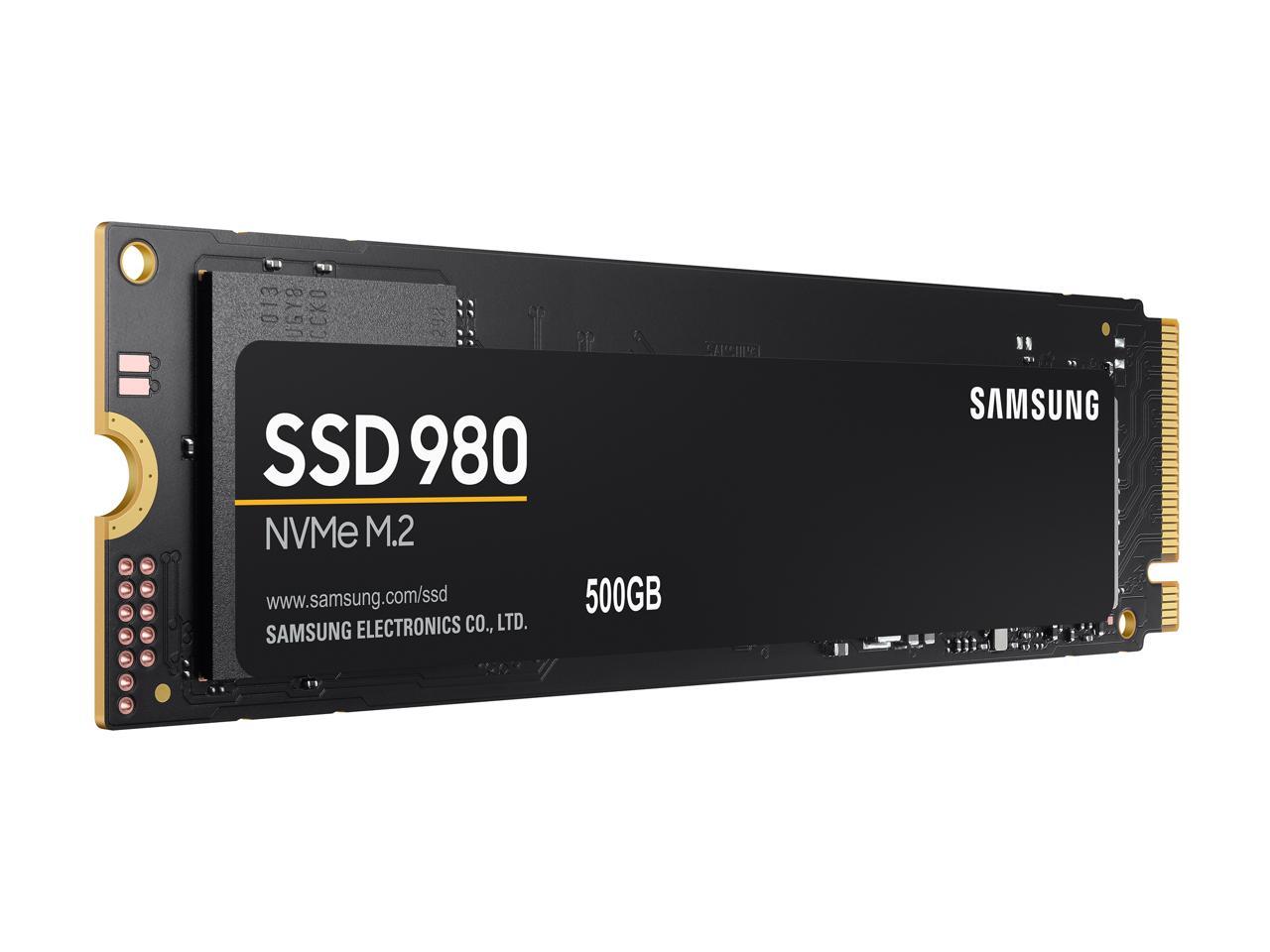

SAMSUNG 980 M.2 2280 500GB PCI-Express 3.0 x4, NVMe 1.4 V-NAND MLC Internal Solid State Drive (SSD) MZ-V8V500B/AM

UPGRADE TO IMPRESSIVE NVMe SPEED Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is a smart choice for outstanding SSD performance
PACKED WITH SPEED 980 delivers value, without sacrificing sequential read/write speeds up to 3,100/2,600 MB/s
KEEP MOVING WITH FULL POWER MODE Keep your SSD running at its peak with Full Power Mode, which drives continuous and consistent high performance
RELIABLE THERMAL CONTROL 980 uses nickel coating to help manage the controller’s heat level and a heat spreader label to deliver effective thermal control of the NAND chip
SMART THERMAL SOLUTION Embedded with Samsung’s cutting edge thermal control algorithm, 980 manages heat on its own to deliver durable and reliable performance, while minimizing performance fluctuations during extended usage

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 980
Model	MZ-V8V500B/AM
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	500GB
Memory Components	V-NAND MLC
Interface	PCI-Express 3.0 x4, NVMe 1.4
Controller	Pablo
Encryption	AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Max Sequential Read	Up to 3100 MBps
Max Sequential Write	Up to 2600 MBps
4KB Random Read	QD1: 17,000 IOPS, QD32: 400,000 IOPS
4KB Random Write	QD1: 54,000 IOPS, QD32: 470,000 IOPS
Terabytes Written (TBW)	300TB
MTBF	1,500,000 hours
Features	– Full Power Mode through Magician 6.3 allows the 980 to run at peak level for nonstop for a consistent high performance, – Host Memory Buffer (HMB) links DRAM in the host directly to the 980 to overcome performance restrain from DRAMless, – Intelligent TurboWrite 2.0 maximize full potential performance with enlarged TurboWrite region up to 5.5 times, – Power consumption is reduced up to 32% and power efficiency is improved up to 56% vs. 970 EVO, – Solid performance with Seq. Read/Write speeds up to 3,100/2,600 MB/s, – Thermal control solution provides 50% less heat vs. the 970 EVO, – Uncompromising endurance with reliability up to 300TBW, OPTIMIZED EFFICIENCY, Proven Reliability, SOLID PERFORMANCE
Power Consumption (Idle)	Max. 45 mW
Power Consumption (Active)	4.3W
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.38mm
Width	22.15mm
Depth	80.15mm
