- INNOVATIVE V-NAND TECHNOLOGY: Powered by Samsung V-NAND Technology, the 970 EVO Plus SSD’s NVMe interface (PCIe Gen 3.0 x4 NVMe 1.3) offers enhanced bandwidth, low latency, and power efficiency ideal for tech enthusiasts, high end gamers, and 4K & 3D content designers
- BREAKTHROUGH READ WRITE SPEEDS: Sequential read and write performance levels of up to 3,500 MB/s and 3,300 MB/s, respectively; Random Read (4KB, QD32): Up to 620,000 IOPS Random Read
- PERFORMANCE OPTIMIZATION AND DATA SECURITY: Seamless cloning and file transfers with Samsung Magician Software, the ideal SSD management solution for performance optimization and data security with automatic firmware updates
- SUPERIOR HEAT DISSIPATION: Samsung’s Nickel-coated controller and Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops
- 1200 TBW (Terabytes Written)

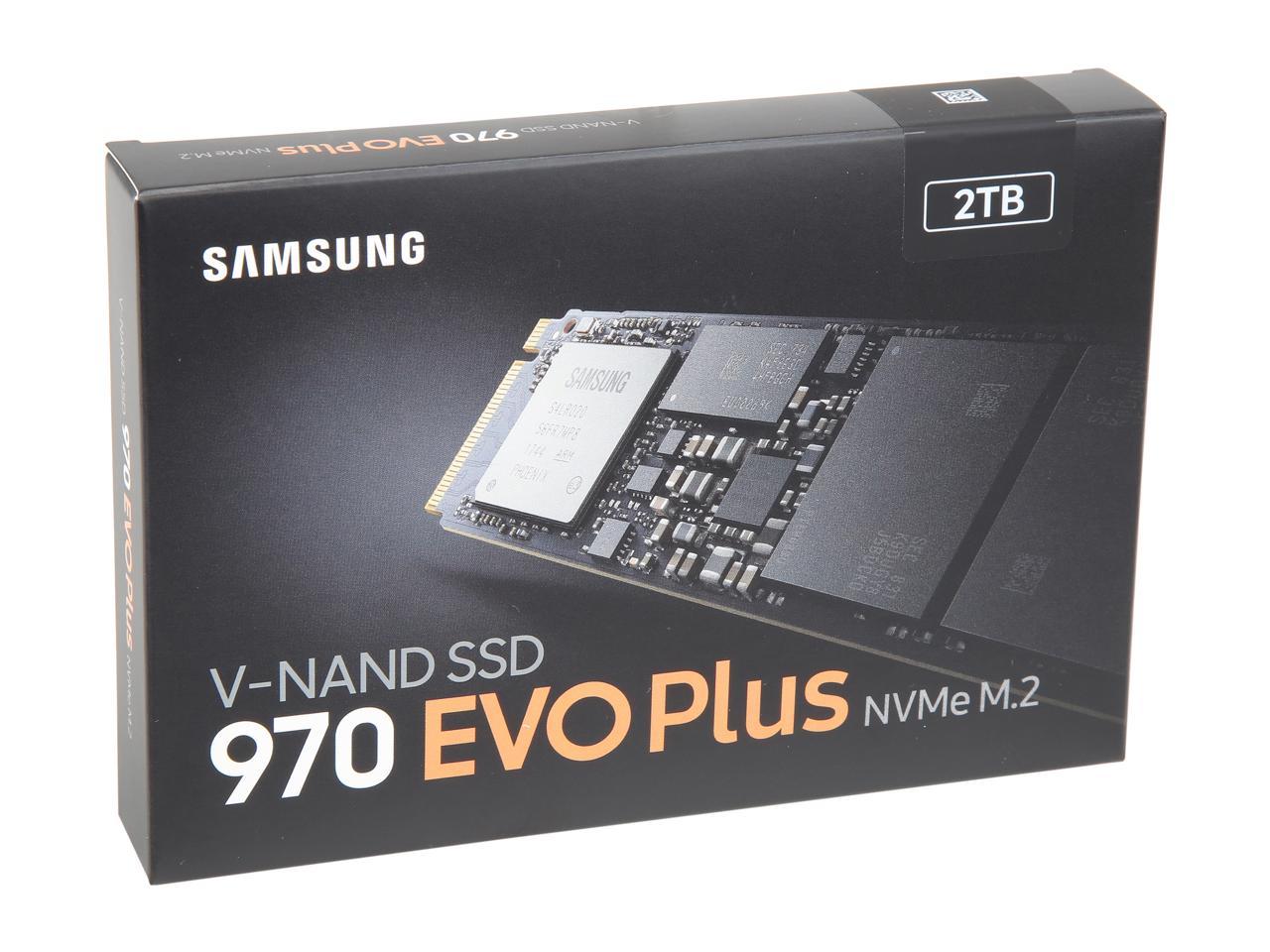

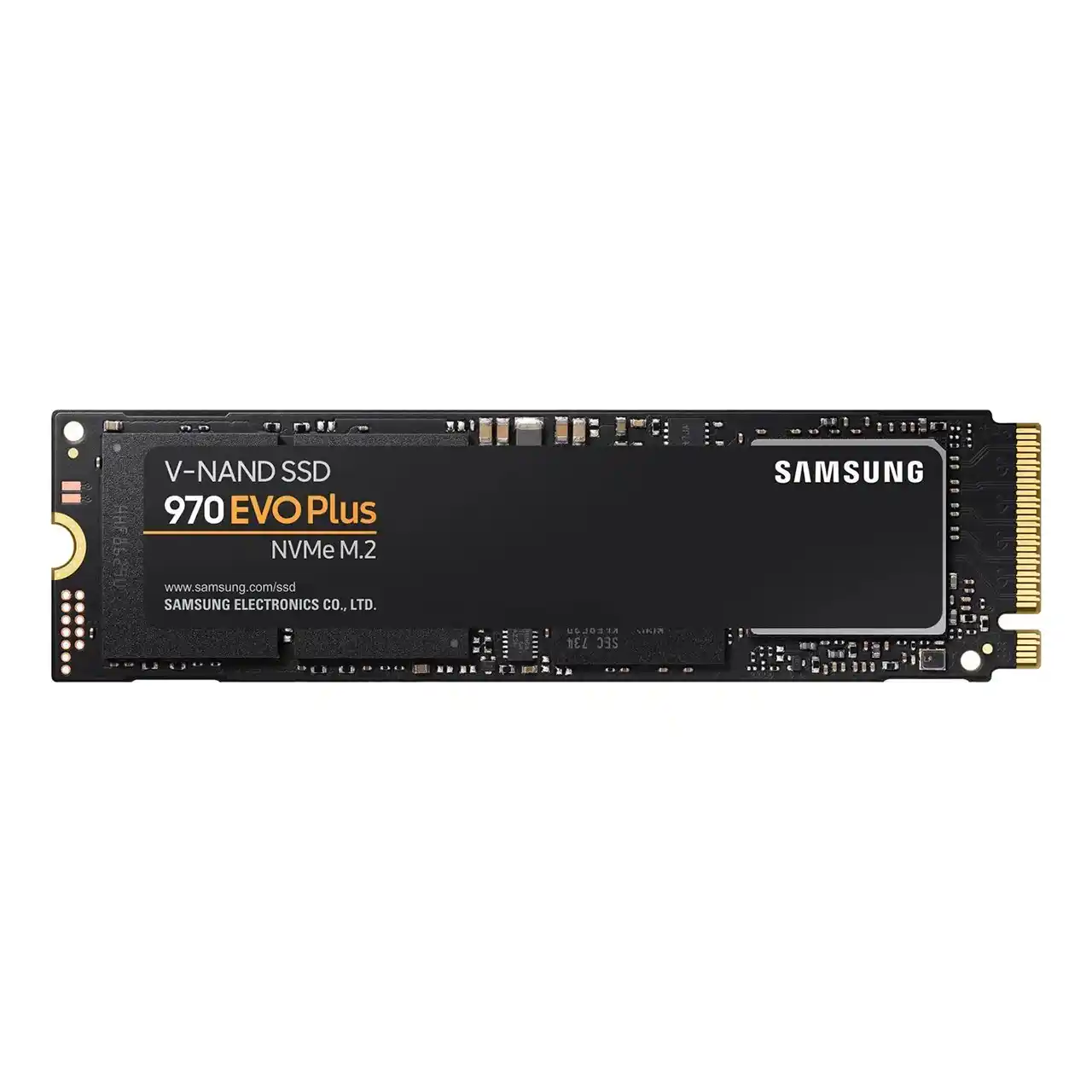

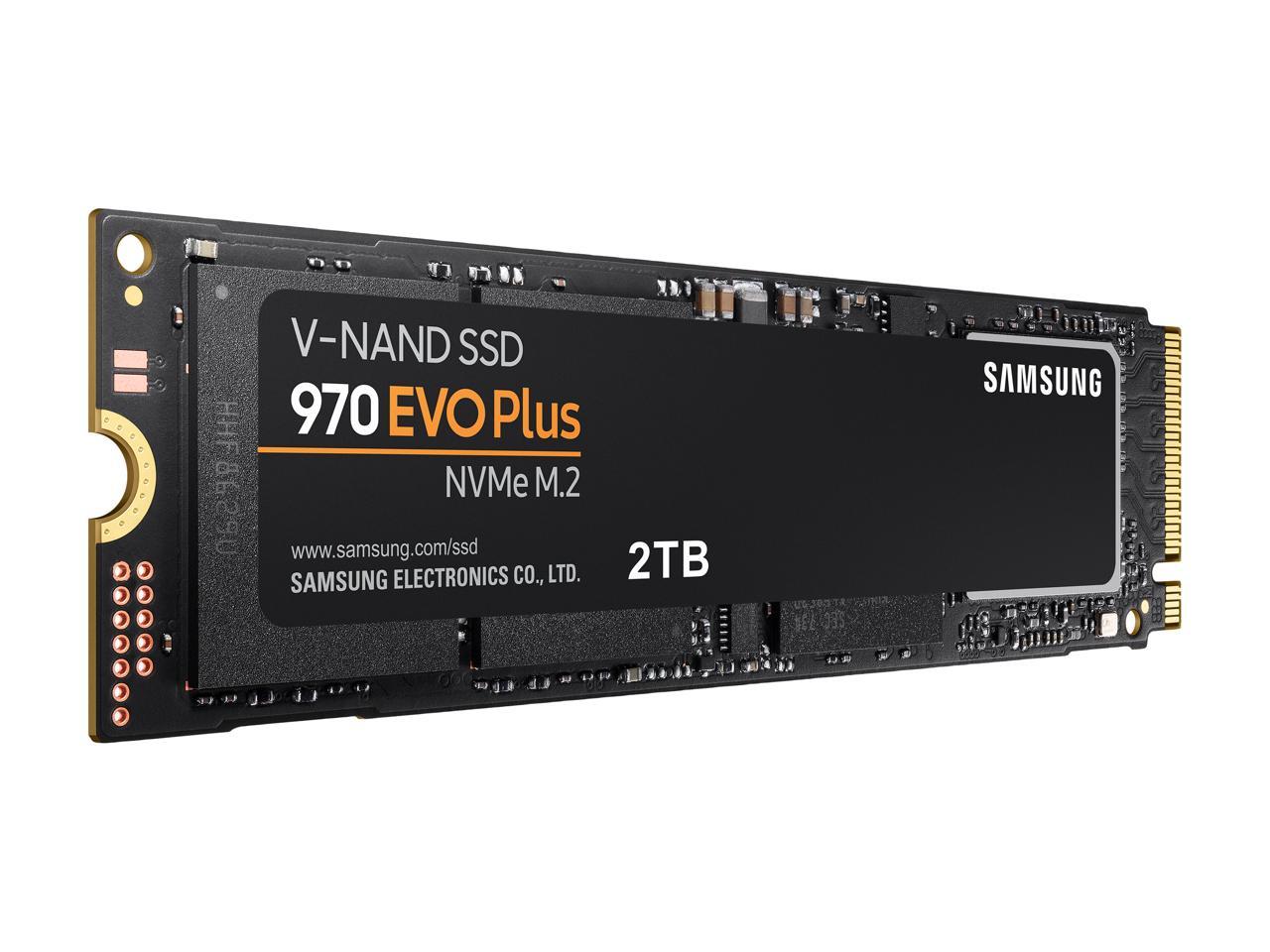

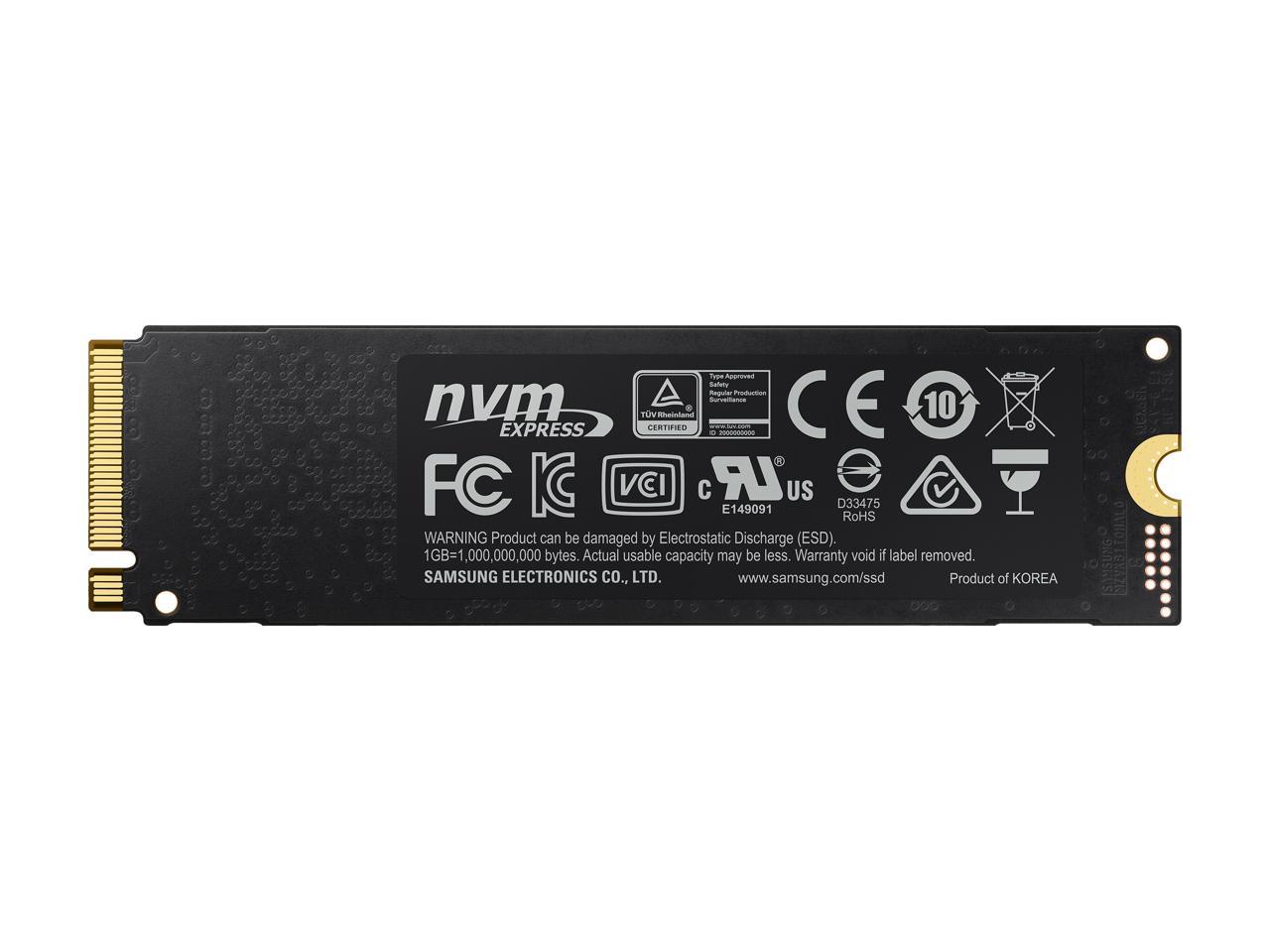

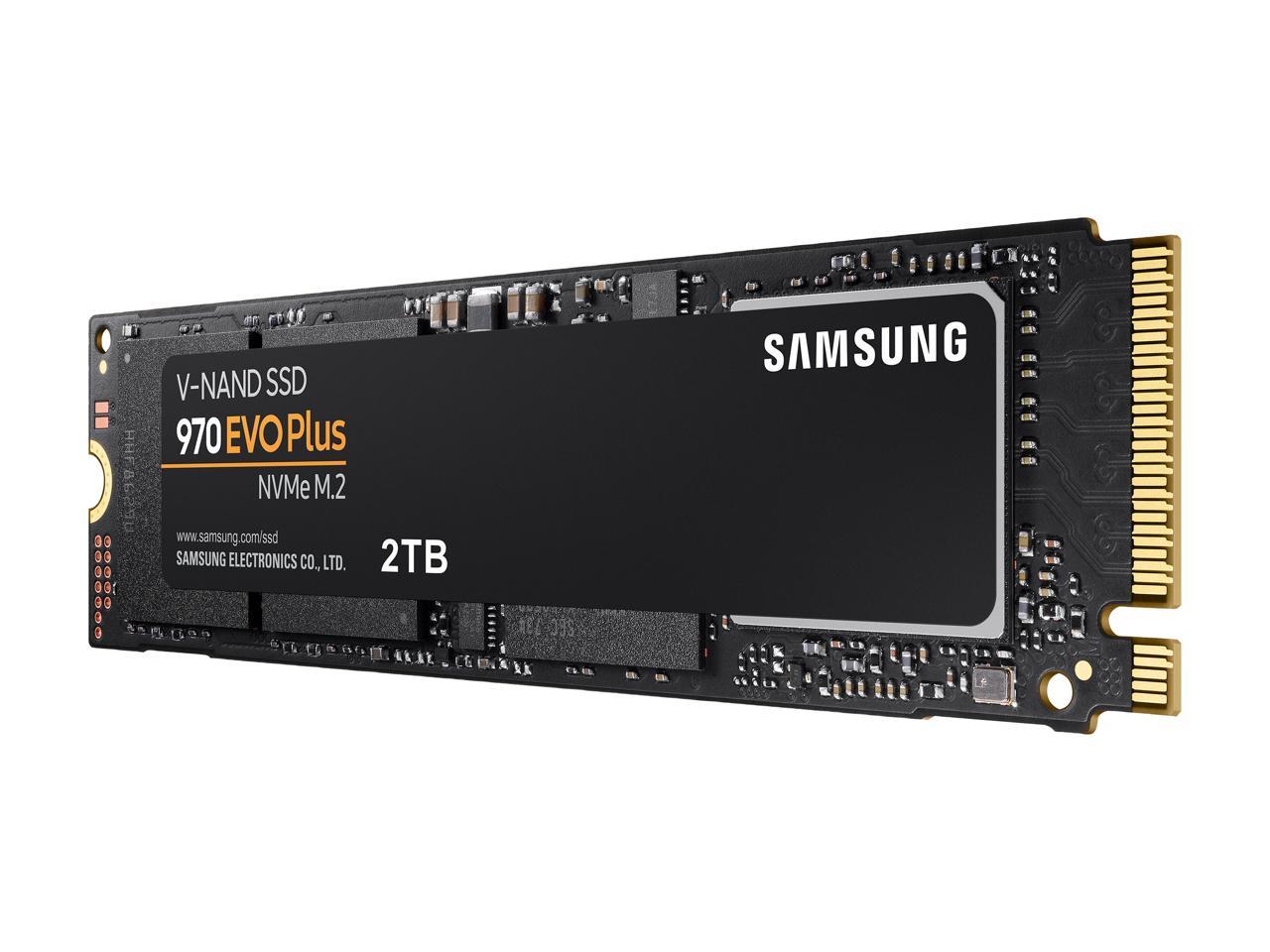

SAMSUNG 970 EVO PLUS M.2 2280 2TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND Internal Solid State Drive (SSD) MZ-V7S2T0B/AM
$Quote1 Pieces ( MOQ )
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
| Brand | SamSung |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Samsung 970 EVO PLUS |
| Model | MZ-V7S2T0B/AM |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 2TB |
| Memory Components | Samsung V-NAND 3-bit MLC |
| Interface | PCIe Gen 3.0 x4, NVMe 1.3 |
| Controller | Samsung Phoenix Controller |
| Cache | Samsung 1GB Low Power DDR4 SDRAM |
| Encryption | AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive) |
| Max Sequential Read | Up to 3500 MBps |
| Max Sequential Write | Up to 3300 MBps |
| 4KB Random Read | 4KB, QD1: Up to 19,000 IOPS, 4KB, QD32: Up to 620,000 IOPS |
| 4KB Random Write | 4KB, QD1: Up to 62,000 IOPS, 4KB, QD32: Up to 560,000 IOPS |
| MTBF | 1,500,000 hours |
| Features | Reliability: 1200 TBW |
| Power Consumption (Idle) | Max. 30 mW |
| Power Consumption (Active) | Average: 6W, Maximum: 9W (Burst mode) |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1,500G & 0.5 ms (Half sine) |
| Height | 2.38mm |
| Width | 22.15mm |
| Depth | 80.15mm |
| Weight | 8.00g |
