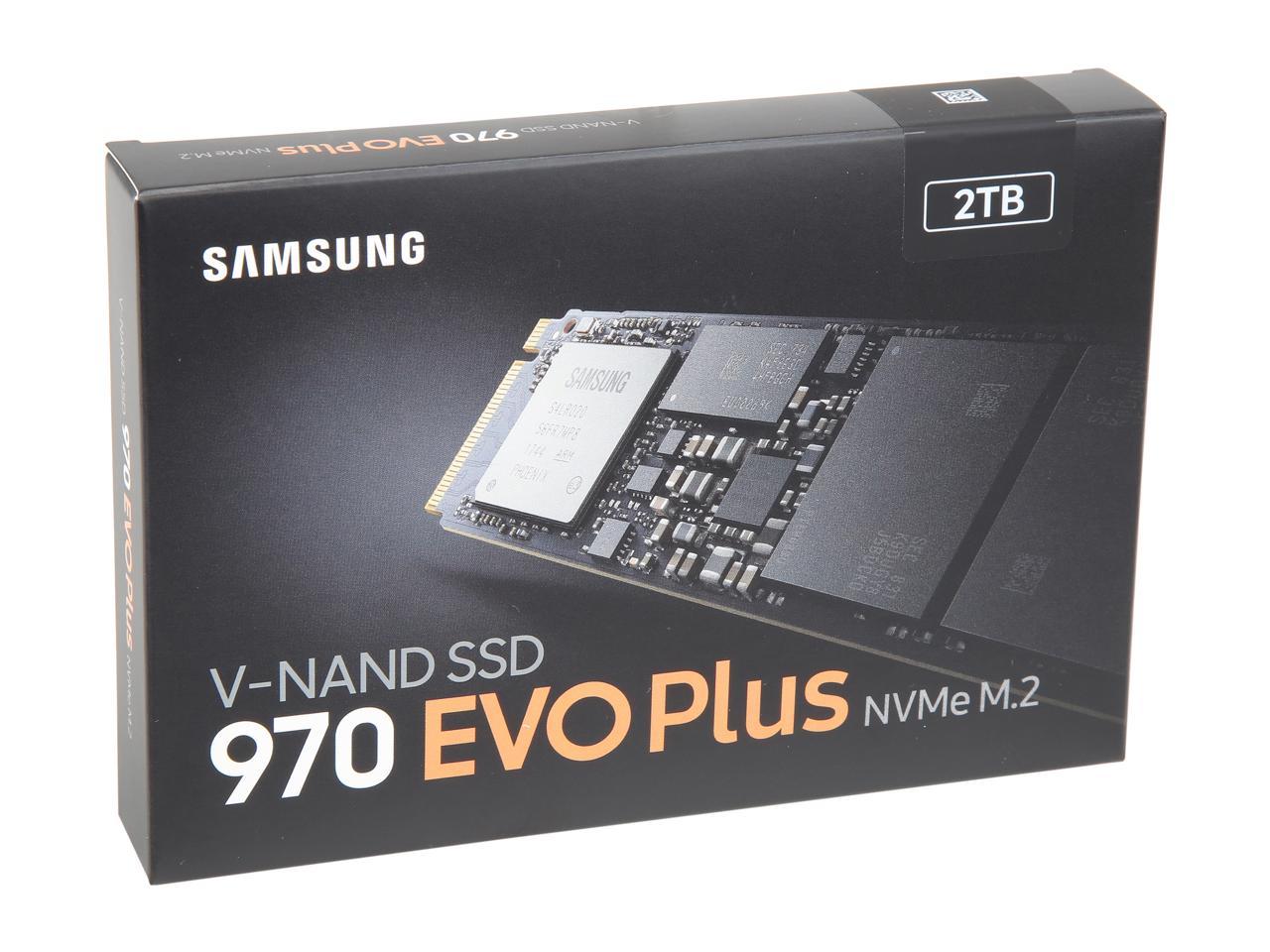

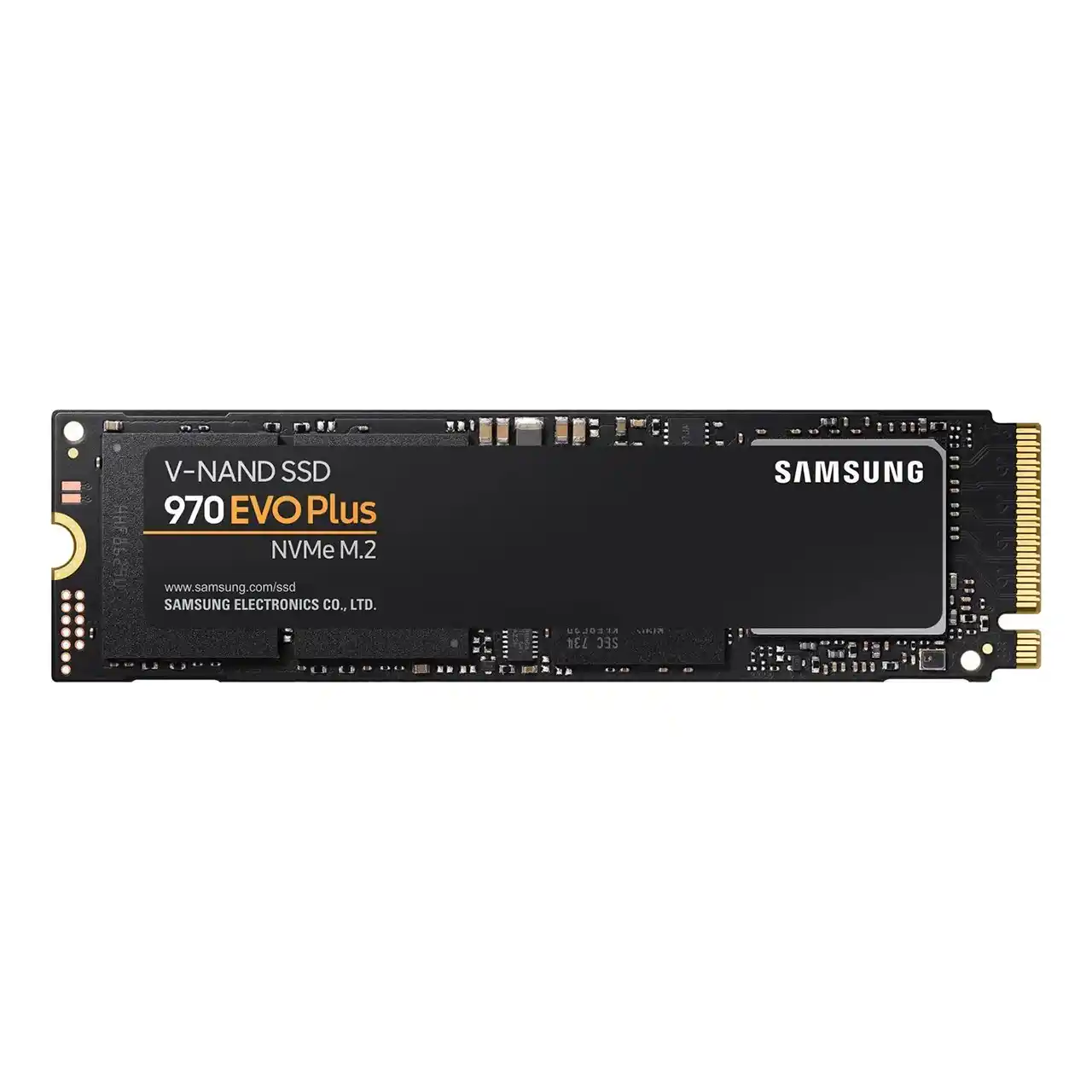

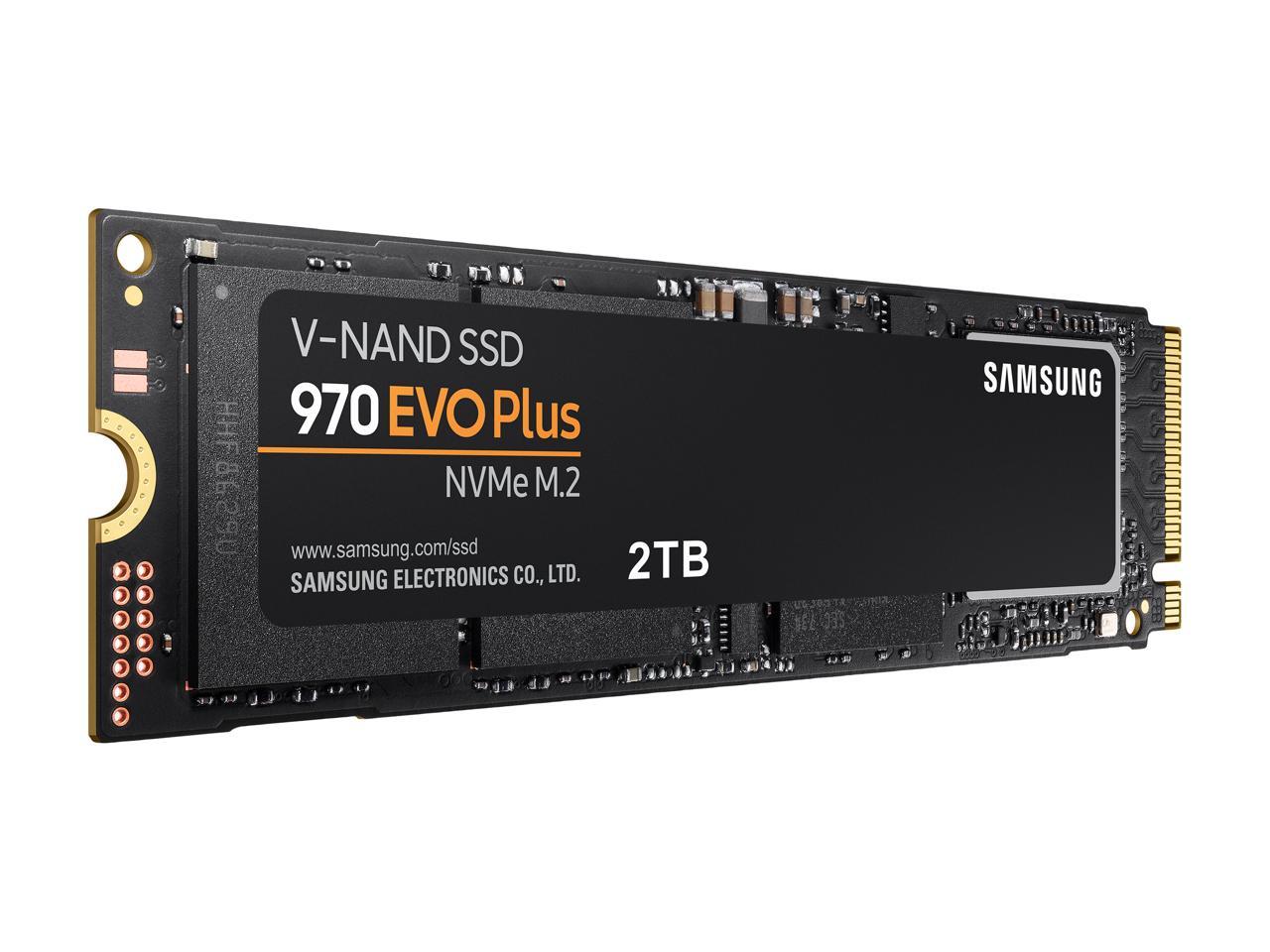

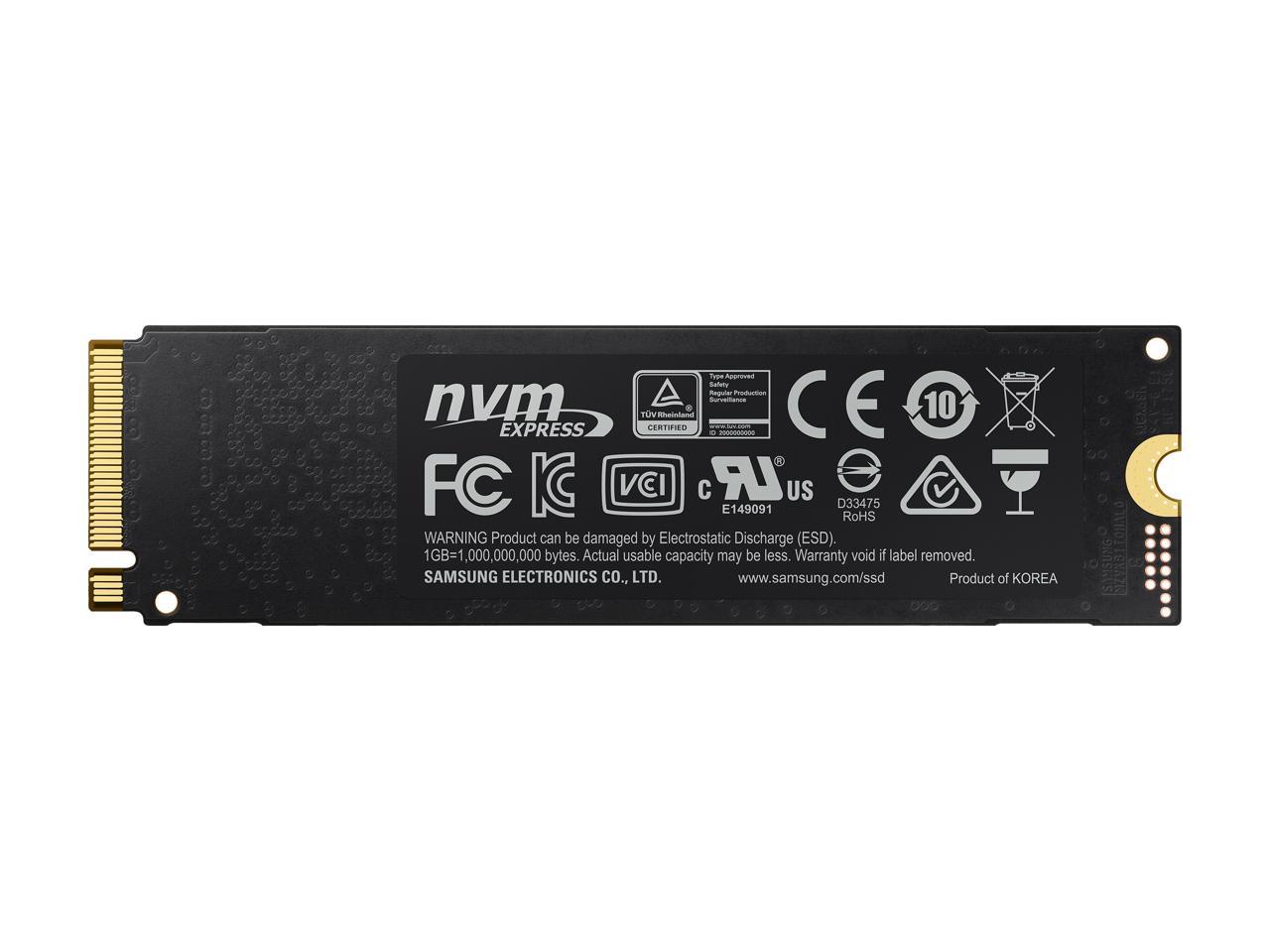

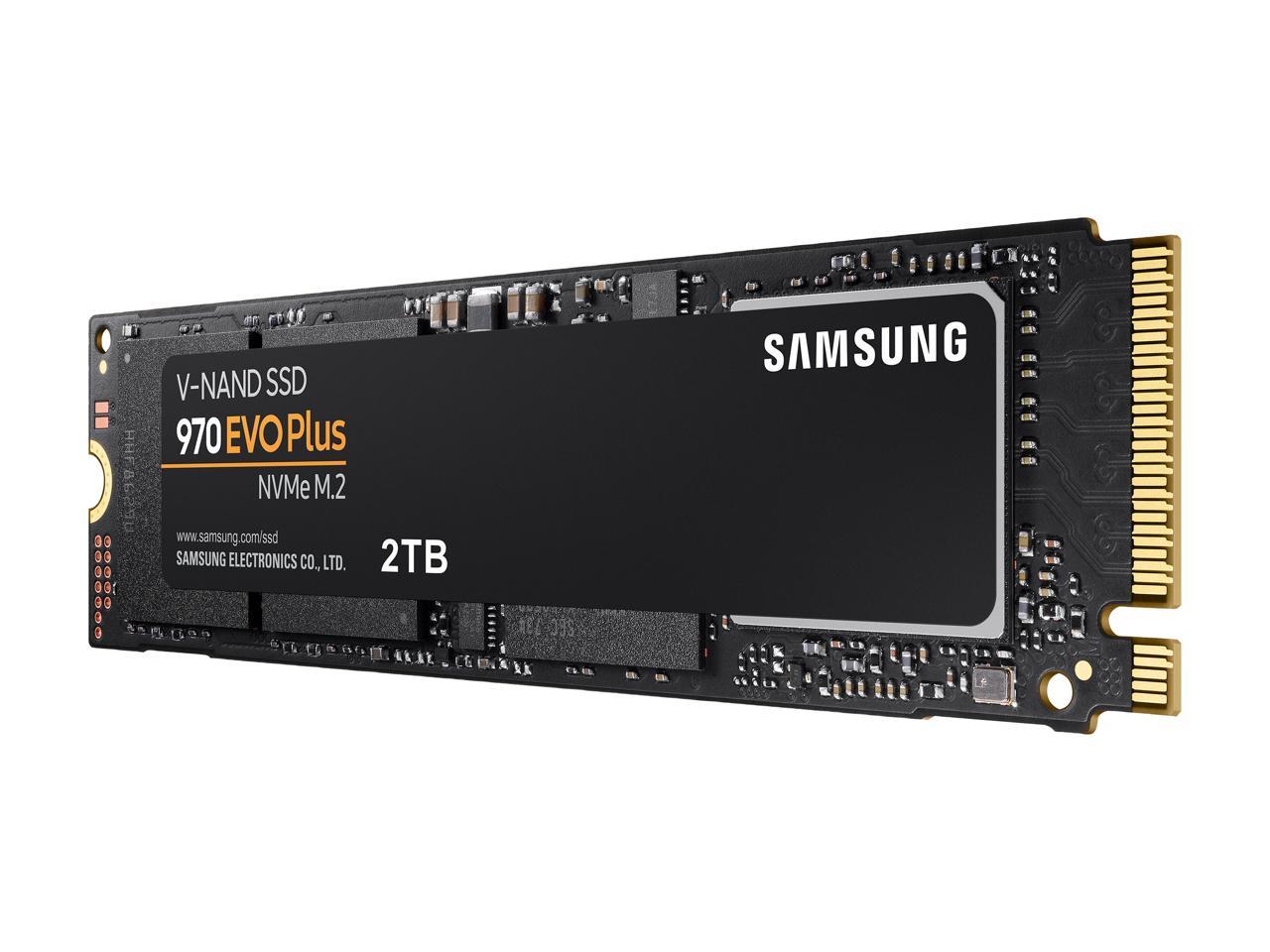

SAMSUNG 970 EVO PLUS M.2 2280 2TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND Internal Solid State Drive (SSD) MZ-V7S2T0B/AM

**Samsung 970 EVO Plus M.2 2280 2TB SSD (MZ-V7S2T0B/AM):** A high-performance NVMe SSD delivering blazing speeds up to 3,500 MB/s read and 3,300 MB/s write via PCIe Gen 3.0 x4 and NVMe 1.3. Features Samsung’s V-NAND technology for enhanced durability and efficiency, with a 2TB capacity in a compact M.2 form factor. Ideal for gaming, 4K editing, and data-intensive tasks, it offers superior thermal control, low power consumption, and a 5-year limited warranty. Combines top-tier speed, reliability, and Samsung’s trusted quality for seamless multitasking and long-term performance.

$Quote1 Piece(MOQ)

SKU MZ-V7S2T0B/AM Categories , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
  • INNOVATIVE V-NAND TECHNOLOGY: Powered by Samsung V-NAND Technology, the 970 EVO Plus SSD’s NVMe interface (PCIe Gen 3.0 x4 NVMe 1.3) offers enhanced bandwidth, low latency, and power efficiency ideal for tech enthusiasts, high end gamers, and 4K & 3D content designers
  • BREAKTHROUGH READ WRITE SPEEDS: Sequential read and write performance levels of up to 3,500 MB/s and 3,300 MB/s, respectively; Random Read (4KB, QD32): Up to 620,000 IOPS Random Read
  • PERFORMANCE OPTIMIZATION AND DATA SECURITY: Seamless cloning and file transfers with Samsung Magician Software, the ideal SSD management solution for performance optimization and data security with automatic firmware updates
  • SUPERIOR HEAT DISSIPATION: Samsung’s Nickel-coated controller and Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops
  • 1200 TBW (Terabytes Written)

General Information :
Brand : SAMSUNG
Product Series : 970 Series
Product Model : MZ-V7S2T0B/AM
Product Type : Solid State Drive
Product Name : 970 Evo Solid State Drive.

Technical Information :
Device Type : Solid State Drive – Internal
Capacity : 2tb
Hardware Encryption : Yes
Encryption Algorithm : 256-bit Aes
Nand Flash Memory Type : Triple-level Cell (tlc)
Form Factor : M.2 2280
Interface : Pcie 3.0 X4 (nvme)
Buffer Size : 2 Gb
Features : Trim Support, Sleep Mode, Auto Garbage Collection Algorithm, V-nand Technology, Nvm Express (nvme) 1.3, SAMSUNG Phoenix Controller, S.m.a.r.t.

Performance :
Ssd Endurance : 1200 Tb
Internal Data Rate : 3500 Mbps (read) / 3300 Mbps (write)
4kb Random Read : 19000 Iops
4kb Random Write : 62000 Iops
4kb Random Write : 560000 Iops
4kb Random Read : 620000 Iops

Reliability :
Mtbf: 1,500,000 Hours

Expansion & Connectivity :
Interfaces : Pci Express 3.0 X4 (nvme) – M.2 Card
Compatible Bay : M.2 2280

Environmental Parameters :
Min Operating Temperature : 32 °f
Max Operating Temperature : 158 °f
Shock Tolerance (operating) : 1500 G @ 0.5 Ms Half-sine

Physical Characteristics :
Width : 0.9 In
Depth : 3.2 In
Height : 0.1 In
Weight : 0.28 Oz

Power Consumption (Active)

Average: 6W, Maximum: 9W (Burst mode)
Memory Components

Samsung V-NAND 3-bit MLC
Width

22.15mm
Max Shock Resistance

1 500G & 0.5 ms (Half sine)
Form Factor

M.2 2280
4KB Random Write

4KB QD1: Up to 62 000 IOPS, 4KB QD32: Up to 560 000 IOPS
Max Sequential Read

Up to 3500 MB/s
Capacity

2TB
Brand

SamSung
Used For

Consumer
Depth

80.15mm
Encryption

AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)
4KB Random Read

4KB QD1: Up to 19 000 IOPS, 4KB QD32: Up to 620 000 IOPS
Model

MZ-V7S2T0B/AM
Series

Samsung 970 EVO PLUS
Features

Reliability: 1200 TBW
Cache

Samsung 1GB Low Power DDR4 SDRAM
Interface

PCIe 3.0 x4 NVMe 1.3
Power Consumption (Idle)

Max. 30 mW
MTBF

1 500 000 hours
Application

Desktop
Device Type

Internal Solid State Drive (SSD)
Products Status

New
Max Sequential Write

Up to 3300 MB/s
Height

2.38mm
Weight

8.00g
Operating Temperature

0C ~ +70C
Controller

Samsung Phoenix Controller

Q1: ls the product original ?

A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.

Q2. Payment methods?

We accept T/T, PayPal, Alibaba ect.

Q3. Shipping methods?

We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.

Q4. How long is the lead time?

Usually 1-3 working days after payment. Feel free to send me exact models for checking.

Q5. How long is the warranty period?

Different products have different warranty periods. Usually 1~3 years warranty.
