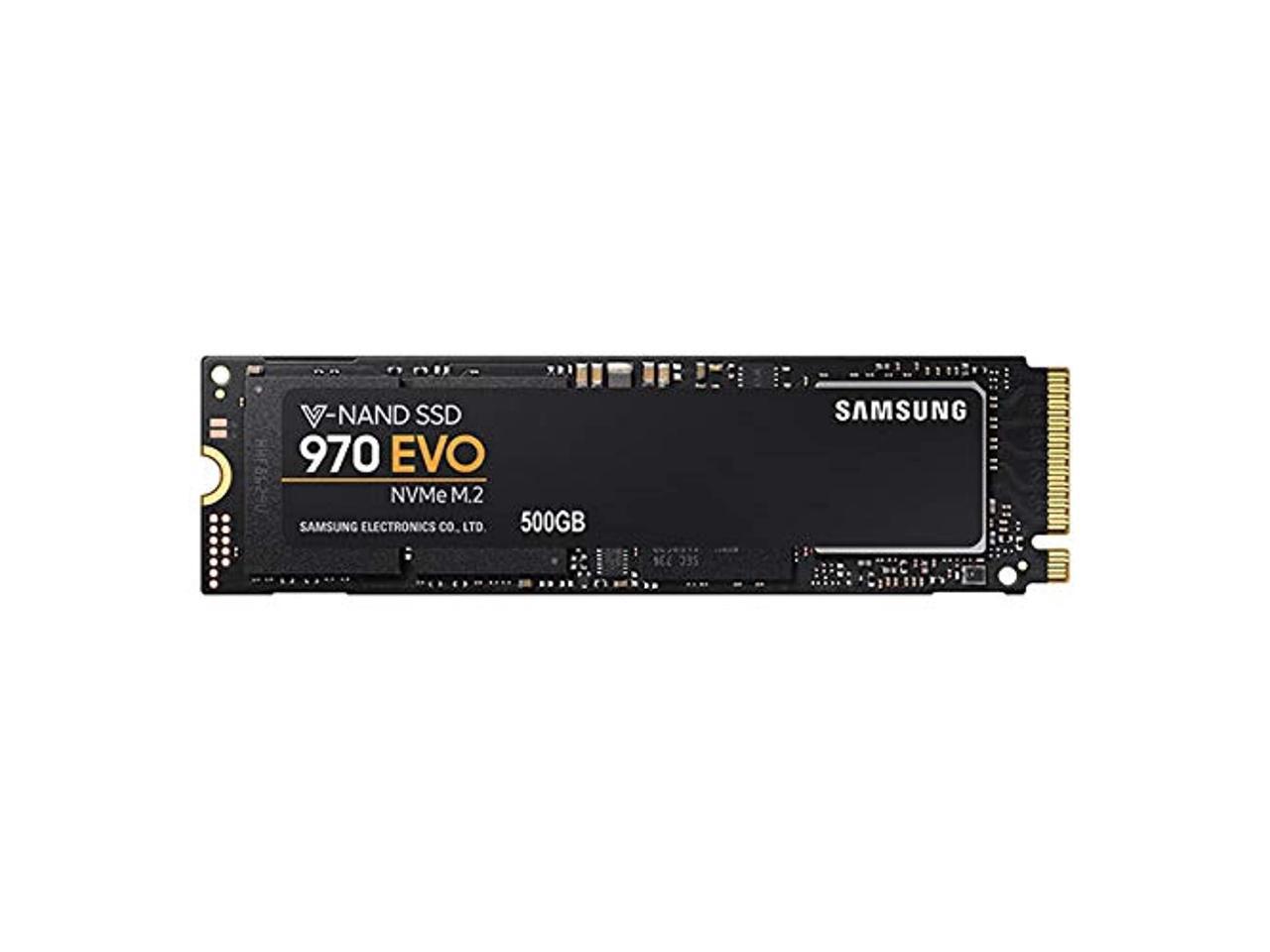

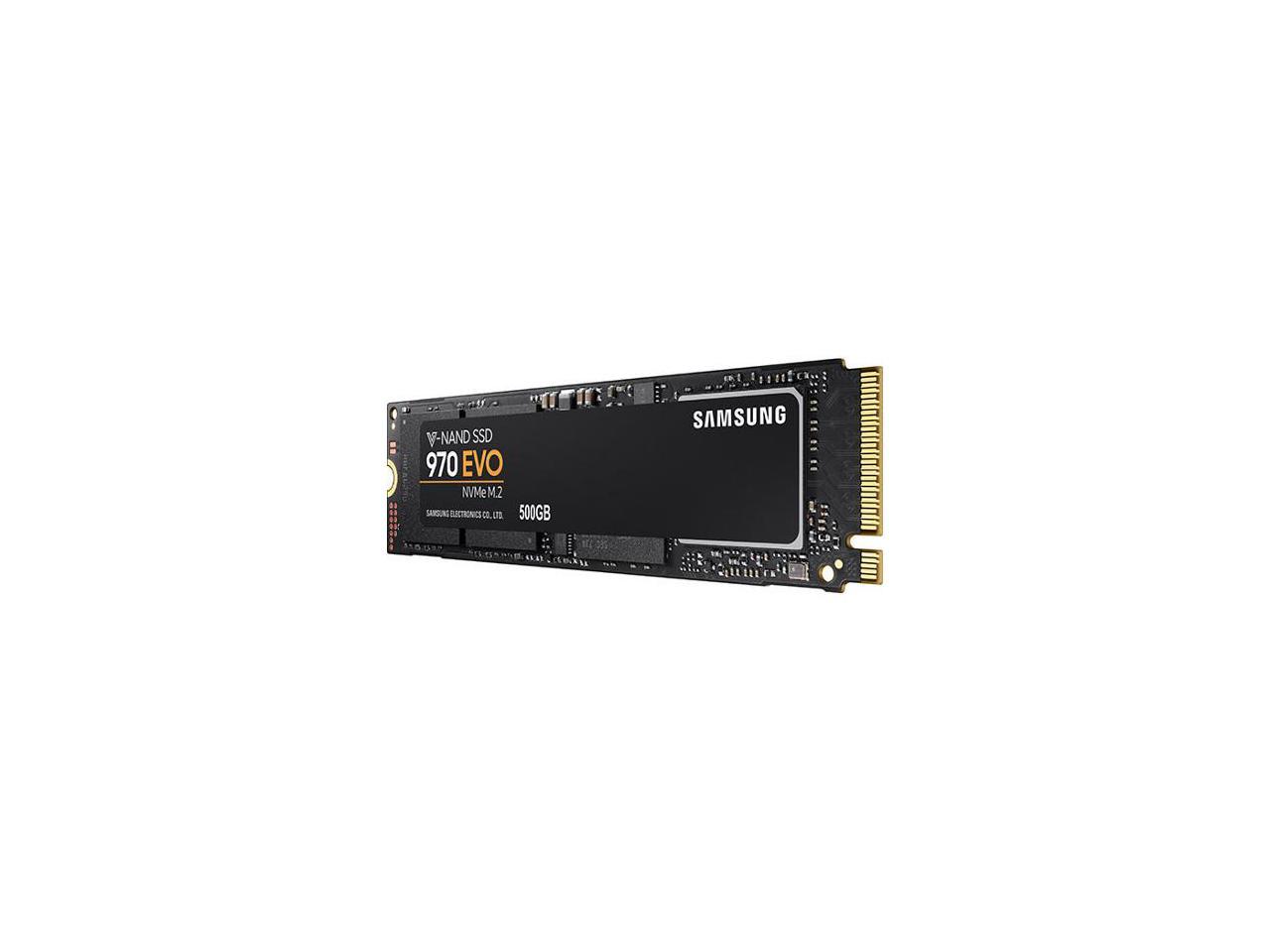

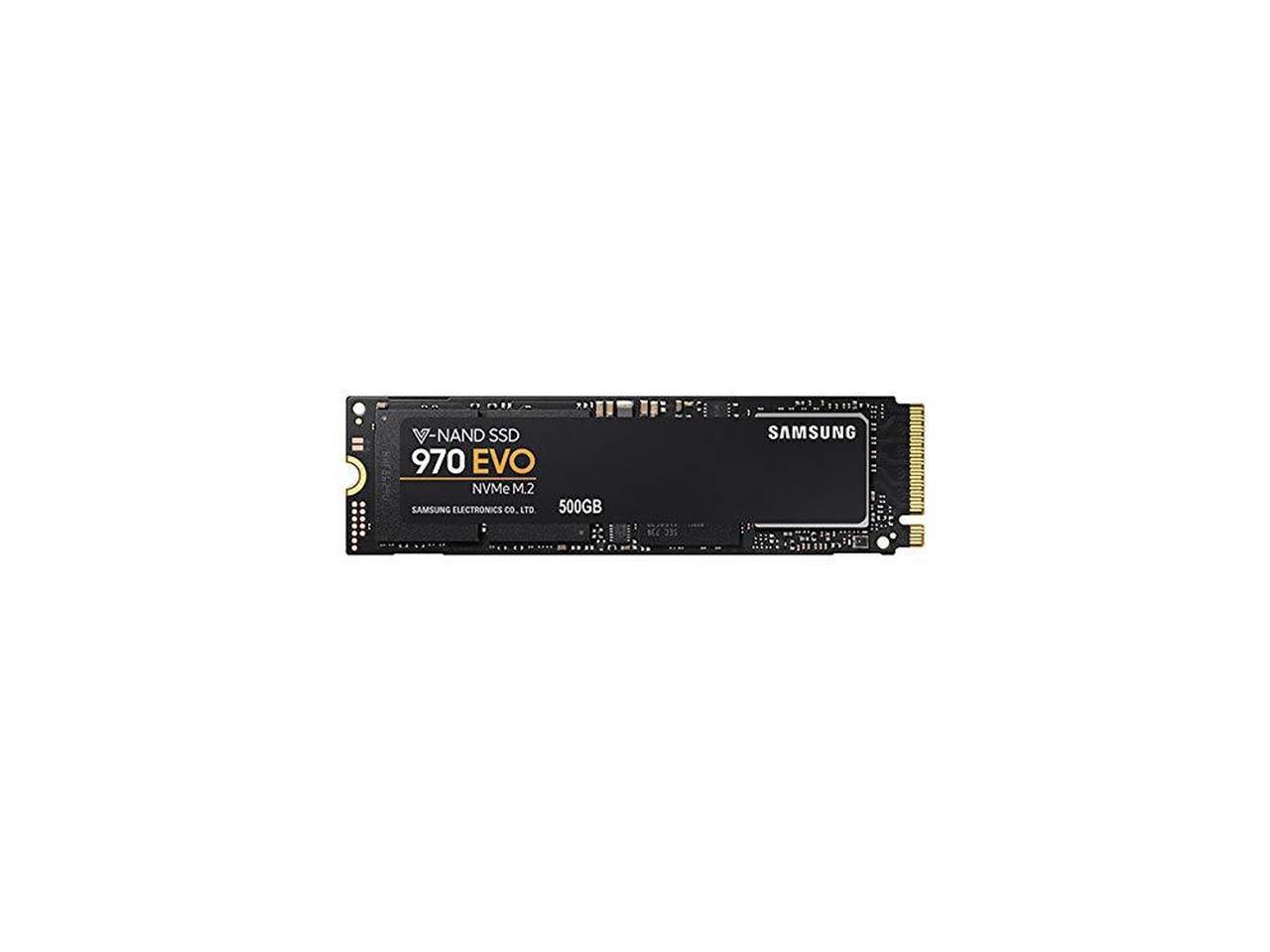

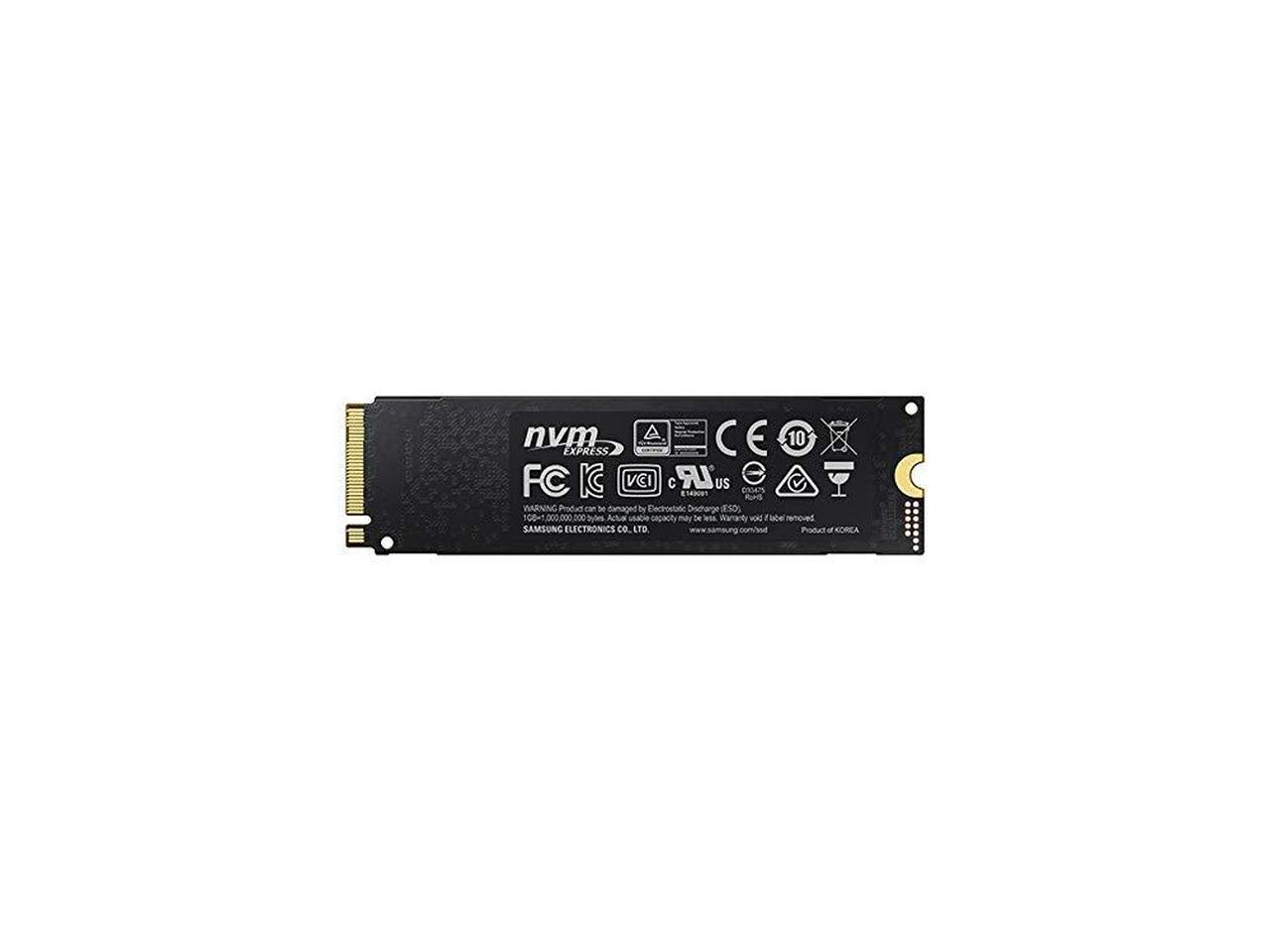

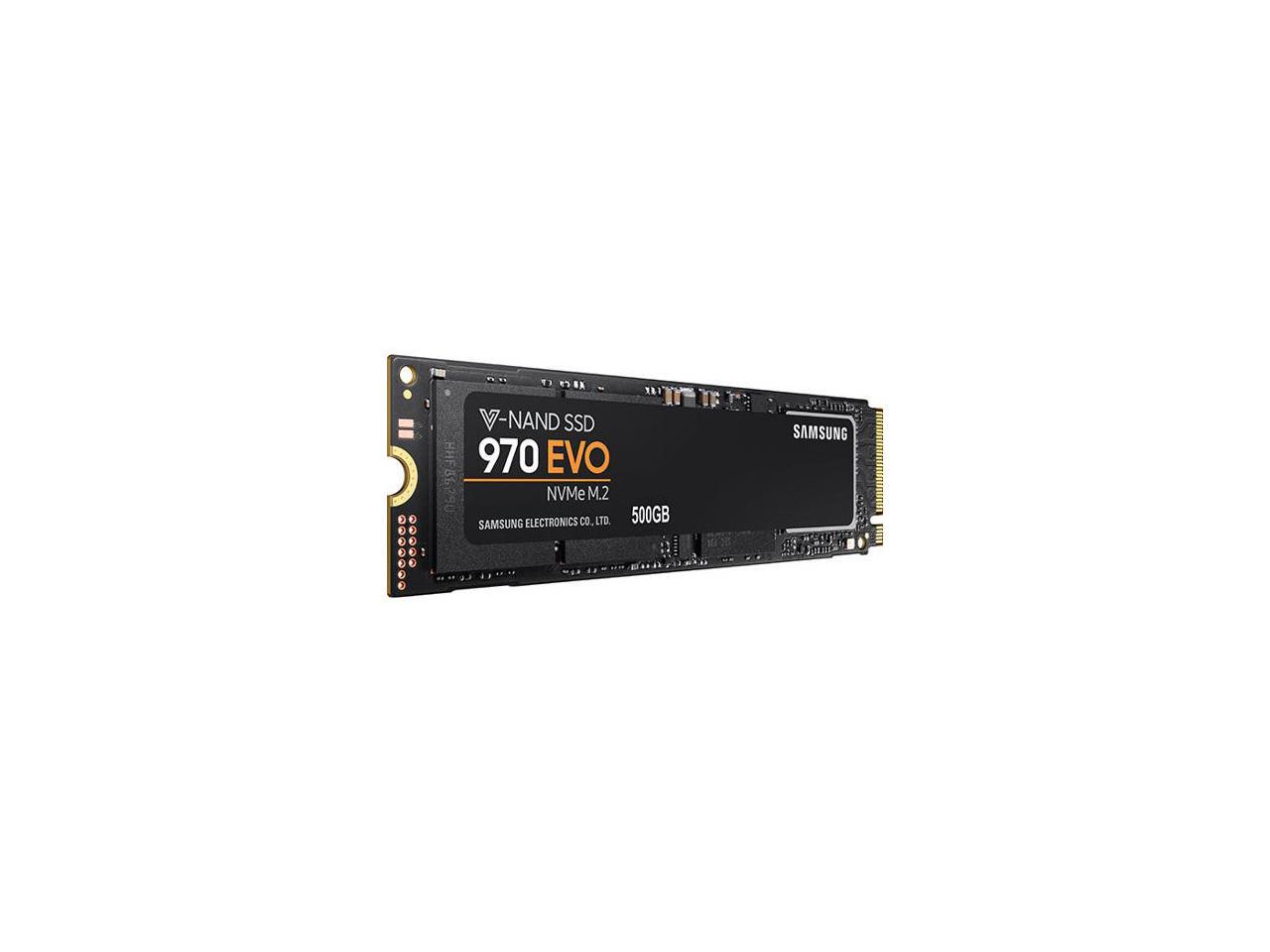

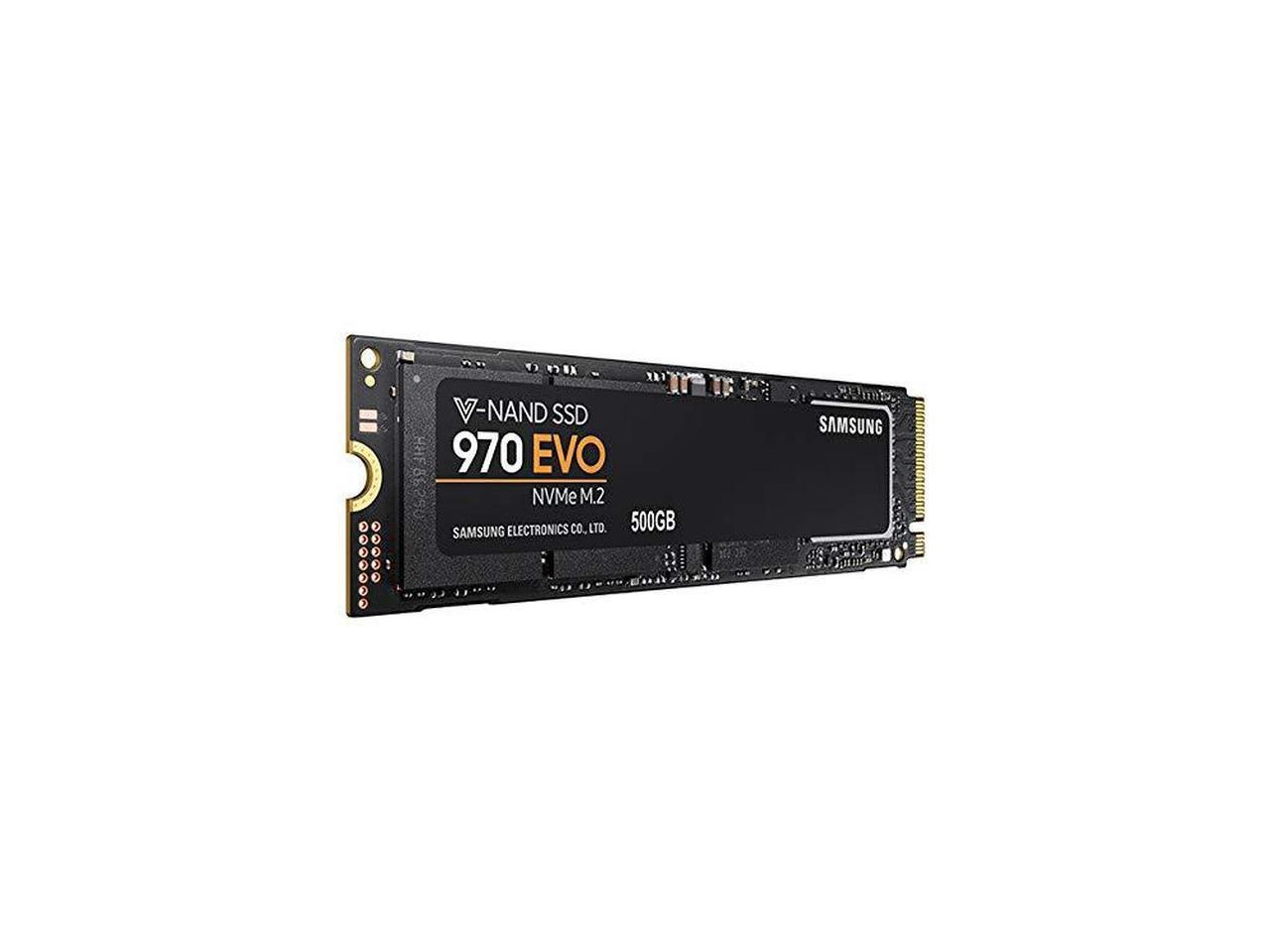

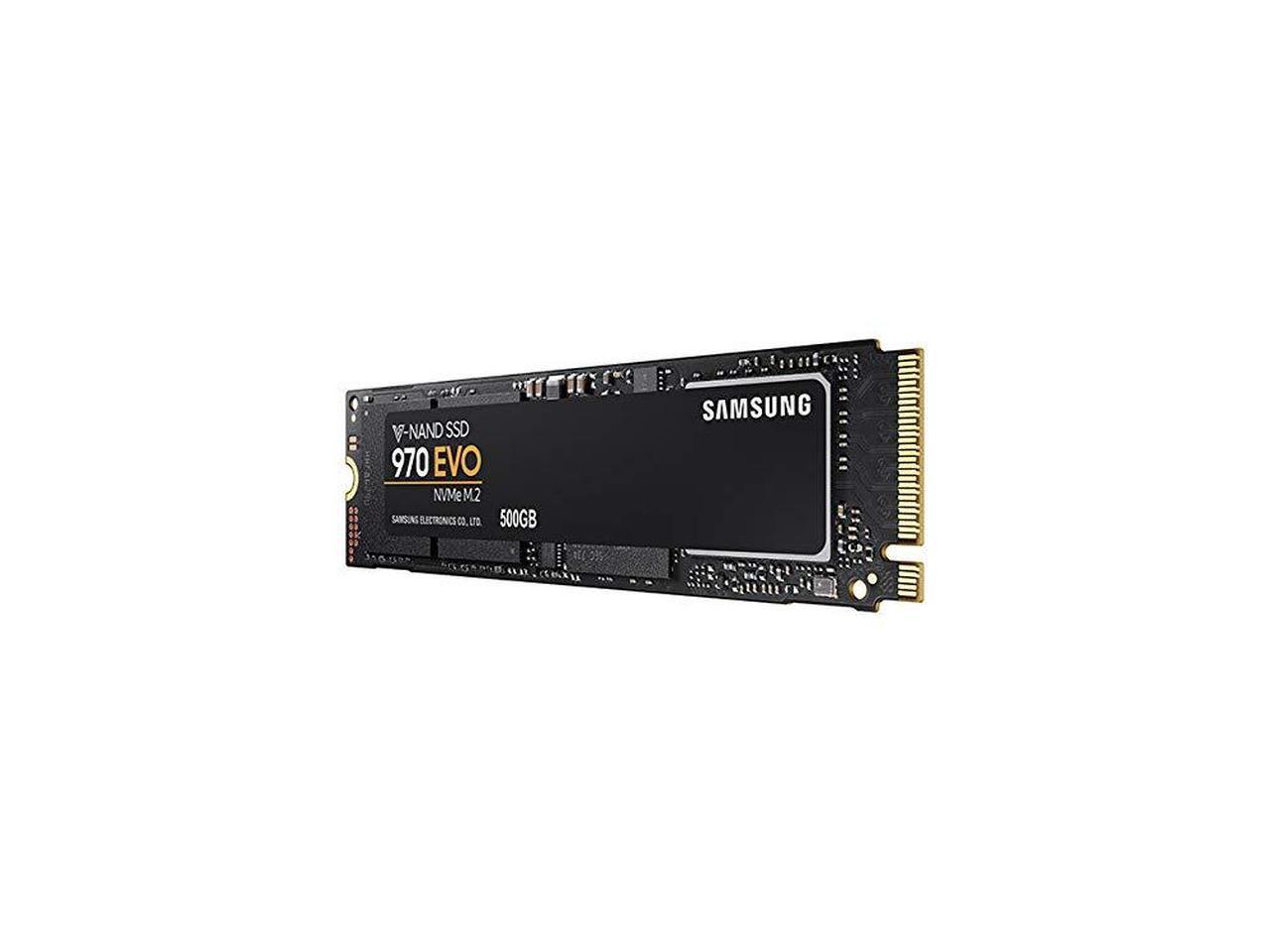

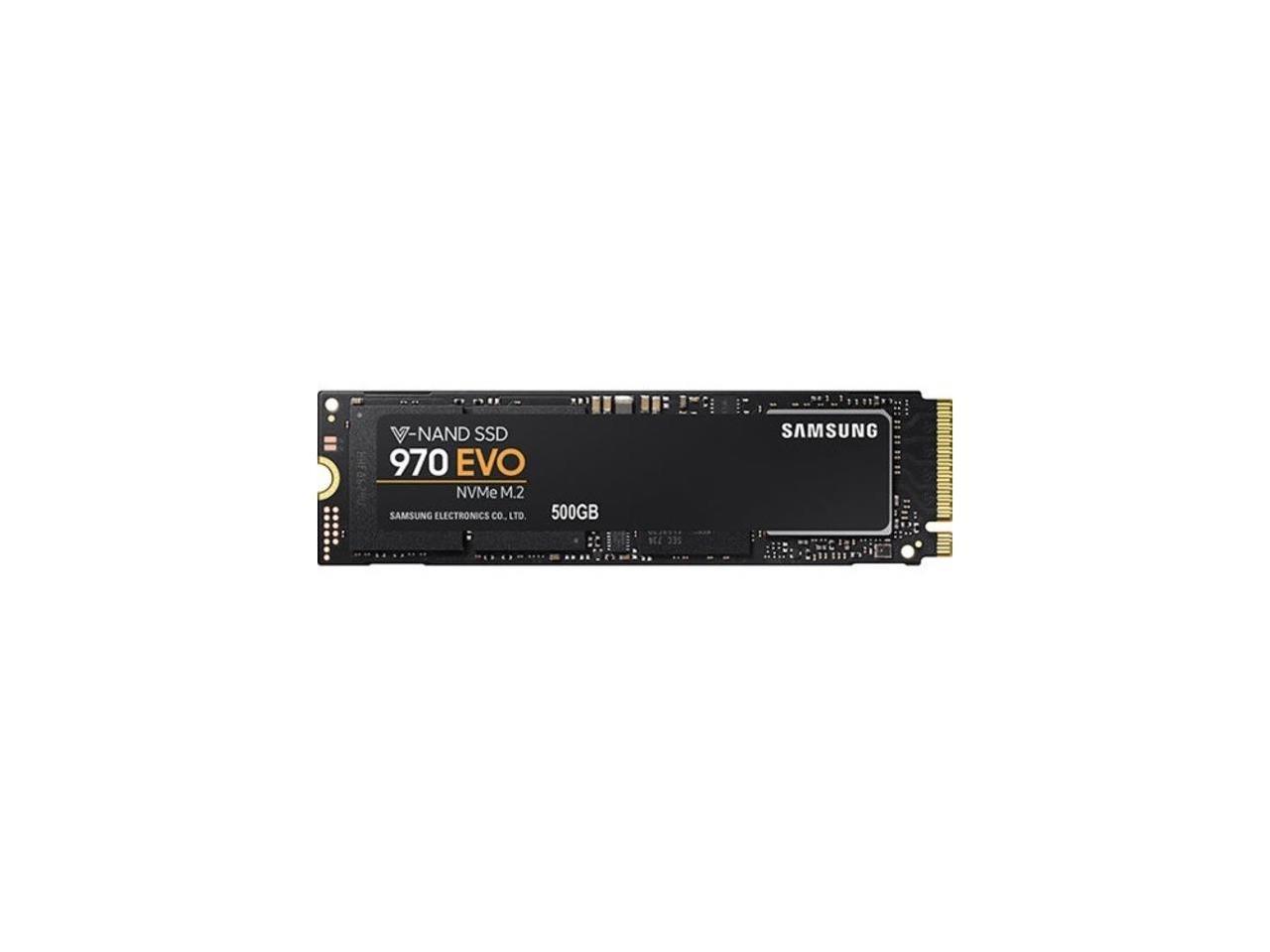

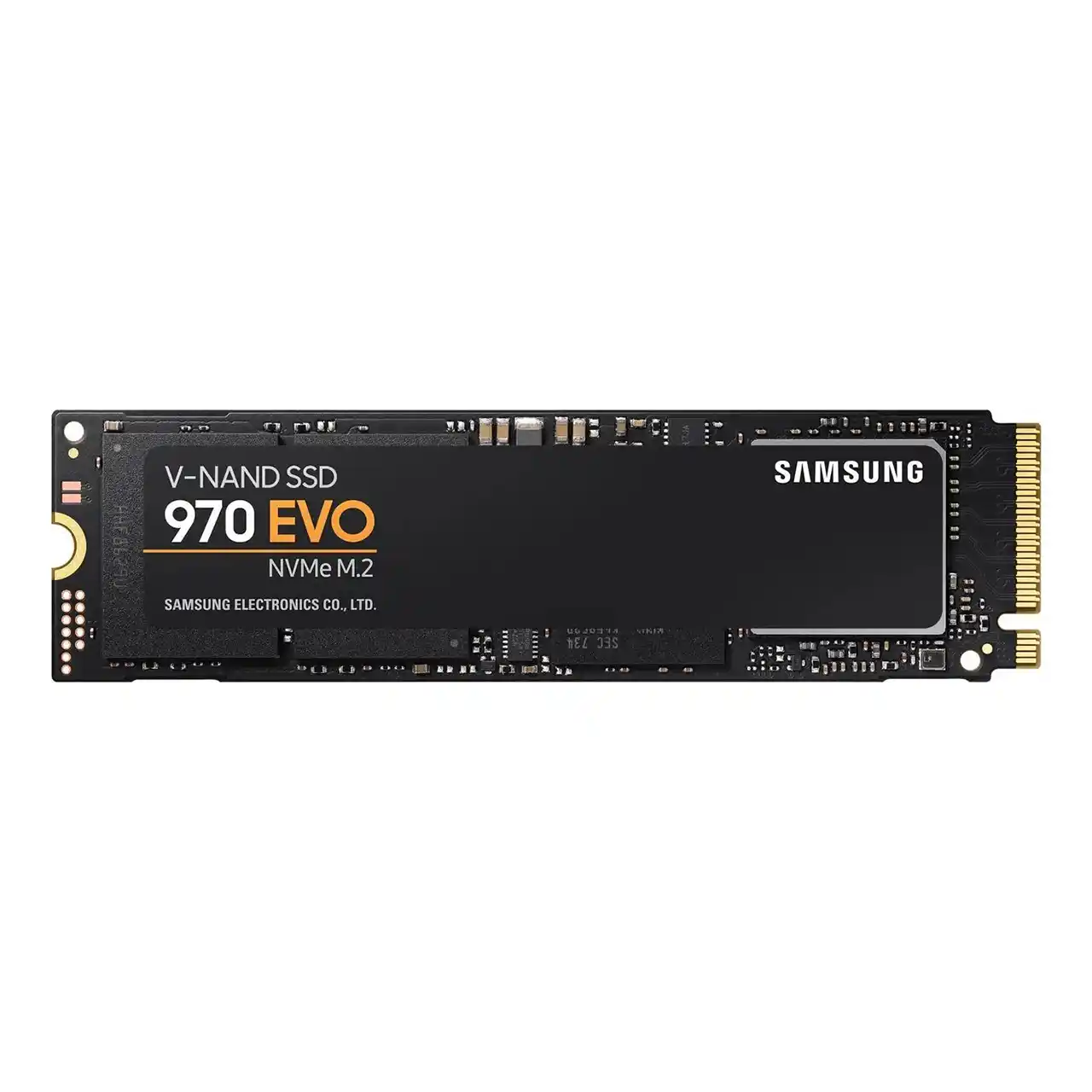

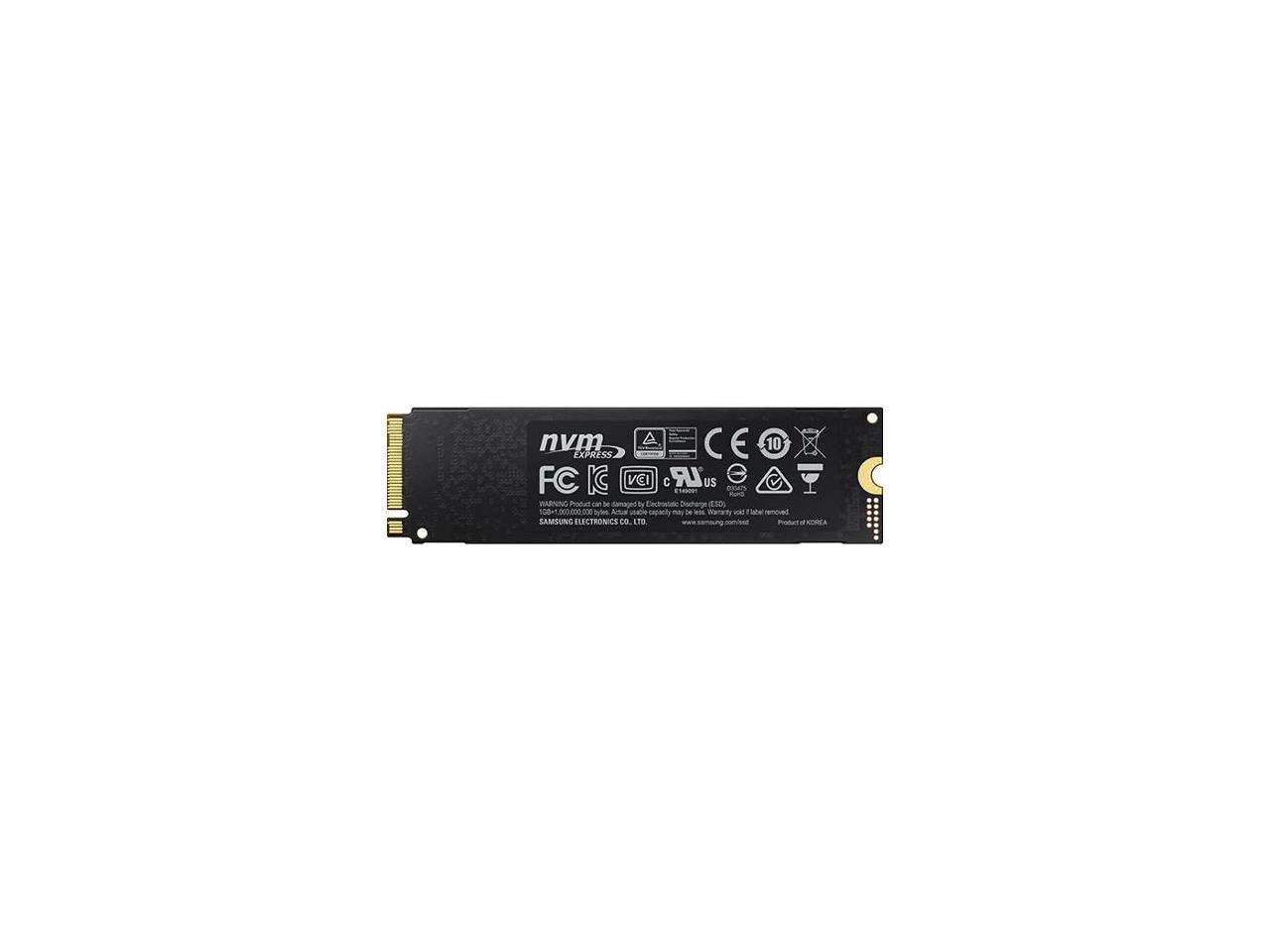

SAMSUNG 970 EVO M.2 2280 500GB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7E500E

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only
  • M.2 2280
  • 500GB
  • PCIe Gen 3.0 x4, NVMe 1.3
Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 970 EVO

Model

MZ-V7E500E

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Form Factor

M.2 2280

Capacity

500GB

Memory Components

V-NAND 3-bit MLC

Interface

PCIe Gen 3.0 x4, NVMe 1.3

Controller

Samsung Phoenix

Cache

512MB Low Power DDR4 SDRAM

Max Sequential Read

Up to 3400 MBps

Max Sequential Write

Up to 2300 MBps

4KB Random Read

QD1: Up to 15,000 IOPS, QD32: Up to 370,000 IOPS

4KB Random Write

QD1: Up to 50,000 IOPS, QD32: Up to 450,000 IOPS

MTBF

1,500,000 hours

Features

Dynamic Thermal Guard, Non-Volatile Memory Express (NVMe), Professional-Quality Drive Management, Samsung's intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptionally fast speeds of NVMe., SSD Data Security, This drive includes an AES-256-bit hardware based, full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667., TurboWrite Technology, V-NAND Technology

Power Consumption (Idle)

30 mW (max)

Power Consumption (Active)

Average: 5.7W / Maximum: 10W (Burst mode)

Operating Temperature

0°C ~ +70°C

Max Shock Resistance

1,500G & 0.5 ms (Half sine)

Height

2.38mm

Width

22.15mm

Depth

80.15mm

Weight

8.00g
