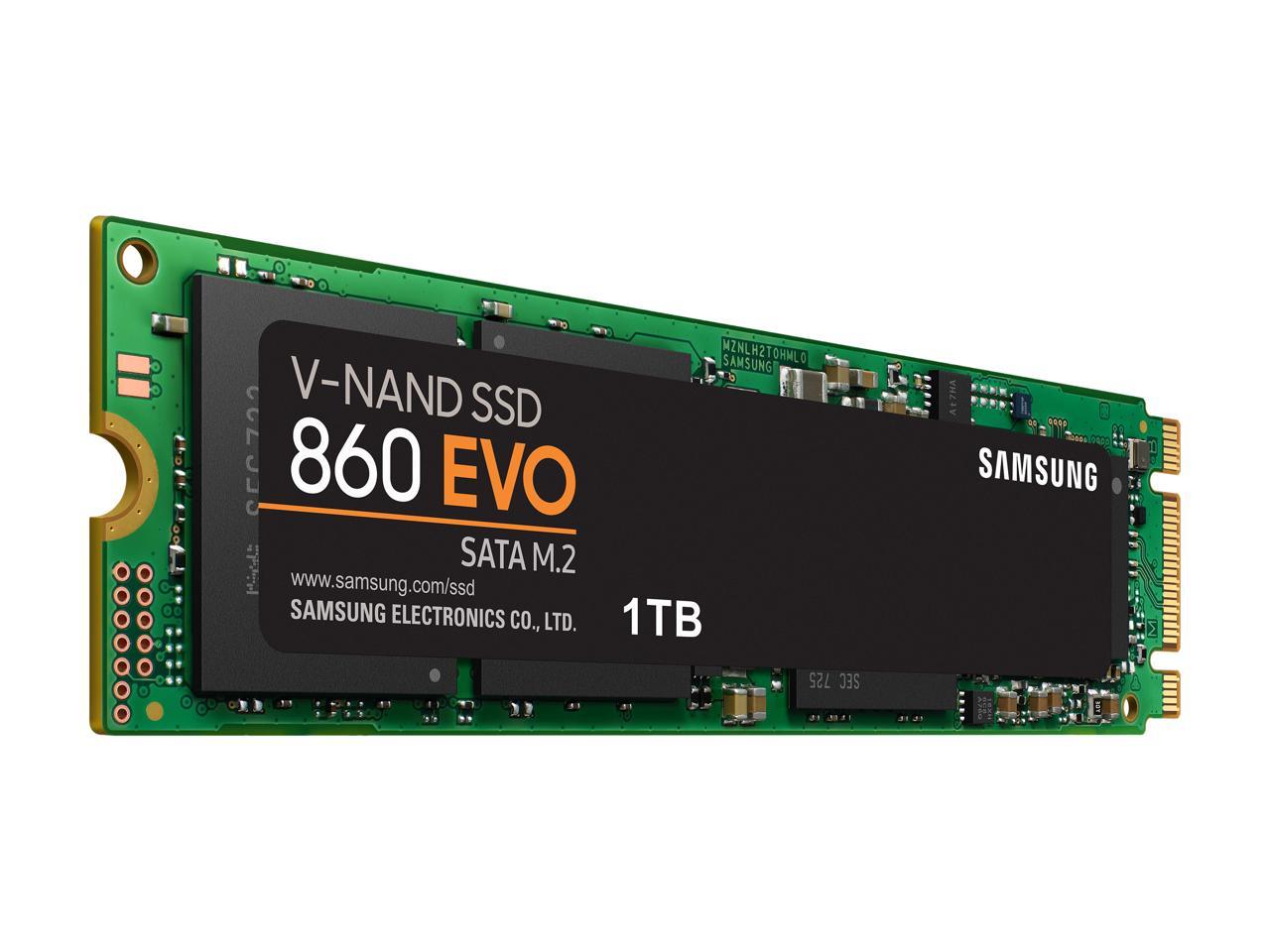

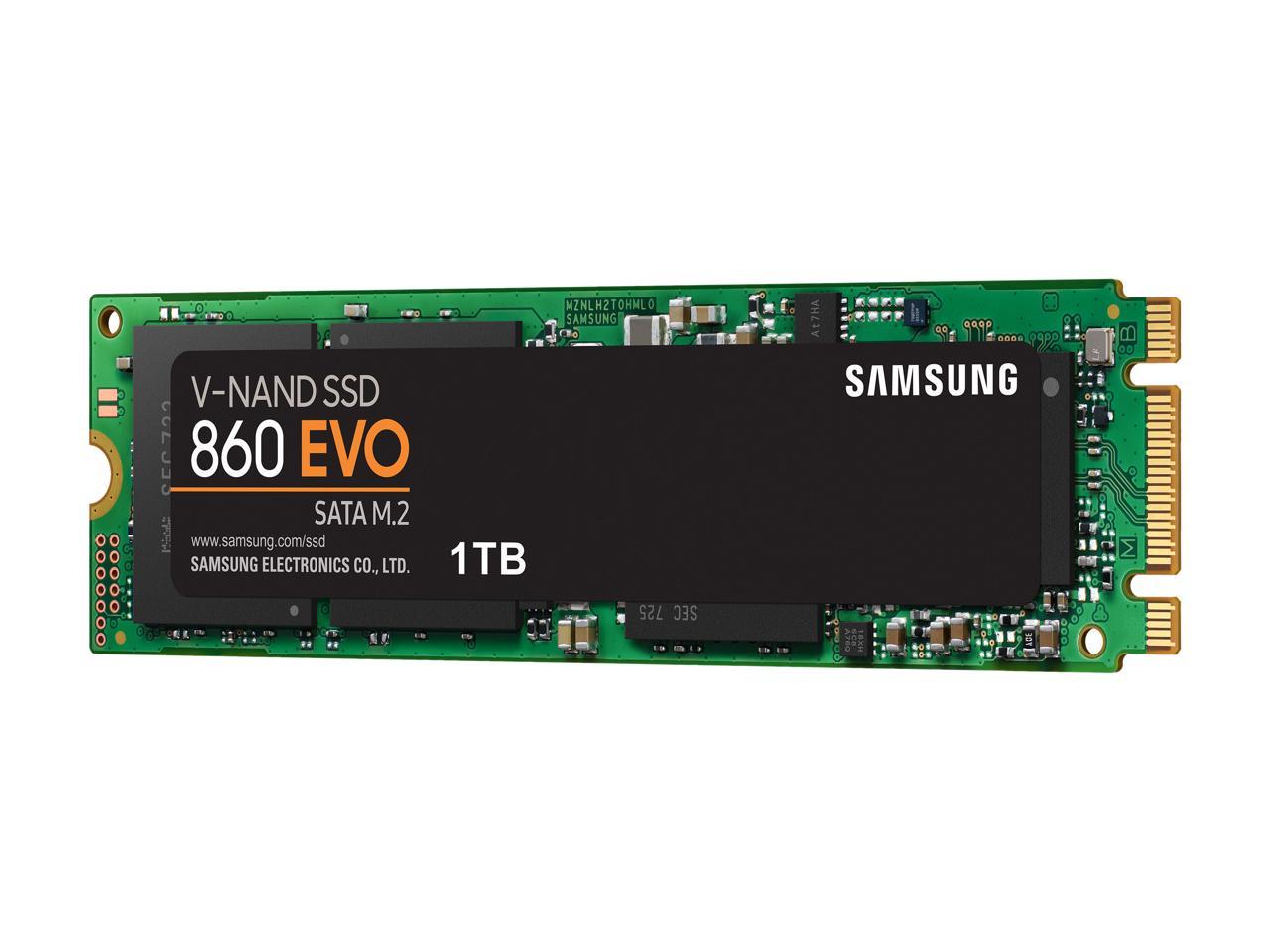

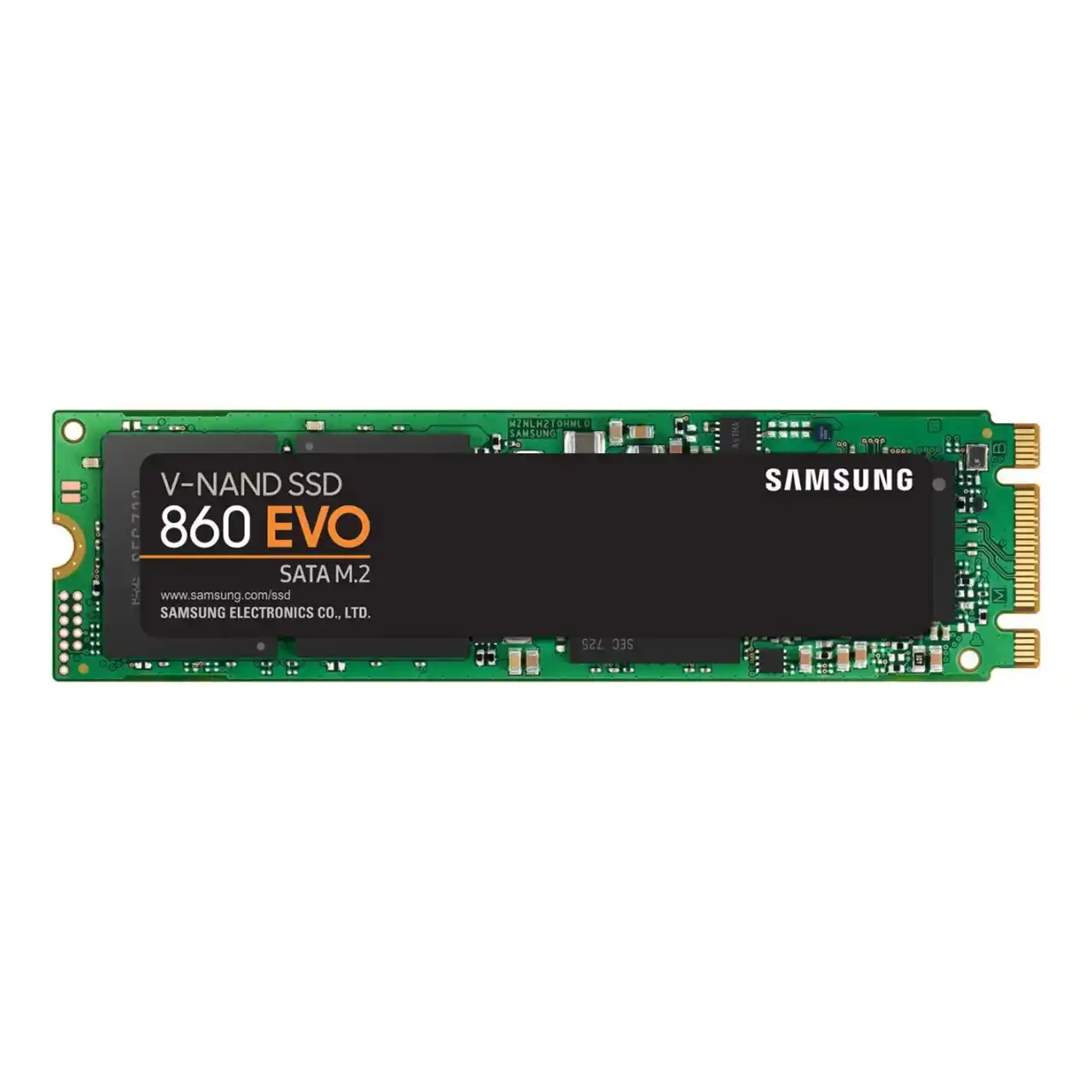

SAMSUNG 860 EVO Series M.2 2280 1TB SATA III V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-N6E1T0BW

SamSung 860EVO 1TB M.2 2280 NVMe SATA 3.0 6Gb/S MZ-N6E1T0BW

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only
Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 860 EVO

Model

MZ-N6E1T0BW

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Form Factor

M.2 2280

Capacity

1TB

Memory Components

V-NAND 3-bit MLC

Interface

SATA III

Controller

MJX

Cache

1GB Low Power DDR4 SDRAM

Max Sequential Read

Up to 550 MBps

Max Sequential Write

Up to 520 MBps

4KB Random Read

QD1: Up to 10,000 IOPS, QD32: Up to 97,000 IOPS

4KB Random Write

QD1: Up to 42,000 IOPS, QD32: Up to 88,000 IOPS

MTBF

1,500,000 hours

Features

AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive), Device Sleep Mode Support: Yes, GC (Garbage Collection): Auto Garbage Collection Algorithm, Management SW: Magician Software for SSD management, S.M.A.R.T. Support: Yes, TBW: 600TB, Trim Support: Yes, WWN Support: World Wide Name supported

Power Consumption (Active)

Average: 3.0W, Maximum: 4.5W (Burst mode)

Operating Temperature

0°C ~ +70°C

Max Shock Resistance

1,500G & 0.5 ms (Half sine)

Height

2.30mm

Width

22.00mm

Depth

80.00mm

Weight

80.00g
