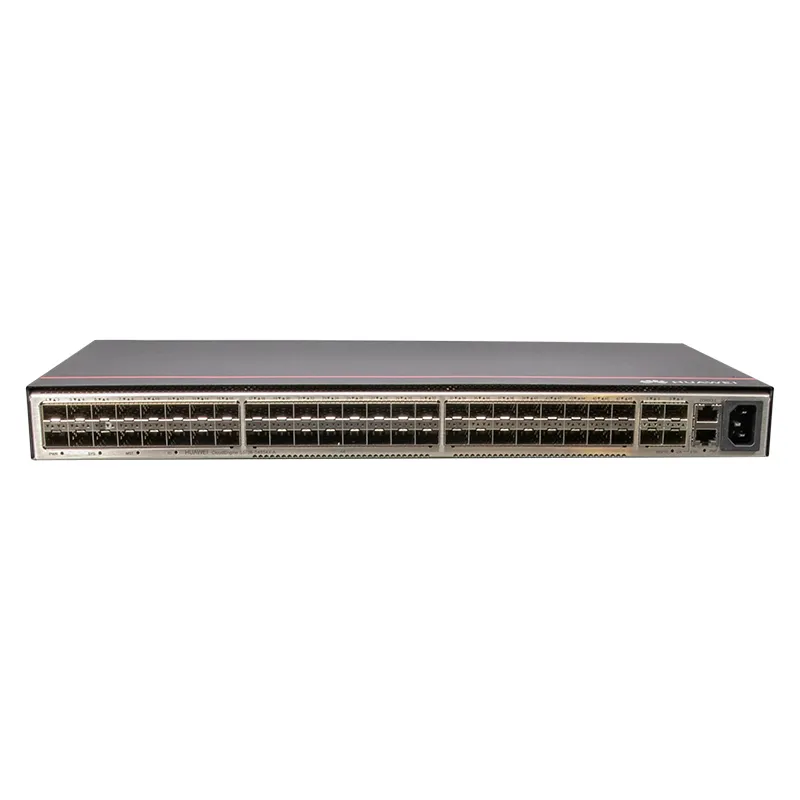

S5736-S48S4X-A base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, AC power supply, front access)

$Quote1 Pieces ( MOQ )

Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Brand

Huawei

Warranty

1 Year

Part Number

98011606

Model

S5736-S48S4X-A

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.4 in. x 9.0 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.)

Chassis height [U]

1 U

Weight without packaging [kg(lb)]

3.6 kg (7.9 lb)

Weight with packaging [kg(lb)]

4.7 kg (10.36 lb)

Typical power consumption [W]

87 W

Typical heat dissipation [BTU/hour]

296.85 BTU/hour

Maximum power consumption [W]

111 W

Maximum heat dissipation [BTU/hour]

378.74 BTU/hour

Static power consumption [W]

39 W

MTBF [years]

41.97 years

MTTR [hours]

2 hours

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

56.8 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

44.8 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

3

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC

Maximum input current [A]

6.0 A

Memory

2 GB

Flash memory

1 GB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Not supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification, Safety certification, Manufacturing certification
