**Lenovo ThinkSystem SR630 V3 Rack Server**
A high-performance, versatile 1U rack server engineered for demanding workloads like AI, virtualization, and cloud computing. Features 4th Gen Intel Xeon Scalable Processors, support for up to 2TB DDR5 memory, and PCIe Gen5 expansion for ultra-fast data throughput. Offers flexible storage with up to 32 NVMe drives, 25/100 GbE networking, and energy-efficient design. Enhanced by Lenovo’s XClarity management tools for seamless automation and security. Combines scalability, density, and reliability, ideal for enterprises prioritizing agility, reduced TCO, and future-proof infrastructure.
Increased performance and reduced power consumption with a dash of wow.
The dual processor ThinkSystem SR630 V3 server is a 1U server maximized for performance. With the 5th Gen Intel ® Xeon ® Scalable processors it provides better performance over the previous generation. When you factor in 32 DIMMs of DDR5 memory, PCIe Gen5 technology, up to EDSFF E1.S drives thru direct NVMe, it offers the speed and density desired by cloud service providers and enterprises
Lenovo innovation increases performance in the SR630 V3 while reducing power consumption by adding in optional Neptune™ liquid cooling.
Next-gen workloads handled at the flip of a switch
Processing power is king when it comes to new applications and technology. Applications are evolving and requirements are changing creating next-gen workloads. Cloud Service providers and Enterprise applications require the ability to scale up and down easily to efficiently manage these workloads and their client’s needs. The SR630 V3 is designed with flexible storage, support for PCIe Gen5, intuitive data management, and security.
Easy management and enhanced security in one smart server.
The SR630 V3 includes Lenovo ThinkShield security software. ThinkShield prevents, detects and remediates against attacks, providing security in the supply chain, below the OS in the server, and from the OS to the cloud. The XClarity system manager simplifies infrastructure processes saving time during deployments, handling faults, and adding new servers to the network. It also adds security by monitoring log events and letting you choose from 3 security modes.
Tech Specs
Form Factor/Height
1U rack server
Processor
Up to 2x 5th Gen Intel ® Xeon ® Scalable processors, up to 64 cores and 350W TDP
Drive Bays

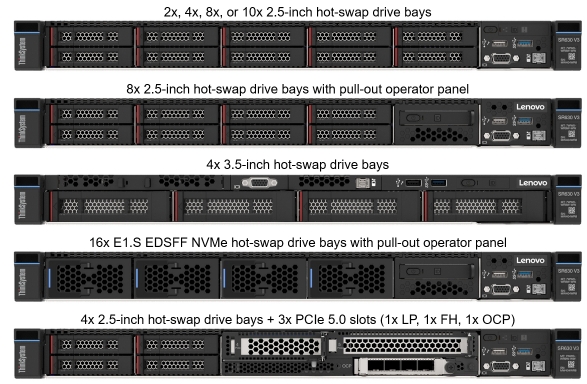

Up to 4x 3.5” or 12x 2.5” or 16x EDSFF E1.S drives
Front: up to 4x 3.5” / 10x 2.5” /16x EDSFF E1.short hot swap drives
Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID
Internal 2x M.2 SATA/NVMe boot drives, support RAID
Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
Memory
Supports up to 32x TruDDR5 3DS/RDIMMs
Expansion Slots
Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot
GPUs
Up to 3x single-width 75W GPUs
Network Interface
LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
Ports

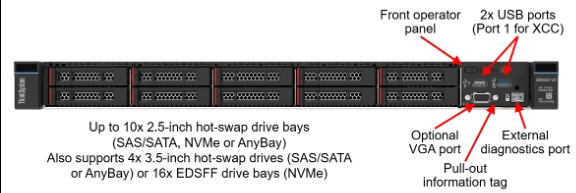

Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)
Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)
HBA/RAID Support
SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
Power
Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum
Systems Management
Lenovo XClarity Controller
OSes Supported
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.
Limited Warranty
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
The Lenovo ThinkSystem SR630 V3 Rack Server is a high-performance, versatile solution designed for enterprise workloads. It features the latest Intel Xeon Scalable processors, delivering exceptional computing power and efficiency. With its flexible storage options, extensive memory capacity, and advanced security features, the SR630 V3 is ideal for a wide range of applications, from cloud computing to data analytics. Its robust design ensures reliability and scalability, making it a perfect choice for businesses seeking to optimize their IT infrastructure.
Brand
Lenovo
Products Status
New
Model
7D73CTO1WW
Form Factor
1U
Application
Server
Manufacturer
Lenovo
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
