| Dimension | Form factor: 2U Height: 87 mm (3.43 inches) Width: 448 mm (17.64 inches) Depth: 536 mm (21.1 inches) |
|---|---|
| Weight | 28.78 kg (63.45 lb) |
| Processor | Two 64-bit 2-core, Broadwell DE 2.20 GHz processors |
| System memory | 16 GB (8 GB per controller) or 64 GB (32 GB per controller) |
| Supported drives | 3.5-inch NL-SAS drives 2.5-inch SAS SSD/HDD drives in a 3.5-inch adapter tray |
| Supported expansion shelves | DE120S, DE240S, DE600S |
| System Maximums and Limits | Max. raw capacity using 16 TB 3.5” HDD and 15.36 TB 2.5” SSD: 3.07 PB Max. HDD drive count: 192 Max. SSD drive count: 120 Max. expansion count: Max. 2U12 expansion count: 7 Max. 2U24 expansion count: 3 Max. 4U expansion count: 3 Max. volume count: 512 Max. drives per disk pool: 96 Max. disk pool volumes: 512 Max. Vol size for a disk pool volume (TB): 4096 Max. disk pools: 20 Max partitions: 128 Max volumes per partition: 256 SSD Read Cache -> Maximum system-wide capacity allowed: 3,725.290 GiB Max destaging cache-to-flash size: 8 GB |
| Interfaces | Available with the following interfaces: 16Gb or 32Gb Fibre Channel 12Gb SAS 10Gb or 25Gb iSCSI 10Gb iSCSI BaseT (RJ-45) |
| System clearance dimension | The clearance needed for proper ventilation and heat dissipation is as follows: Front: 813 mm (32.02 inches) Rear: 610 mm (24.02 inches) |
| Power input | Input power voltage: Low range: 100–120 V ac High range: 200–240 V ac |

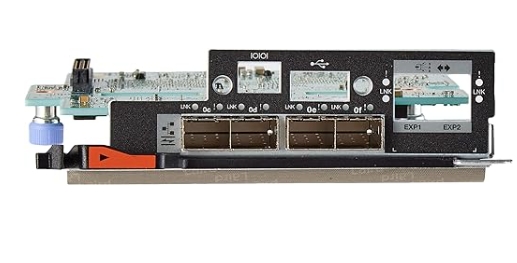

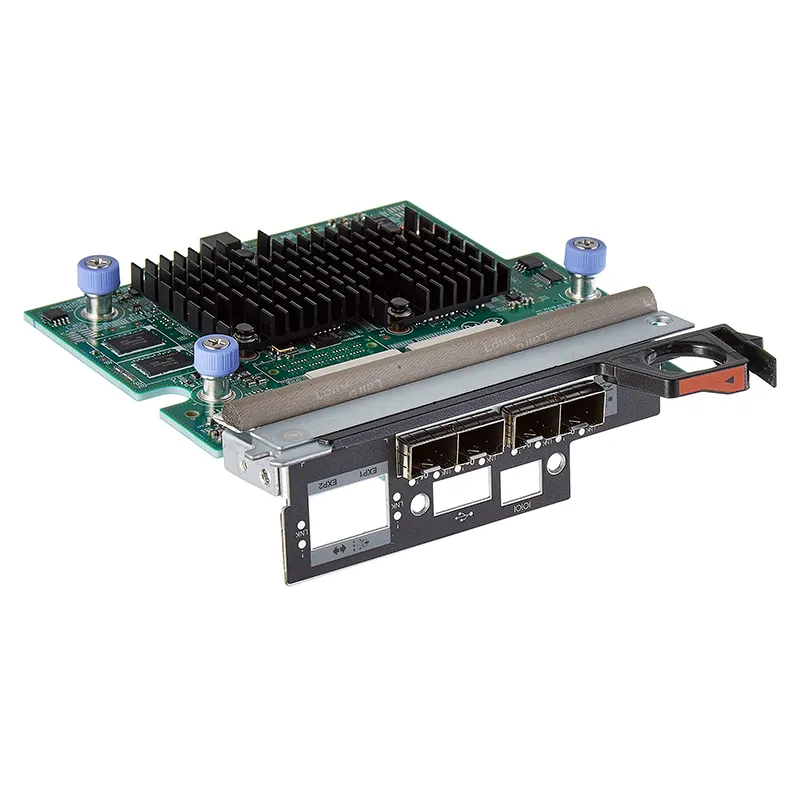

lenovo de4000 4C57A14368 – Lenovo ThinkSystem DE4000 HIC, 32Gb FC, 4 Ports – 32 Gbit/s – 4 x Total Fibre Channel Port(s)
The Lenovo ThinkSystem DE4000 HIC (4C57A14368) is a high-performance 32Gb Fibre Channel host interface card featuring four ports, each delivering 32 Gbit/s speeds for rapid, reliable data transfer in enterprise environments. Designed for data-intensive workloads, it ensures low latency, scalability, and seamless integration with existing infrastructure. Key benefits include robust connectivity for critical applications, energy-efficient operation, and full compatibility with Lenovo’s ecosystem, offering a future-proof solution for high-availability storage demands.
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
