DESCRIPTION

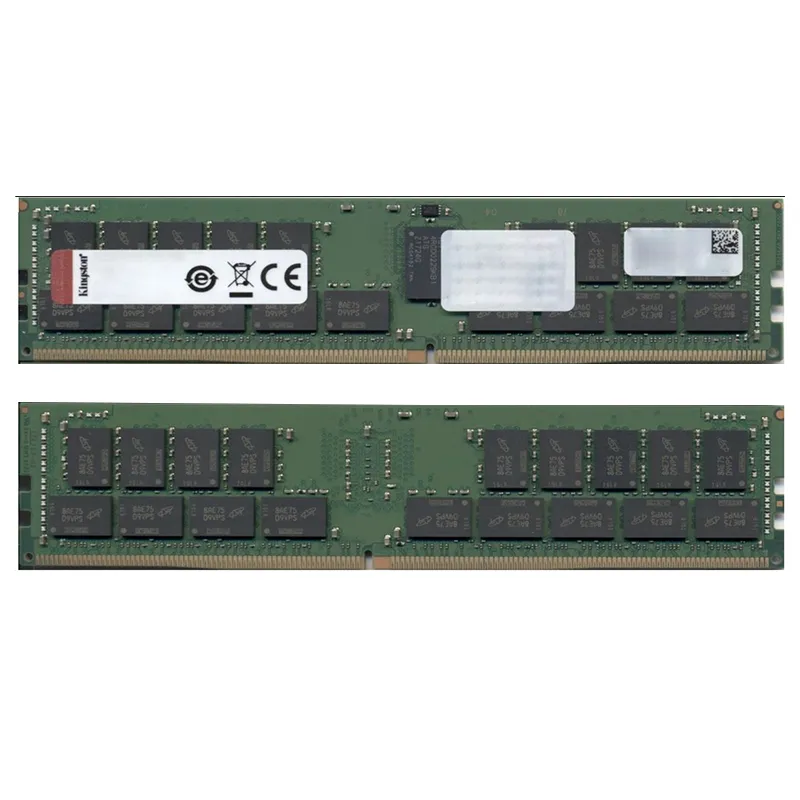

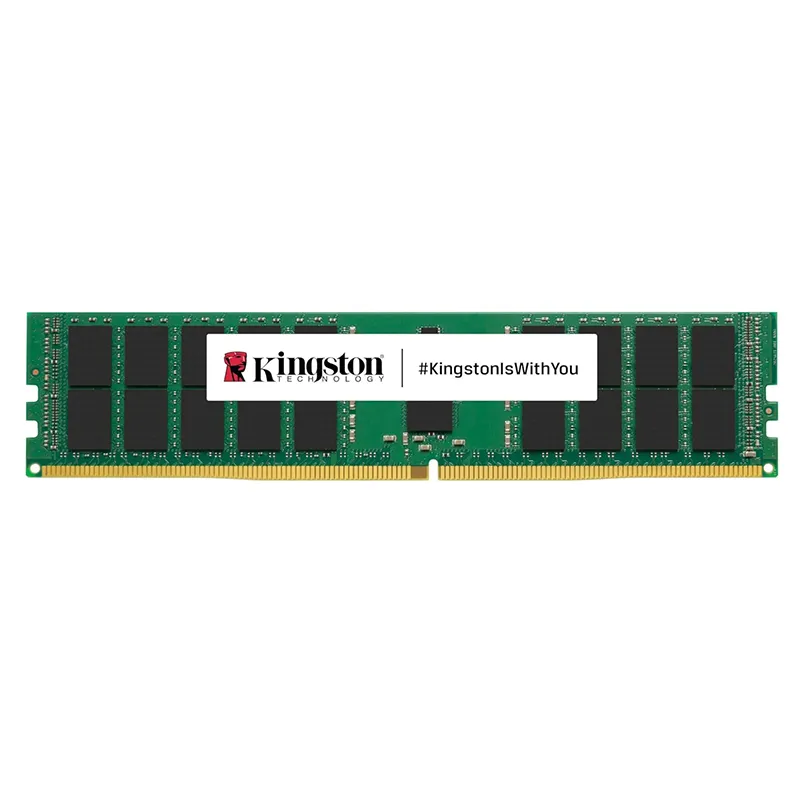

Kingston’s KSM26RD8/16MRR is a 2G x 72-bit (16GB)
DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx8, ECC, memory module, based on eighteen 1G x
8-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each
288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:
FEATURES
? Power Supply: VDD = 1.2V
? VDDQ = 1.2V
? VPP = 2.5V
? VDDSPD = 2.41V to 2.75V
? Functionality and operations comply with the DDR4 SDRAM datasheet
? 16 internal banks
? Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available
? Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
? Bi-Directional Differential Data Strobe
? 8 bit pre-fetch
? Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
? Supports ECC error correction and detection
? On-Die Termination (ODT)
? Temperature sensor with integrated SPD
? This product is in compliance with the RoHS directive.
? Per DRAM Addressability is supported
? Internal Vref DQ level generation is available
? Write CRC is supported at all speed grades
? CA parity (Command/Address Parity) mode is supported
