Memory Types | DDR4 1600/1866/2133 |
---|---|
Code Name | Haswell |
Max # of Memory Channels | 4 |
TDP | 120 W |
Hyper-Threading Support | Yes |
Model | CM8064401439612 |
Total Threads | 24 |
Physical Address Extensions | 46-bit |
Manufacturing Tech | 22 nm |
PCI Express Revision | 3 |
Max CPU Configuration | 2 |
PCI Express Configurations | x16, x4, x8 |
Bus Speed | 9.6 GT/s |
ECC Memory Supported | Yes |
Brand | Intel |
Embedded Options Available | Yes |
Processor Base Frequency | 2.50 GHz |
Scalability | 2S |
Max Turbo Frequency | 3.30 GHz |
64-Bit Support | Yes |
Series | Intel Xeon Processor E5 v3 Family |
Package Size | 52.5mm x 45mm |
Max # of PCI Express Lanes | 40 |
Max Memory Bandwidth | 68 GB/s |
CPU Socket Type | |
Application | Server |
Cache | 30 MB |
Part Number | E5-2680V3 |
Total Cores | 12 |
Max Memory Size | 768 GB |
Products Status | New |
Instruction Set | 64-bit |

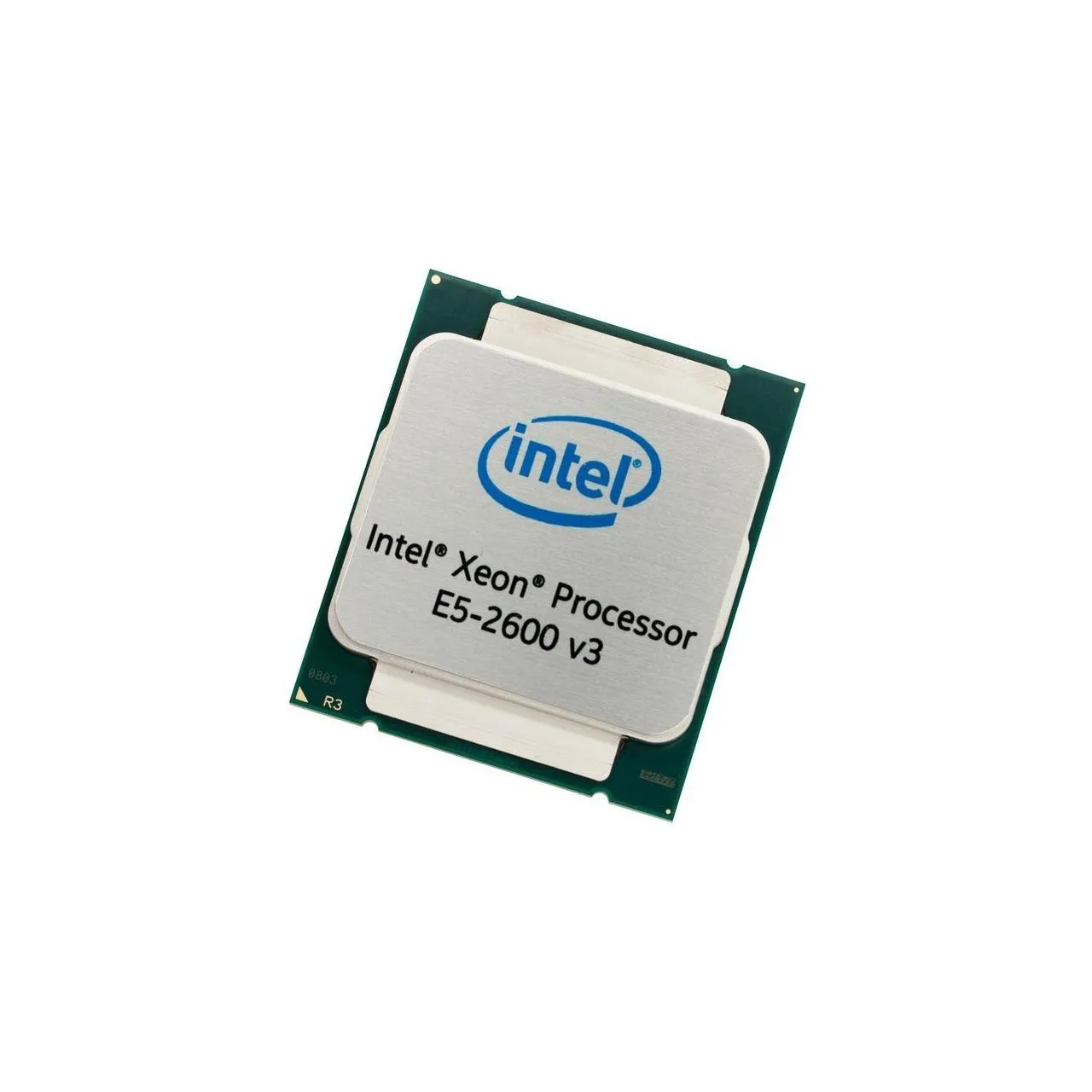

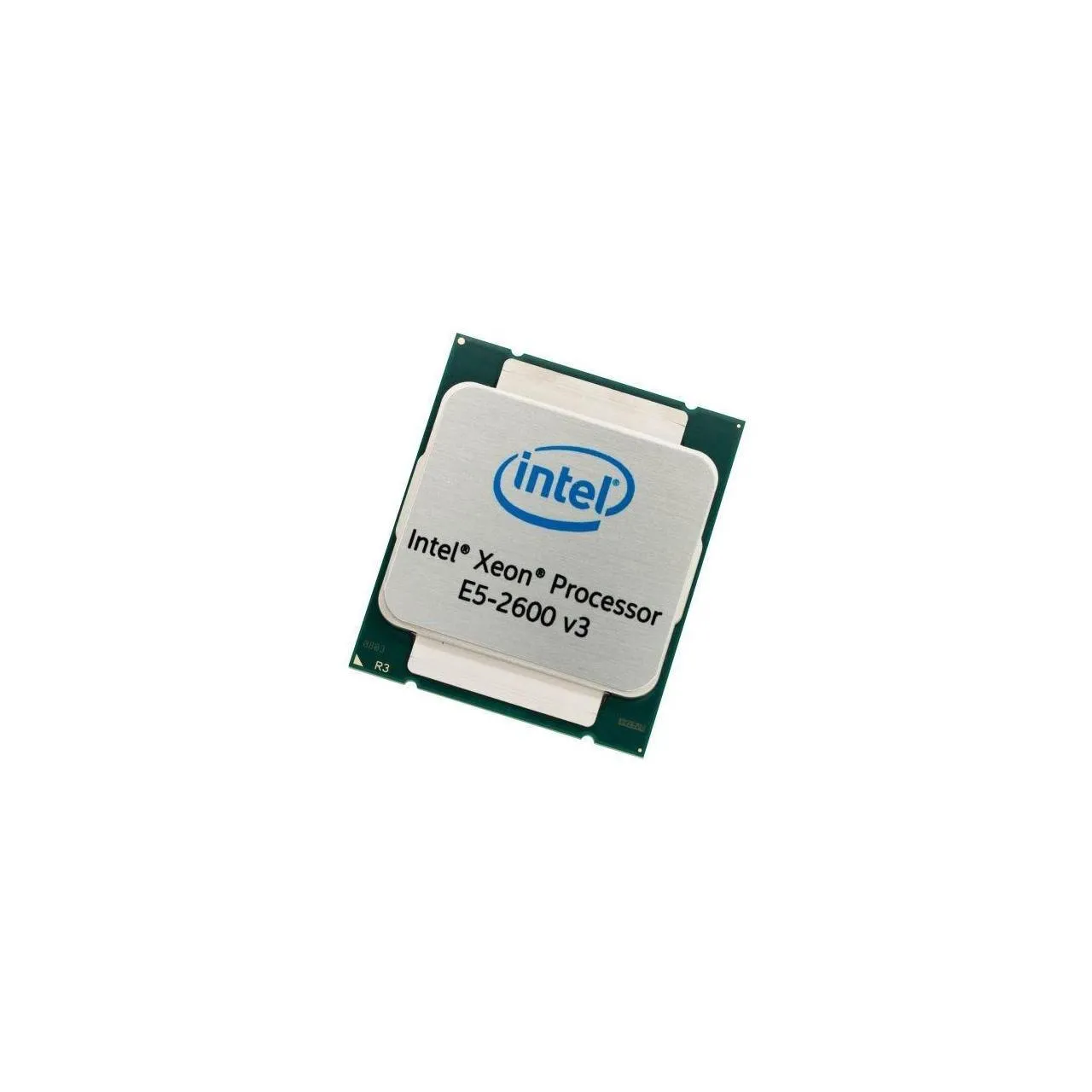

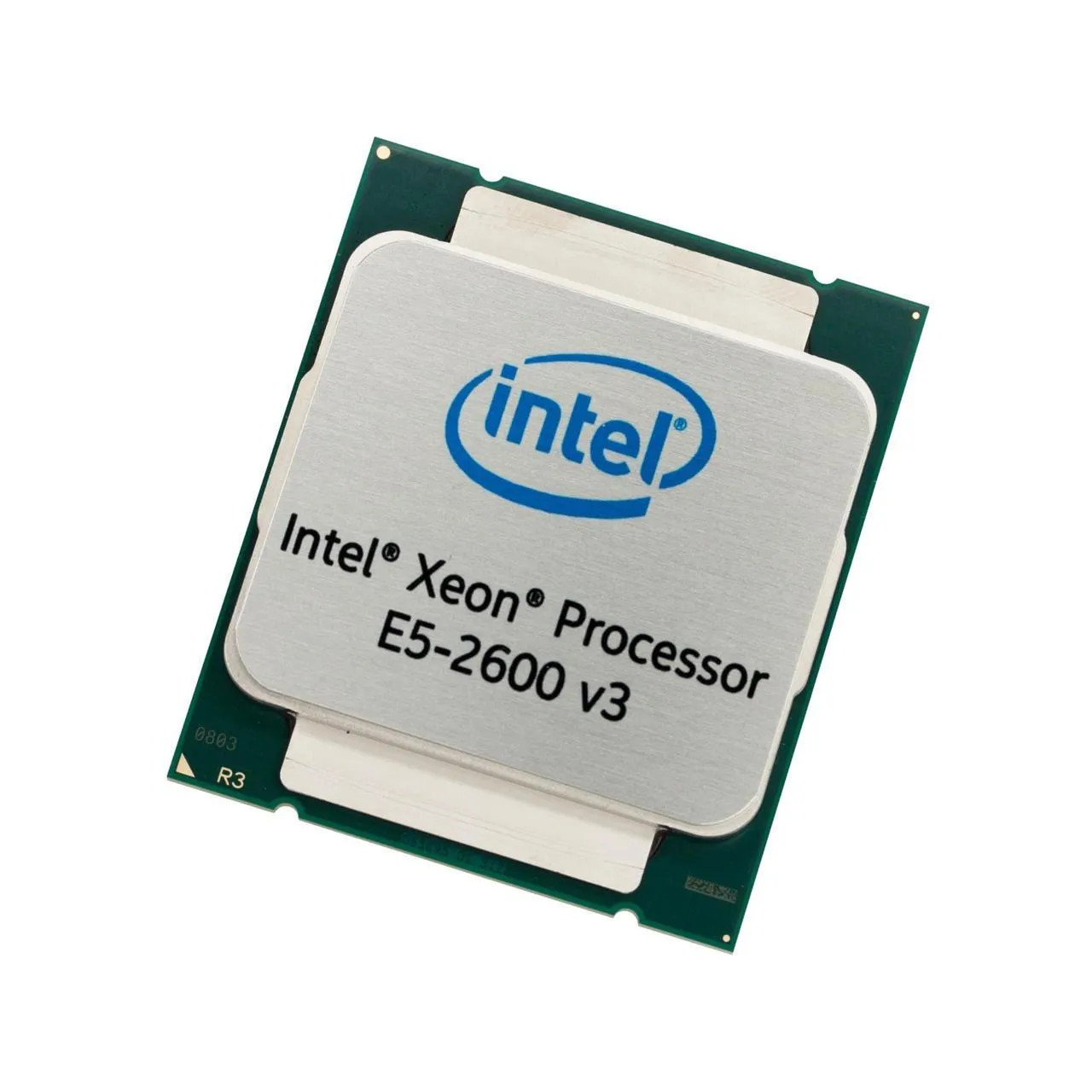

Intel Xeon E5-2680 v3 Haswell 2.5 GHz 12 x 256KB L2 Cache 30 MB L3 Cache LGA 2011-3 120W CM8064401439612 Server Processor
**Intel Xeon E5-2680 v3 Haswell Processor**
A high-performance 12-core/24-thread server CPU designed for demanding workloads, featuring a 2.5 GHz base clock (up to 3.3 GHz Turbo Boost), 30 MB L3 cache, and 12x256KB L2 cache for rapid data access. Built on the LGA 2011-3 socket with a 120W TDP, it excels in virtualization, data analytics, and enterprise applications. Key benefits include robust multi-threaded performance, energy efficiency, and support for DDR4-2133 RAM (up to 768GB). Unique selling points: scalable architecture for multi-processor setups, reliability for 24/7 operations, and cost-effective power for compute-intensive tasks in data centers or cloud environments.
