Memory Types | DDR4 1600/1866/2133/2400 |
---|---|
Code Name | Broadwell |
Max # of Memory Channels | 4 |
TDP | 65 W |
Hyper-Threading Support | Yes |
Model | CM8066002033006 |
Total Threads | 28 |
Physical Address Extensions | 46-bit |
Manufacturing Tech | 14 nm |
PCI Express Revision | 3 |
Max CPU Configuration | 2 |
PCI Express Configurations | x16, x4, x8 |
Bus Speed | 9.6 GT/s |
ECC Memory Supported | Yes |
Brand | Intel |
Embedded Options Available | No |
Processor Base Frequency | 1.70 GHz |
Scalability | 2S |
Max Turbo Frequency | 2.50 GHz |
64-Bit Support | Yes |
Series | Intel Xeon E5 v4 |
Package Size | 45mm x 52.5mm |
Max # of PCI Express Lanes | 40 |
Max Memory Bandwidth | 76.8 GB/s |
CPU Socket Type | |
Application | Server |
Cache | 35 MB |
Part Number | E5-2650LV4 |
Total Cores | 14 |
Max Memory Size | 1.5 TB |
Products Status | New |
Instruction Set | 64-bit |

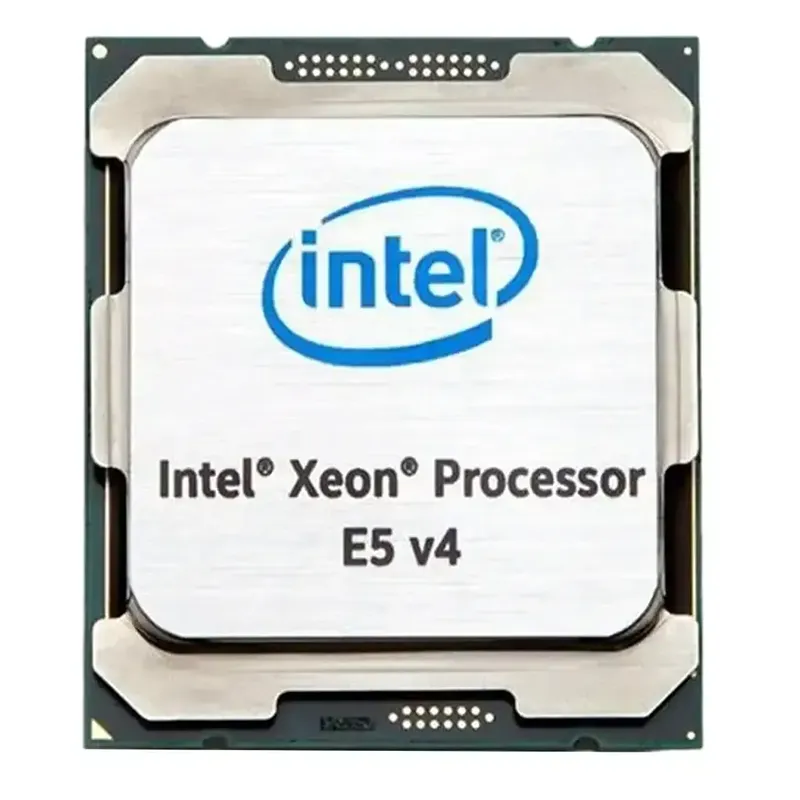

Intel Xeon E5-2650L v4 Broadwell 1.7 GHz 14 x 256KB L2 Cache 35MB L3 Cache LGA 2011-3 65W CM8066002033006 Server Processor
**Intel Xeon E5-2650L v4 Broadwell Processor**: A low-power, high-efficiency server CPU featuring 14 cores (28 threads) at 1.7 GHz base clock, optimized for scalable performance in data-intensive environments. Boasts 35MB L3 cache and 65W TDP, delivering exceptional power efficiency for dense server setups, cloud computing, and virtualization. Key strengths include robust multitasking via hyper-threading, support for LGA 2011-3 systems, and advanced reliability with ECC memory compatibility. Combines enterprise-grade performance with energy savings, ideal for 24/7 operations requiring reduced heat output and operational costs. Unique selling points: High core count paired with ultra-low power consumption, enabling cost-effective, high-density deployments without compromising on throughput or stability.
