| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Server |
| CPU Socket Type | |
| Total Threads | 20 |
| Total Cores | 10 |
| Cache | 25 MB |
| TDP | 105 W |
| Manufacturing Tech | 22 nm |
| Processor Base Frequency | 2.30 GHz |
| Memory Types | DDR4 1600/1866/2133 |
| Series | Intel Xeon Processor E5 v3 Family |
| Part Number | E5-2650V3 |
| Model | CM8064401723701 |
| Hyper-Threading Support | Yes |
| Max Memory Size | 768 GB |
| Code Name | Haswell |
| Max Turbo Frequency | 3.00 GHz |
| 64-Bit Support | Yes |
| Max # of Memory Channels | 4 |
| Max # of PCI Express Lanes | 40 |
| PCI Express Revision | 3 |
| Package Size | 52.5mm x 45mm |
| Embedded Options Available | No |
| Scalability | 2S |
| ECC Memory Supported | Yes |
| Max CPU Configuration | 2 |
| Instruction Set | 64-bit |
| PCI Express Configurations | x16, x4, x8 |
| Max Memory Bandwidth | 68 GB/s |
| Bus Speed | 9.6 GT/s |
| Physical Address Extensions | 46-bit |

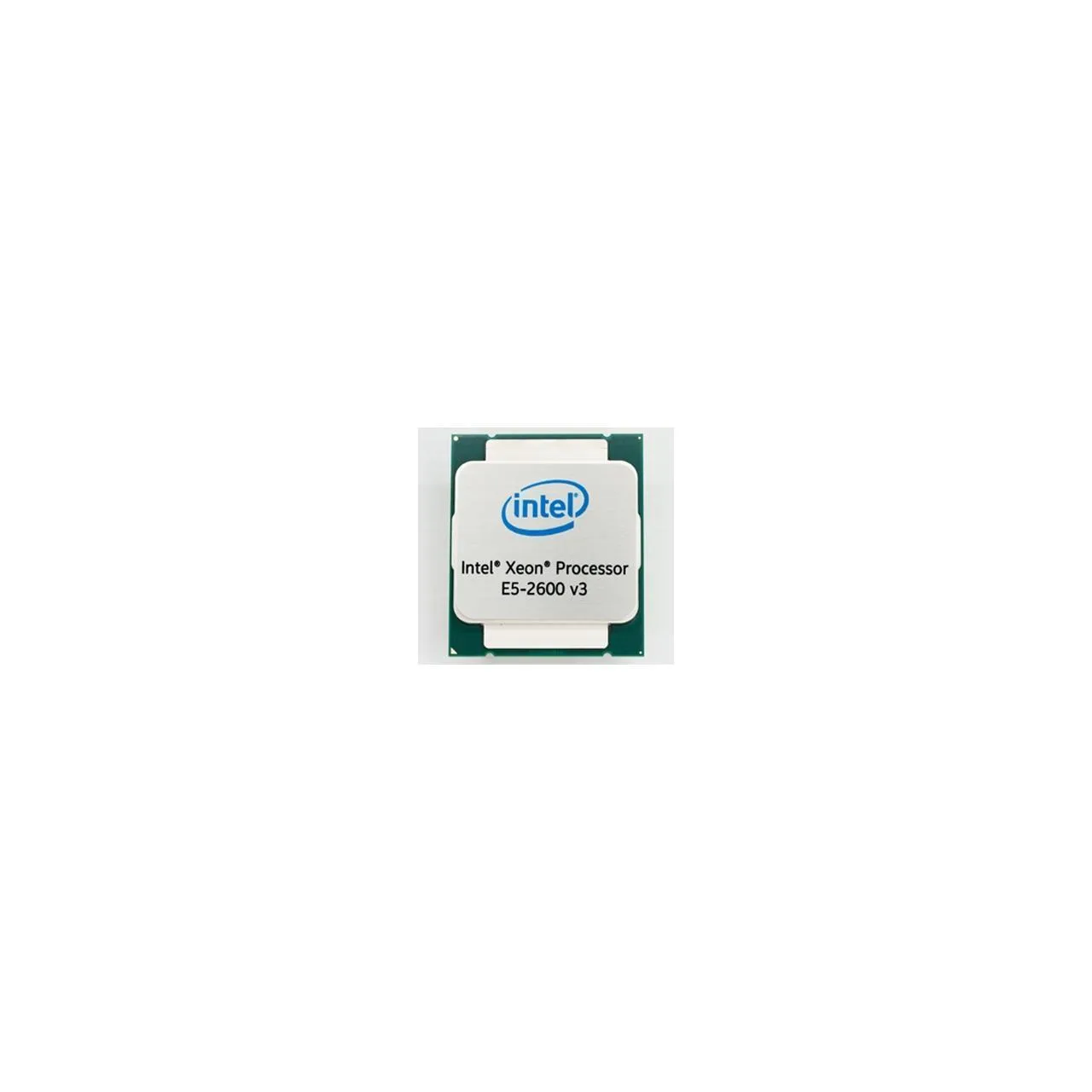

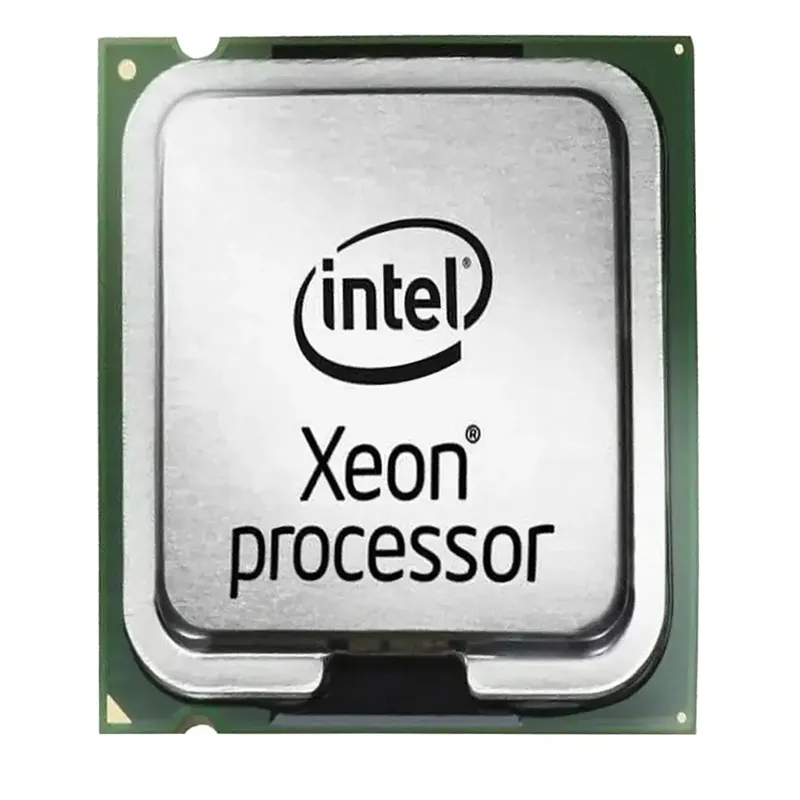

Intel Xeon E5-2650 v3
**Intel Xeon E5-2650 v3: High-Performance Server/Workstation Processor**
A 10-core/20-thread CPU with 2.3GHz base clock (up to 3.0GHz Turbo Boost), 25MB cache, and 105W TDP, designed for enterprise workloads. Features DDR4-2133 support with ECC memory, 40 PCIe 3.0 lanes, and advanced Intel technologies like Hyper-Threading, Turbo Boost, and virtualization (VT-x/VT-d). Ideal for data centers, cloud computing, and HPC environments, it delivers scalable multitasking, robust reliability, and energy efficiency. Unique for its balance of high core density, memory bandwidth, and enterprise-grade RAS capabilities, ensuring optimal performance in mission-critical applications.
