Memory Types | DDR4 1600/1866/2133 |
---|---|
Code Name | Broadwell |
Max # of Memory Channels | 4 |
TDP | 85 W |
Hyper-Threading Support | Yes |
Model | CM8066002032301 |
Total Threads | 20 |
Physical Address Extensions | 46-bit |
Manufacturing Tech | 14 nm |
PCI Express Revision | 3 |
Max CPU Configuration | 2 |
PCI Express Configurations | x16, x4, x8 |
Bus Speed | 8 GT/s |
ECC Memory Supported | Yes |
Brand | Intel |
Embedded Options Available | No |
Processor Base Frequency | 2.20 GHz |
Scalability | 2S |
Max Turbo Frequency | 3.10 GHz |
64-Bit Support | Yes |
Series | Intel Xeon E5 v4 |
Package Size | 45mm x 52.5mm |
Max # of PCI Express Lanes | 40 |
Max Memory Bandwidth | 68.3 GB/s |
CPU Socket Type | FCLGA2011 |
Application | Server |
Cache | 25 MB |
Part Number | E5-2630V4 |
Total Cores | 10 |
Max Memory Size | 1.5 TB |
Products Status | New |
Instruction Set | 64-bit |

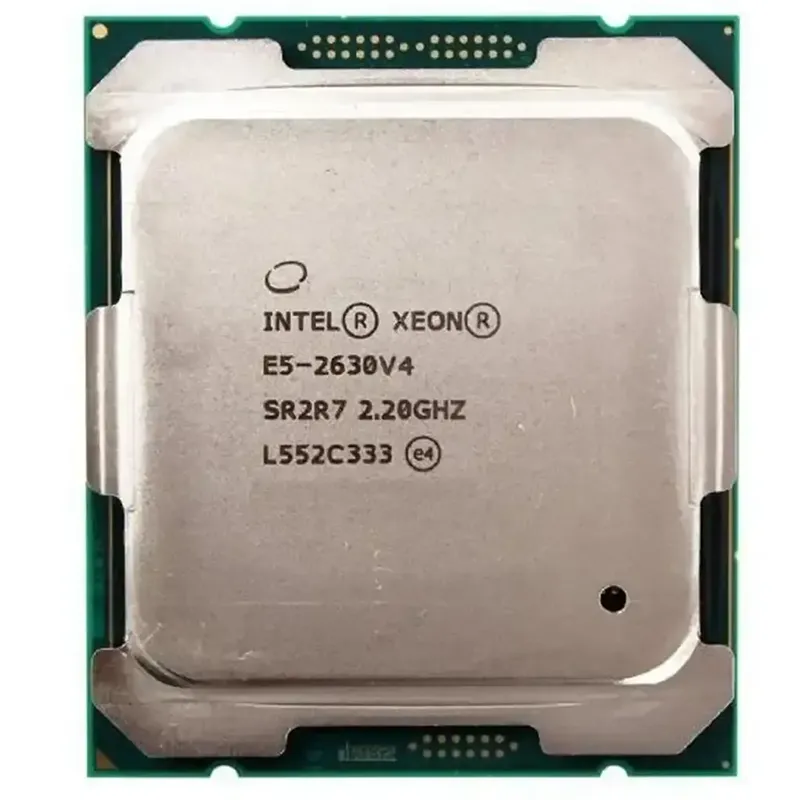

Intel Xeon E5-2630 v4 Broadwell 2.2 GHz 10 x 256KB L2 Cache 25MB L3 Cache LGA 2011-3 85W CM8066002032301 Server Processor
A high-performance 10-core/20-thread CPU designed for enterprise workloads, featuring a 2.2 GHz base clock (up to 3.1 GHz Turbo) and 25MB L3 cache for rapid data access. Built on Broadwell architecture, it balances power efficiency (85W TDP) with robust multitasking, ideal for virtualization, data analytics, and cloud hosting. Supports LGA 2011-3 platforms, ECC memory, and 40 PCIe lanes for scalability and reliability in mission-critical environments. Combines large cache, advanced security, and energy-conscious design to deliver dependable server performance with lower operational costs.
