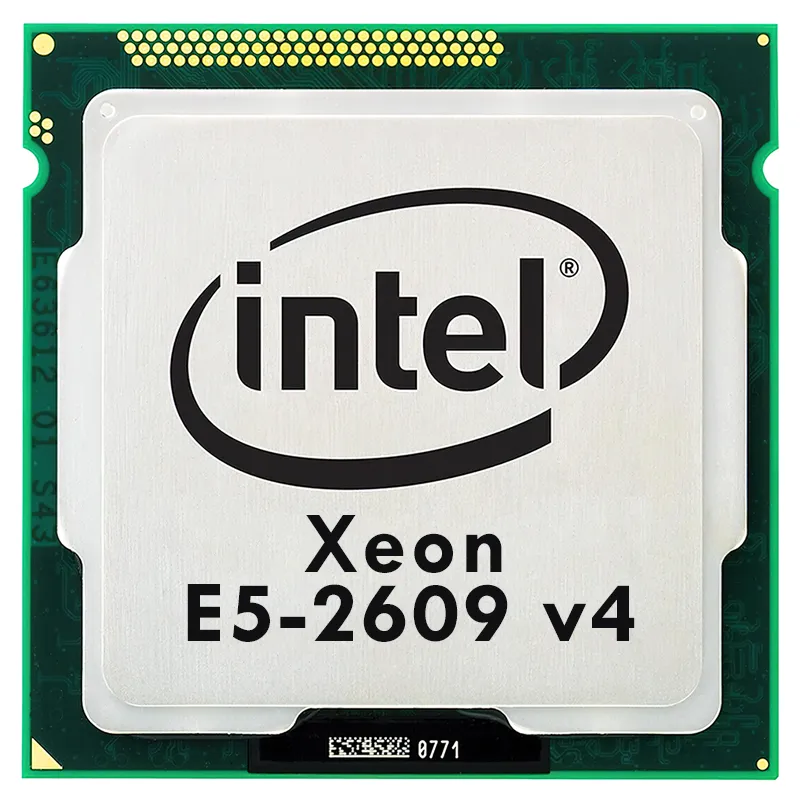

Intel Xeon E5-2609 v4 Broadwell-EP 1.7 GHz 8 x 256KB L2 Cache 20MB L3 Cache LGA 2011-3 85W BX80660E52609V4 Server Processor

**Intel Xeon E5-2609 v4 Processor**: An energy-efficient 8-core server CPU built on Broadwell-EP architecture, featuring a 1.7 GHz base clock, 20MB L3 cache, and 85W TDP. Optimized for scalable, multi-threaded workloads, it delivers reliable performance for virtualization, cloud, and enterprise applications while minimizing power consumption. Key strengths include LGA 2011-3 compatibility, robust data-handling via large cache, and cost-effective stability for data centers.

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

At the heart of your versatile data center, the powerful new Intel Xeon processor E5-2600 v4 product family offers great performance, enhanced orchestration and security across diverse workloads. They are manufactured with 14nm process technology and feature up to 22 cores/44 threads. From virtualization and cloud computing to design automation or real-time financial transactions, you’ll be delighted by better than ever performance and energy efficiency. They also support PCIe 3.0, have AES New Instructions and AVX 2.0 Instruction Set Extensions – power the future of your high-performance computing.

Memory Types

DDR4 1600/1866

Code Name

Broadwell

Max # of Memory Channels

4

TDP

85 W

Hyper-Threading Support

No

Model

BX80660E52609V4

Total Threads

8

Physical Address Extensions

46-bit

Manufacturing Tech

14 nm

PCI Express Revision

3

Max CPU Configuration

2

PCI Express Configurations

x16, x4, x8

Bus Speed

6.4 GT/s

ECC Memory Supported

Yes

Brand

Intel

Embedded Options Available

Yes

Processor Base Frequency

1.70 GHz

Scalability

2S

64-Bit Support

Yes

Series

Intel Xeon E5 v4

Package Size

45mm x 52.5mm

Max # of PCI Express Lanes

40

Max Memory Bandwidth

59.7 GB/s

CPU Socket Type

Application

Server

Cache

20 MB

Part Number

E5-2609V4

Total Cores

8

Max Memory Size

1.5 TB

Products Status

New

Instruction Set

64-bit
