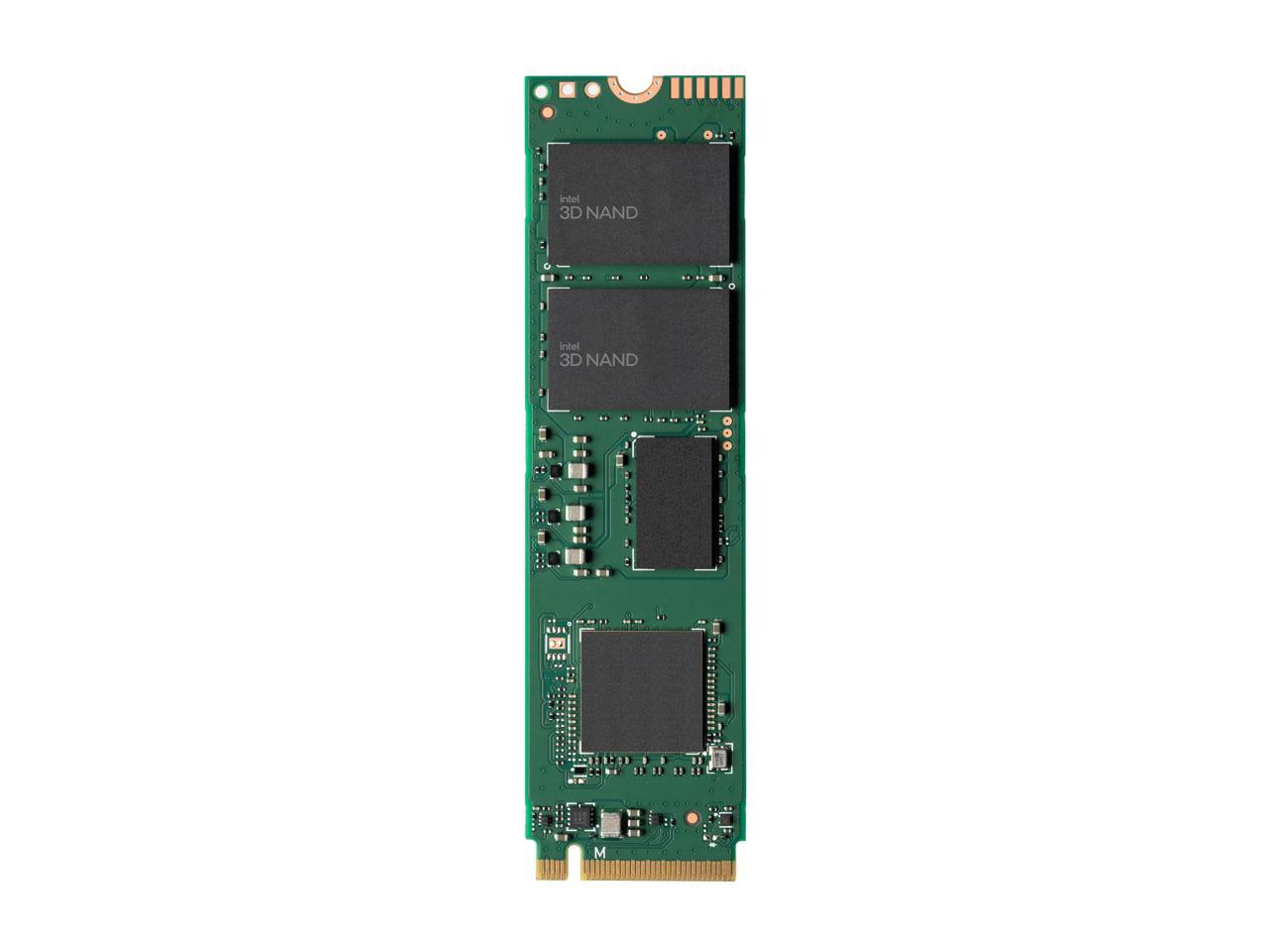

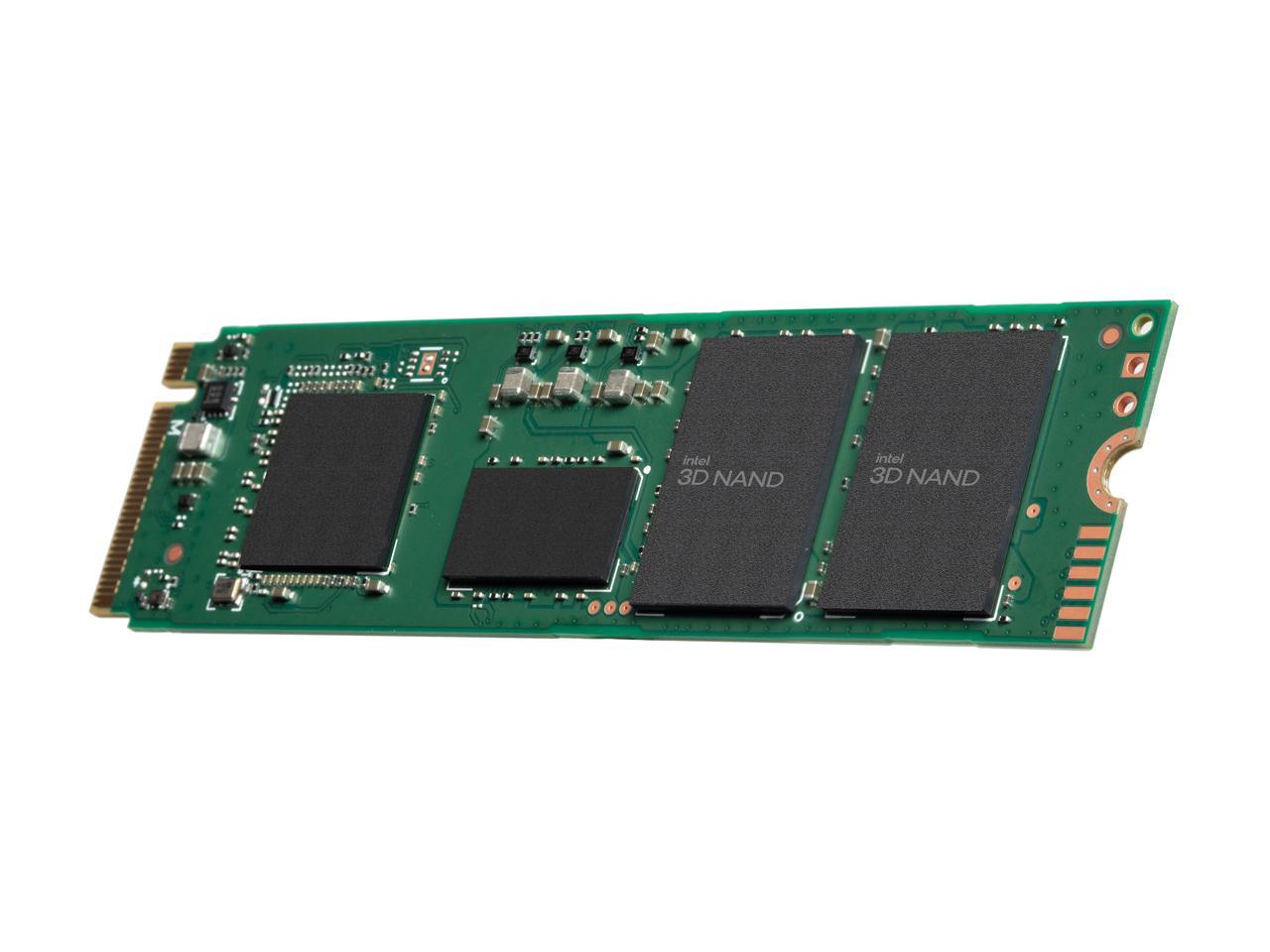

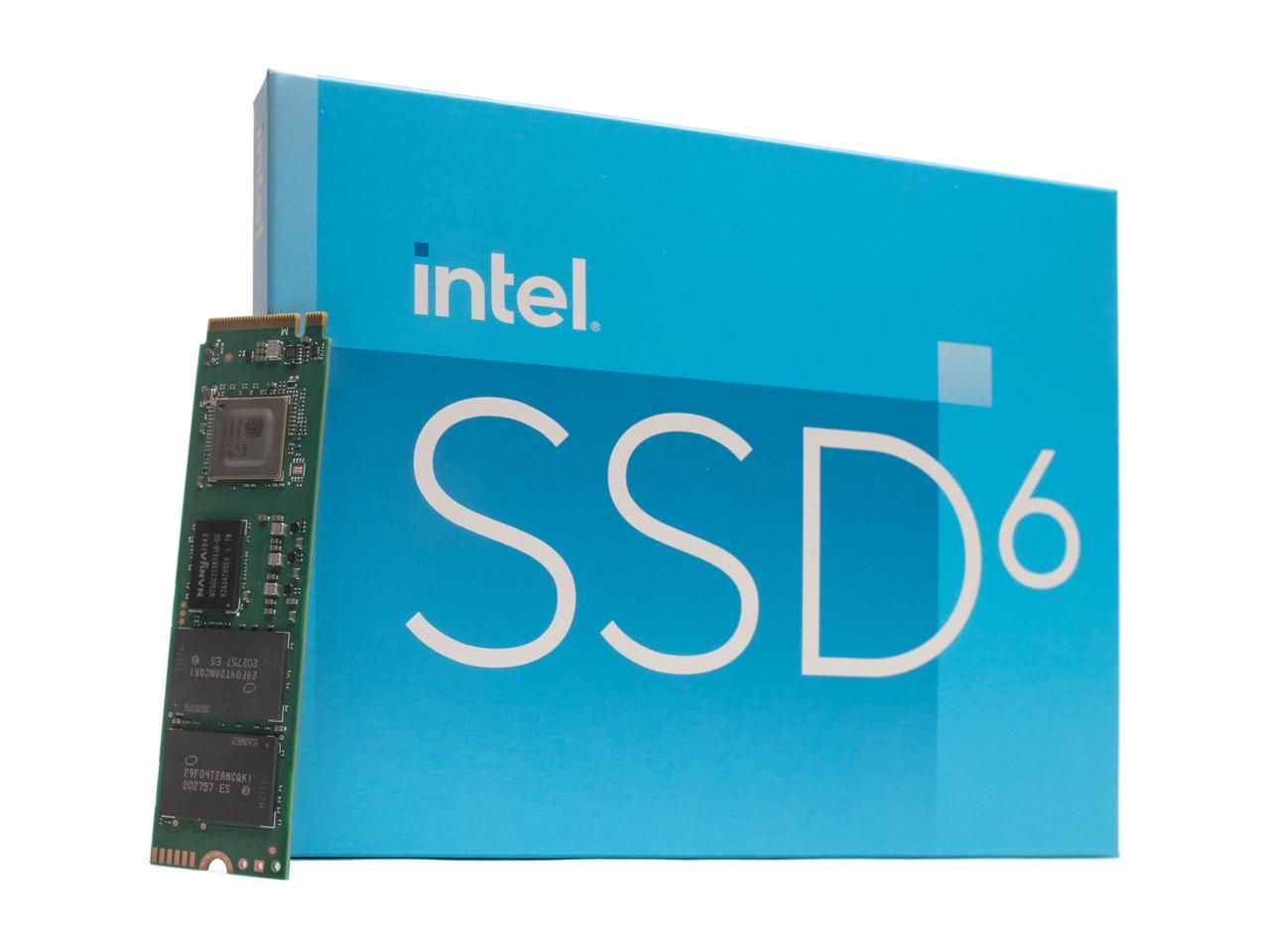

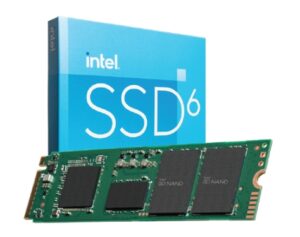

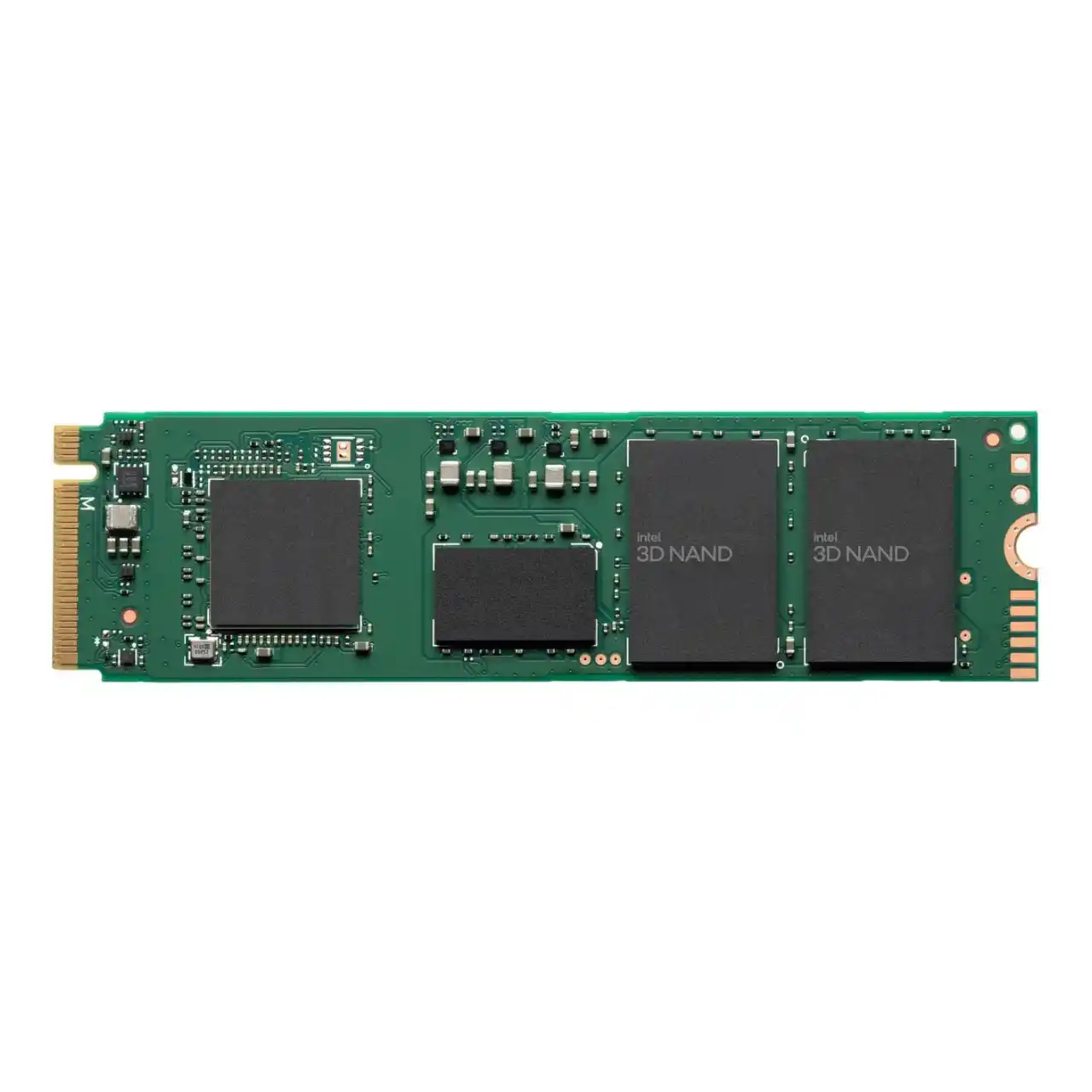

Intel 670p Series M.2 2280 512GB PCIe NVMe 3.0 x4 QLC Internal Solid State Drive (SSD) SSDPEKNU512GZX1

Next gen QLC NAND SSD brings improved performance, storage responsiveness, and endurance with high capacity.

Intel QLC technology and industry leadership brings the performance and capacity needed for today’s PC storage needs, including performance storage and the ability to manage high volumes of data. Now available is the Intel SSD 670p 144-layer QLC-based Client SSD.

Performance, endurance and capacity—all in a single, affordable
PC drive

With up to 2TB capacity on a single drive, the Intel SSD 670p offers great value for everyday computing, optimized productivity and mainstream gaming. The thin M.2 80mm form factor is powered by Intel’s innovative QLC technology and perfect for notebooks, desktops and mobile devices.

The Intel SSD 670p includes the latest QLC technology with numerous performance improvements, including nearly 2x sequential read and a 20% endurance improvement compared to the previous gen Intel QLC 3D NAND SSD.1 Now, a capacity-optimized SSD with NVMe (or PCIe) performance offers the right balance for everyday computing needs.

Brand	Intel
Products Status	New
Application	Desktop
Series	Intel 670p
Model	SSDPEKNU512GZX1
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	512GB
Memory Components	3D4 QLC
Interface	PCIe 3.0 x4, NVMe
Max Sequential Read	Up to 3000 MBps
Max Sequential Write	Up to 1600 MBps
4KB Random Read	Up to 110,000 IOPS
4KB Random Write	Up to 315,000 IOPS
Terabytes Written (TBW)	185TB
MTBF	1,600,000 hours
Power Consumption (Idle)	25 mW
Power Consumption (Active)	80 mW
Operating Temperature	0°C ~ +70°C
Max Shock Resistance	Non Operation; 1,500G/0.5 ms, Operating; 1,000G/0.5 ms
Max Vibration Resistance	2.17 GRMS (5-700 Hz)
Height	2.38mm
Width	22.00mm
Depth	80.00mm
