- 2.5″ x 15mm, U.2 Form Factor
- Intel Optane Media
- PCIe NVMe 4.0 x4
- Very high endurance – 73,000 TBW (100 DWPD)
- Optimize for write intensive workloads

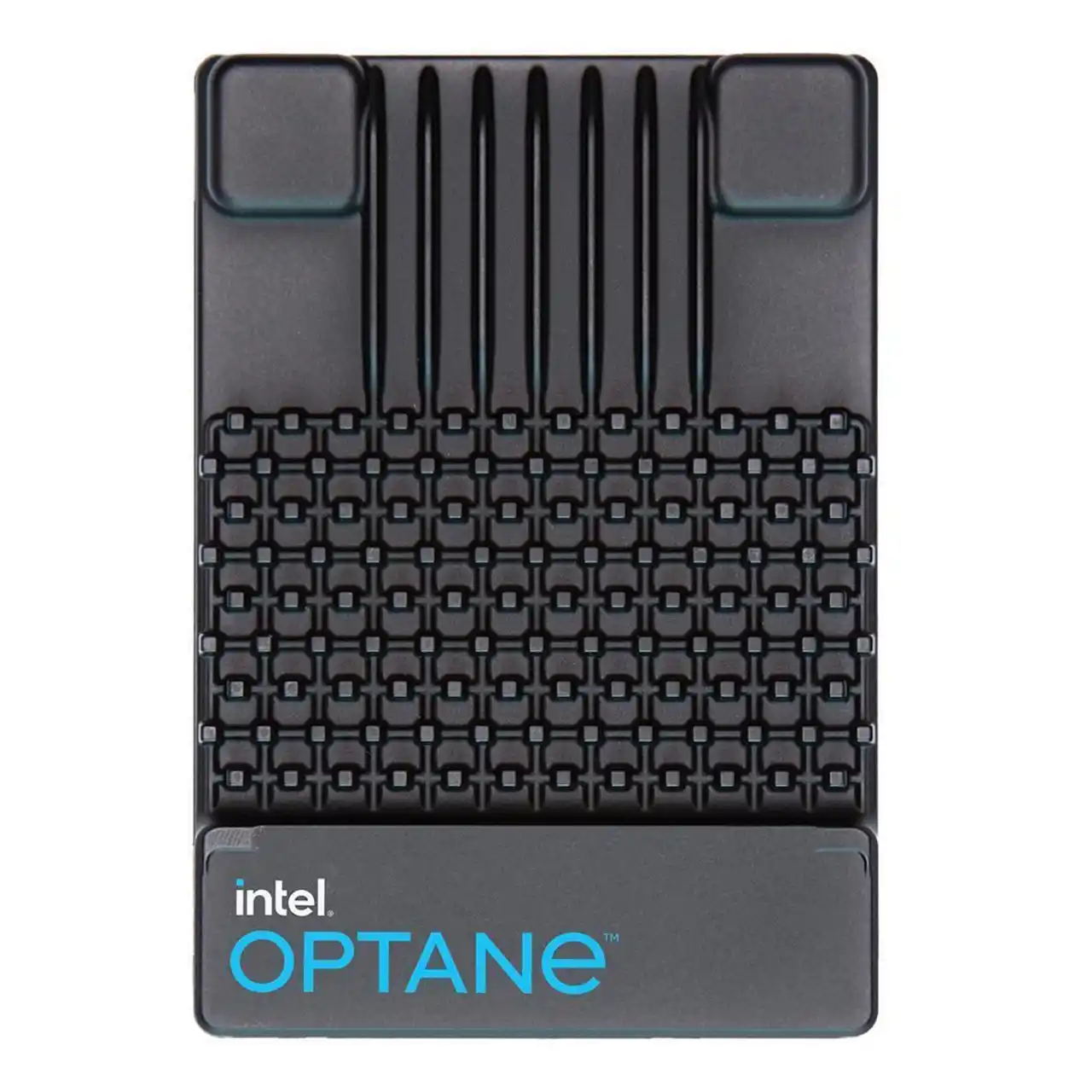

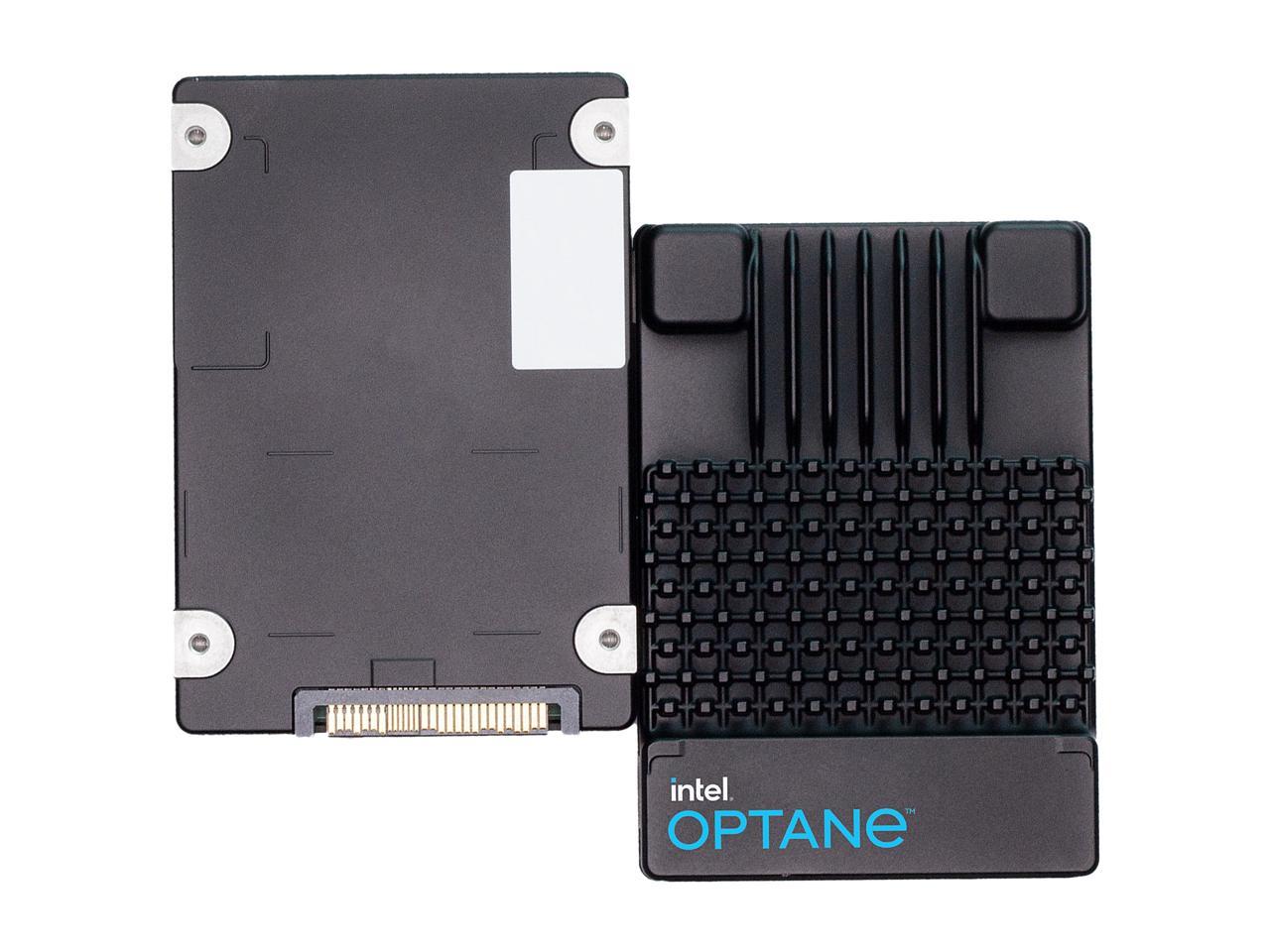

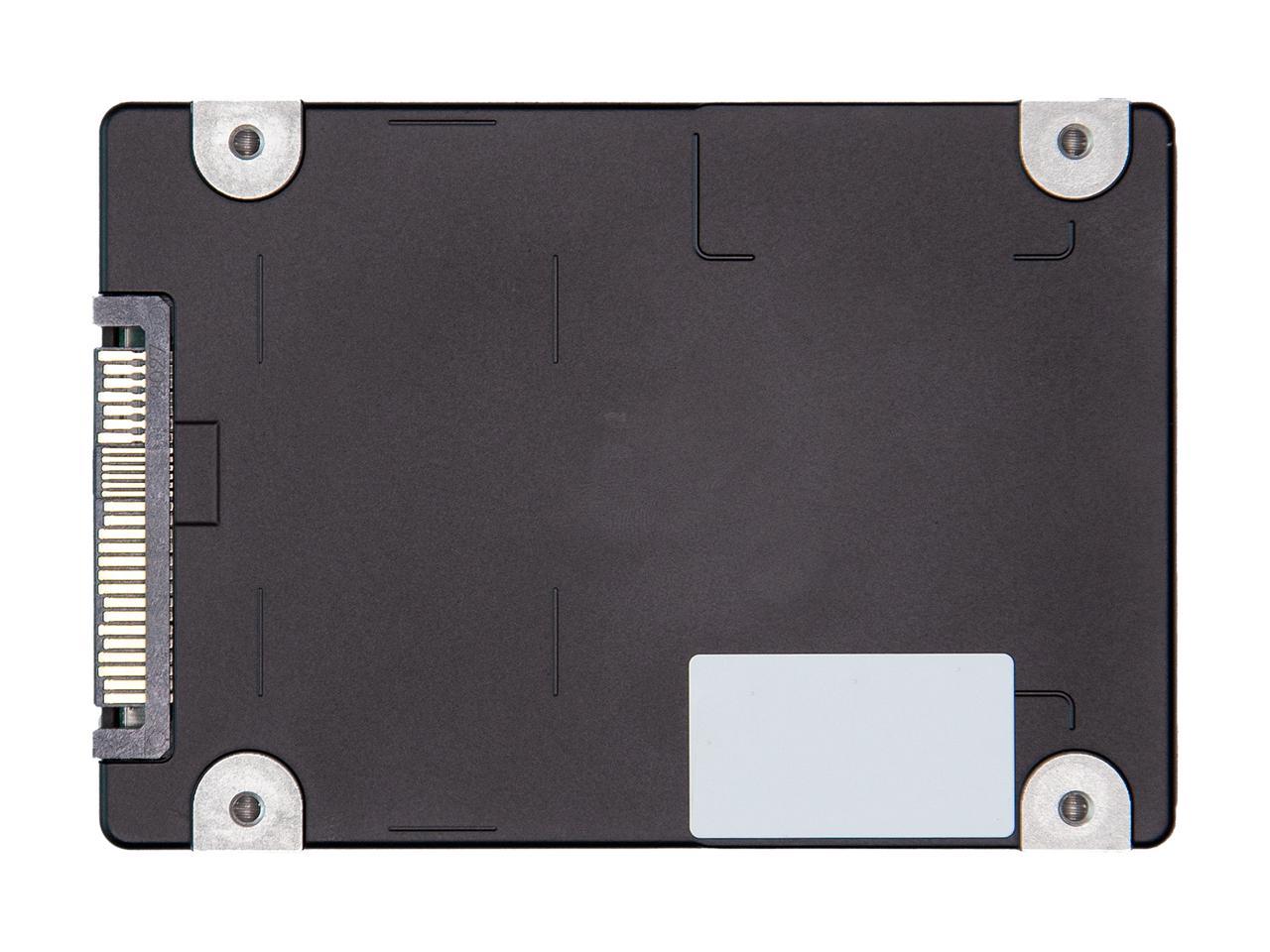

Intel Optane DC P5800X Series 400GB, 2.5″ x 15mm, U.2, PCIe 4.0 x4, 3D XPoint Solid State Drive (SSD) SSDPF21Q400GB01
A high-performance enterprise-grade solid-state drive leveraging 3D XPoint technology for unparalleled speed and endurance. Features PCIe 4.0 x4 interface (up to 7.2GB/s read, 6.2GB/s write) and U.2 form factor. Delivers extreme low latency (6μs) and industry-leading random I/O (1.5M/1M read/write IOPS) for real-time workloads. Exceptional durability (100 drive writes per day) ensures reliability in demanding environments like AI, databases, and financial analytics. Ideal for data centers requiring consistent, high-throughput performance and mission-critical resilience. USP: Unmatched endurance, latency, and sustained speed, outperforming traditional NAND SSDs.
$Quote1 Piece(MOQ)











Power Consumption (Active) | 14W |
---|---|
Memory Components | 3D XPoint |
Max Shock Resistance | 1 000 G 0.5 ms half sine |
Form Factor | 2.5" U.2 |
Max Sequential Read | Up to 7200 MB/s |
Capacity | 400GB |
Brand | Intel |
Model | SSDPF21Q400GB01 |
Series | Optane SSD DC P5800X |
Features | End-to-End Data Protection: Yes, Endurance Rating (Lifetime Writes): 100 DWPD, Enhanced Power Loss Data Protection: Yes, Hardware Encryption: AES 256 bit, High Endurance Technology (HET): Yes, Temperature Monitoring and Logging: Yes |
Interface | PCIe 4.0 x4 NVMe |
Power Consumption (Idle) | 3.8W |
Max Vibration Resistance | Non-Operating: 3.13 Grms (5-800 Hz) random, Operating: 2.17 Grms (5-700 Hz) random |
MTBF | 2 000 000 hours |
Application | Server |
Products Status | New |
Max Sequential Write | Up to 4800 MB/s |
Height | 15.00mm |
Weight | 140.00g |
Operating Temperature | 0C ~ +70C |
