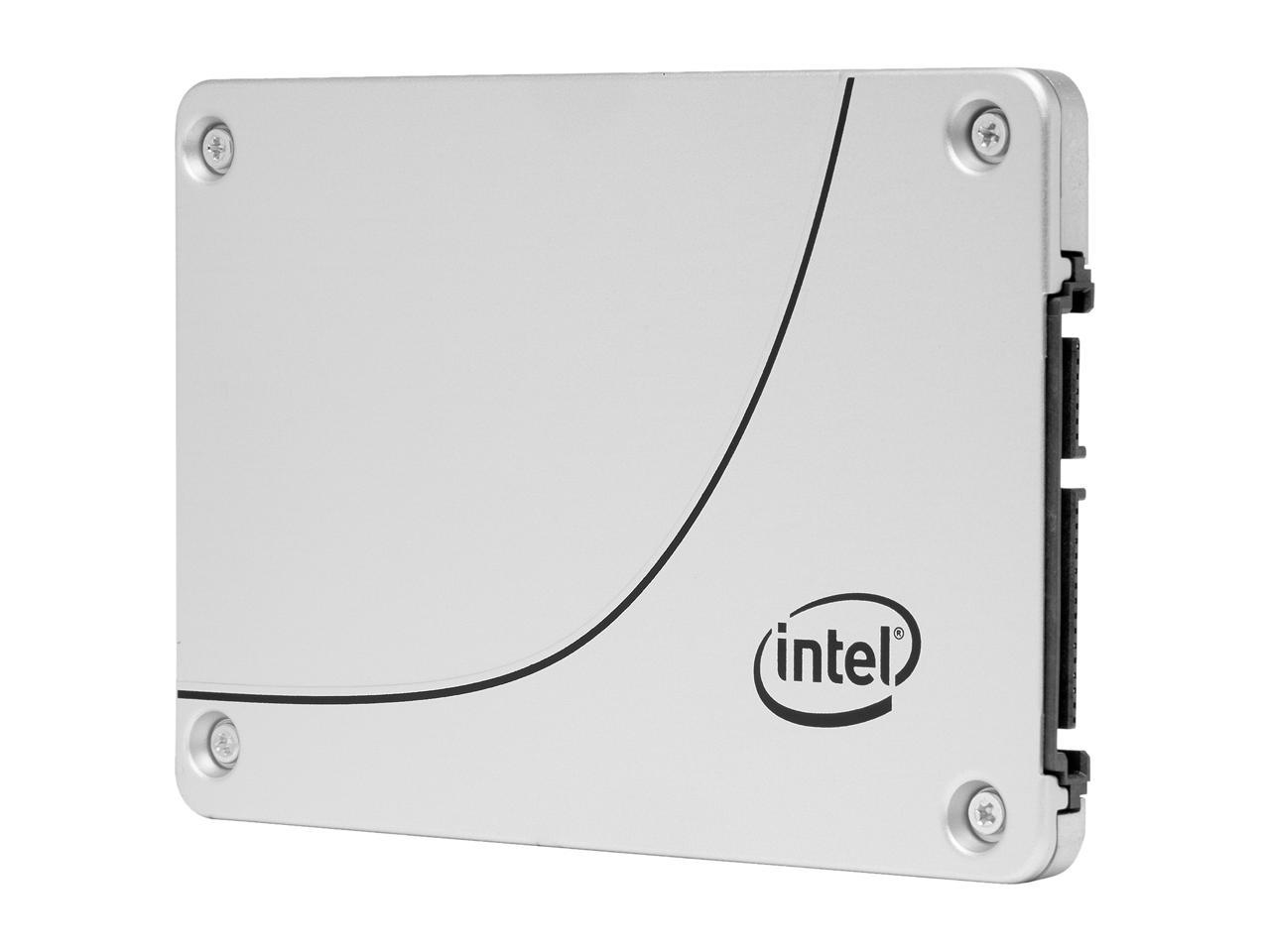

* NOTE: Image may not exactly match the product

INTEL CORP. SSDSC2BB800G701 DC S3520 Series 800GB 2.5 SATA

**Intel DC S3520 Series 800GB 2.5″ SATA SSD**
Enterprise-grade SSD offering 800GB capacity in a 2.5″ SATA III form factor, optimized for data center reliability. Features 20nm MLC NAND with high endurance (up to 3.6PB TBW), sustained read/write speeds of 500MB/s and 440MB/s, and advanced power-loss protection for data integrity. Boasts a 2M-hour MTBF, hardware-based AES 256-bit encryption (TCG Opal 2.0/IEEE 1667), and energy efficiency. Ideal for cloud storage, servers, and applications demanding consistent performance, durability, and security. USP: Intel’s enterprise-grade reliability, robust data protection, and seamless integration into existing infrastructure.

$Quote1 Piece(MOQ)

SKU SSDSC2BB800G701 Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
  • 2.5″
  • MLC
  • SATA III
  • 800GB
Power Consumption (Active)

3.5W
Memory Components

MLC
Max Shock Resistance

1000G
Form Factor

2.5"
4KB Random Write

Up to 17 000 IOPS
Max Sequential Read

Up to 450 MB/s
Capacity

800GB
Brand

Intel
4KB Random Read

Up to 65 500 IOPS
Model

SSDSC2BB800G701
Series

DC S3520
Features

– +35% performance/watt (compared to DC S3510 Series), – 15% lower idle power, – 30% lower active write power, Excellent efficiency across power states (compared to DC S3510 Series), Form factors – 2.5" and M.2 (80mm) with increased capacities, Increased endurance at 1.0 DWPD suitable for a broad range of applications, Low latency
Interface

SATA III
Power Consumption (Idle)

0.6W
Max Vibration Resistance

Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz)
MTBF

2 000 000 hours
Application

Server
Products Status

New
Max Sequential Write

Up to 380 MB/s
Height

7.00mm
Weight

2.22 oz.
Write Latency

42s
Operating Temperature

0C ~ +70C
Read Latency

40s
