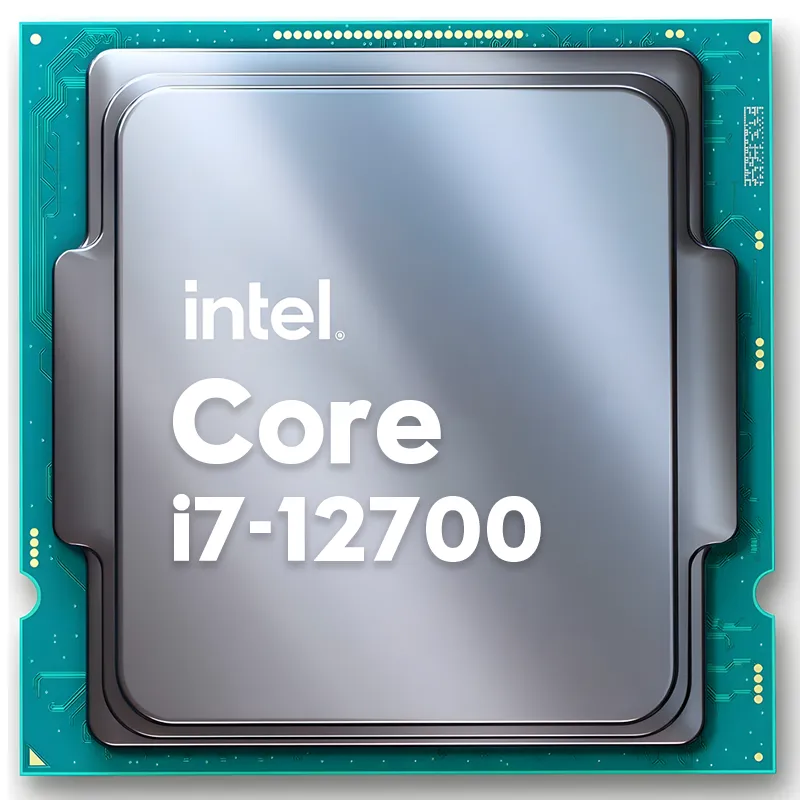

Intel Core i7-12700 Processor Desktop (25M Cache, up to 4.90 GHz)

Brand	Intel
Products Status	New
Series	Intel Core i7 (12th gen)
Part Number	i7-12700
Model	BX8071512700
Shipping Media	BOX
Application	Desktop
CPU Socket Type	FCLGA1700
Code Name	Alder Lake
Total Cores	12
Total Threads	20
Max Turbo Frequency	4.90 GHz
Cache	25 MB Intel Smart Cache
Manufacturing Tech	Intel 7
64-Bit Support	Yes
Hyper-Threading Support	Yes
Embedded Options Available	Yes
Max Memory Size	128 GB
Memory Types	Up to DDR5 4800 MT/s
Max # of Memory Channels	2
ECC Memory Supported	Yes
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	2×8+4, Up to 1×16+4
Max # of PCI Express Lanes	20
Max CPU Configuration	1
Instruction Set	64-bit
# of Performance-cores	8
# of Efficient-cores	4
Graphics Max Dynamic Frequency	1.50 GHz
Graphics Output	DP 1.4a, eDP 1.4b, HDMI 2.1
Execution Units	32
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3
Intel Quick Sync Video	Yes
# of Displays Supported	4
Device ID	0x4680
T JUNCTION	100°C
Package Size	45.0 mm x 37.5 mm
Max Operating Temperature	100 °C
Graphics Base Frequency	300 MHz
Clear Video HD Technology	Yes
Max Memory Bandwidth	76.8 GB/s
Total L2 Cache	12 MB
Description	The Intel Core i7-12700 processor is a high-performance desktop CPU featuring Intel's Alder Lake architecture. With 12 cores and 20 threads, it offers robust multitasking capabilities and efficient power management. Operating on the LGA 1700 socket, it boasts a base clock speed of 2.4 GHz and boosts up to 4.9 GHz, making it ideal for demanding applications, gaming, and content creation tasks where performance is paramount.
