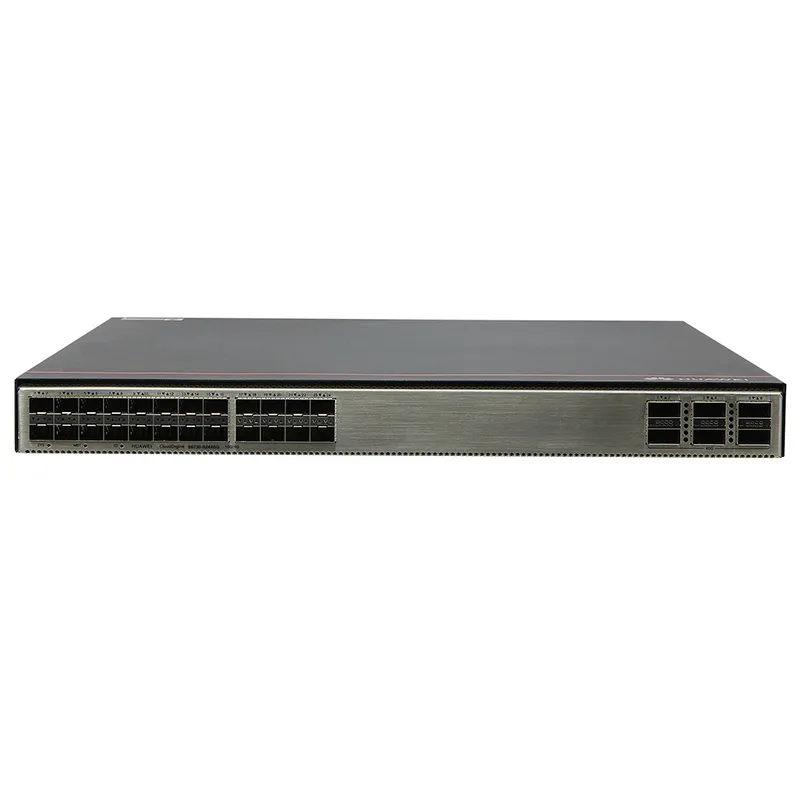

Huawei S6730-S24X6Q (24 x 10 Gig SFP+/6 x 40 Gig QSFP/Dual pluggable power modules, 600W AC)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

02353AJW

Model

S6730-S24X6Q

Brand

Huawei

Warranty

1 Year

Products Status

New

Memory (RAM)

4 GB

Flash

2 GB in total. To view the available flash memory size, run the?display version?command.

Mean time between failures (MTBF)

62.27 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

N/A

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode,
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Weight (with packaging)

8.9 kg (19.62 lb)

Stack ports

Any 10GE SFP+ ports (a maximum of 16 physical ports), Any 40GE QSFP+ ports (a maximum of 6 physical ports)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

249 W

Typical power consumption (30% of traffic load, tested according to ATIS standard)

135 W

Operating temperature

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.),
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 65 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification
