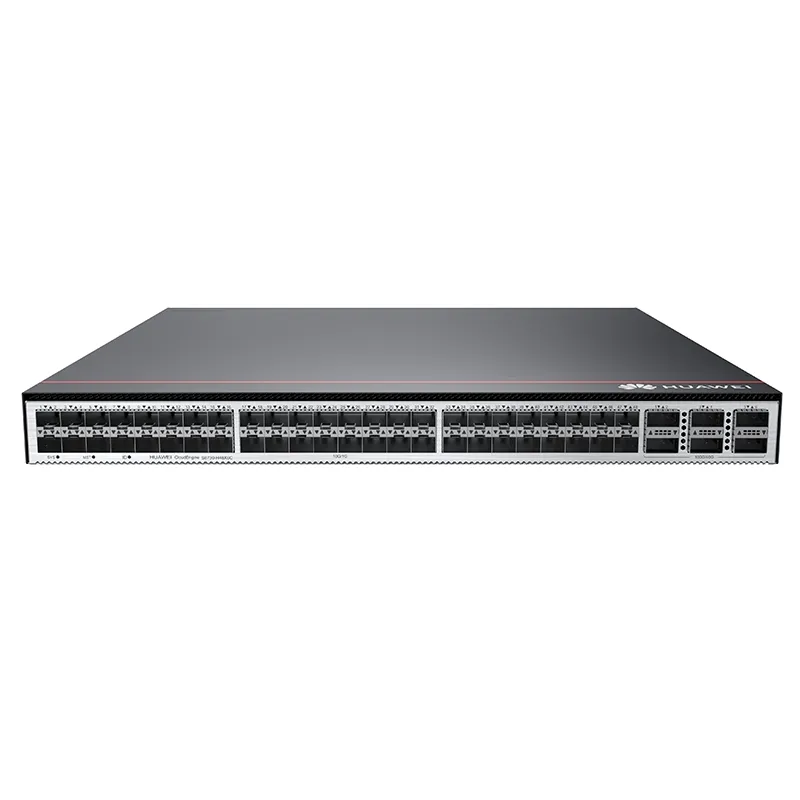

Huawei S6730-H48X6C-V2 (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

02354HHT

Model

S6730-H48X6C-V2

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging

9.2 (20.28)

Weight without packaging

5.84 (12.87)

Maximum power consumption [W]

291

Typical power consumption [W]

165

Maximum heat dissipation [BTU/h]

992.92

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Typical heat dissipation [BTU/h]

563

Power supply mode

Pluggable power supply

Input voltage range [V]

– AC input: 90?C290 V AC; 45?C65 Hz, – High-voltage DC input: 190 V DC to 290 V DC, – DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

– AC input: 100 V AC to 240 V AC; 50/60 Hz,
– High-voltage DC input: 240 V DC,
– DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Number of power slots

2

Number of card slots

0

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

Redundant power supply

1+1, Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic pressure)

52

Noise at normal temperature (acoustic power)

65

Airflow direction

Air intake from front, air exhaustion from rear (front-to-rear)

Long-term operating temperature

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Storage altitude

0-5000 m (0-16404 ft.)

Long-term operating altitude

0-5000 m (0-16404 ft.)

MTBF [year]

56.87

MTTR [h]

2

Availability

>0.99999

Maximum number of physical ports on the entire device

54

Maximum number of 100GE ports

6 (license required)

Maximum number of 40GE ports

6

Maximum number of 25GE ports

0

Maximum number of 10GE ports

48

Maximum number of GE ports

48

Maximum number of FE ports

0

10GE optical interface

48

40G optical interface

6

100G optical interface

6

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Service port surge protection

Power supply surge protection

– AC power module configured: ??6 kV in differential mode, ??6 kV in common mode, – DC power module configured: ??2 kV in differential mode, ??4 kV in common mode

RPS input

Not supported

PoE

Not supported
