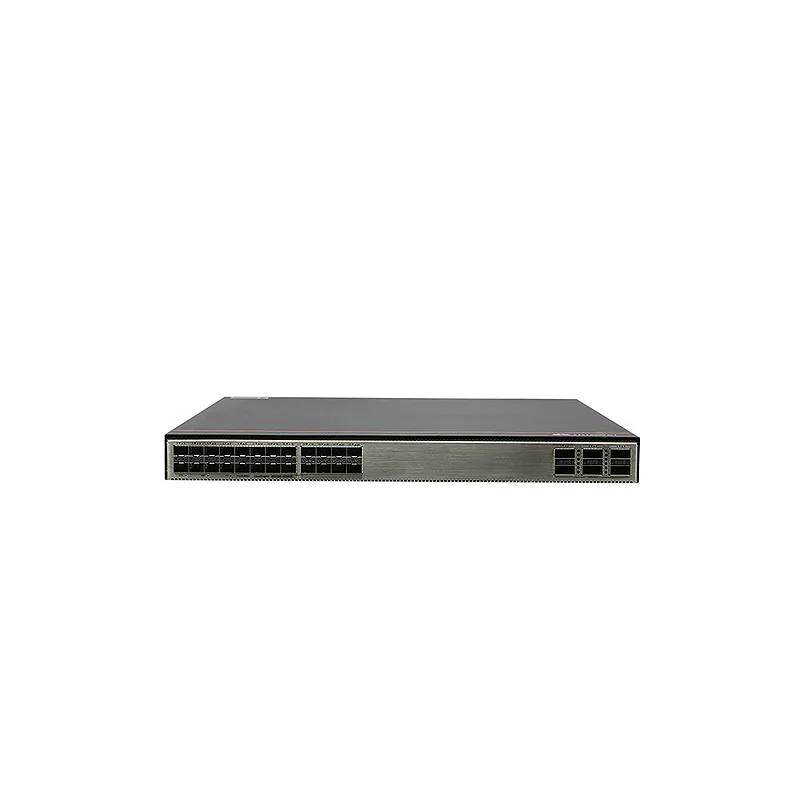

Huawei S6730-H24X6C-K (24*10G SFP+, 6*100GE/40GE QSFP28, including license, without power supply)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

02353KHA

Model

S6730-H24X6C-K

Brand

Huawei

Warranty

1 Year

Products Status

New

Memory (RAM)

4GB

Flash

The physical space is 2GB. The actual available space can be viewed using?the display version?command.

Mean time between failures (MTBF) (years)

62.27

Mean time to repair MTTR (hours)

2

Availability

Greater than 0.99999

Lightning protection specifications for business ports

THAT

Power port lightning protection specifications

Configure AC power module: differential mode ±6kV, common mode ±6kV,
Configure DC power module: differential mode ±2kV, common mode ±4kV

Overall dimensions (width × depth × height)

Basic dimensions (depth is the distance excluding protruding structural parts of the front and rear panels): 442.0mm×420.0mm×43.6mm,
Maximum size (depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 442.0mm×446.0mm×43.6mm

Weight (including packaging material)

8.9kg

stack port

Any 10GE SFP+ interface (supports up to 16 physical interfaces), Any 40GE/100GE QSFP28 interface (supports up to 6 physical interfaces)

RTC

support

RPS

not support

PoE

not support

Rated voltage range

AC input: 100V AC~240V AC; 50/60Hz,
High voltage DC input: 240V DC,
DC input: -48V DC~-60V DC

Maximum voltage range

AC input: 90V AC~290V AC; 45Hz~65Hz,
High voltage DC input: 190V DC~290V DC,
DC input: -38.4V DC~-72V DC

Maximum power consumption (100% flow rate, full fan speed)

254W

Typical power consumption (30% traffic, tested according to ATIS standards)

149W

Storage temperature range

-40°C~+70°C

Noise at normal temperature (27°C, sound power)

Less than 65dB(A)

Relative humidity range

5%RH~95%RH, non-condensing

Working altitude

0m~5000m

certified product

Support EMC certification, Support safety certification, Support production certification
