| Storage temperature range | -40C+70C |
|---|---|
| Maximum power consumption (100% flow rate, full fan speed) | 254W |
| Products Status | New |
| Typical power consumption (30% traffic, tested according to ATIS standards) | 149W |
| Rated voltage range | AC input: 100V AC240V AC; 50/60Hz, High voltage DC input: 240V DC, DC input: -48V DC-60V DC |
| Lightning protection specifications for business ports | THAT |
| PoE | not support |
| PN | 02353KHA |
| Memory (RAM) | 4GB |
| Availability | Greater than 0.99999 |
| Working altitude | 0m5000m |
| RPS | not support |
| Relative humidity range | 5%RH95%RH, non-condensing |
| Flash | The physical space is 2GB. The actual available space can be viewed usingthe display versioncommand. |
| Model | S6730-H24X6C-K |
| RTC | support |
| Weight (including packaging material) | 8.9kg |
| Power port lightning protection specifications | Configure AC power module: differential mode 6kV, common mode 6kV, Configure DC power module: differential mode 2kV, common mode 4kV |
| stack port | Any 10GE SFP+ interface (supports up to 16 physical interfaces), Any 40GE/100GE QSFP28 interface (supports up to 6 physical interfaces) |
| Warranty | 1 Year |
| Brand | Huawei |
| Mean time between failures (MTBF) (years) | 62.27 |
| certified product | Support EMC certification, Support safety certification, Support production certification |
| Overall dimensions (width depth height) | Basic dimensions (depth is the distance excluding protruding structural parts of the front and rear panels): 442.0mm420.0mm43.6mm, Maximum size (depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 442.0mm446.0mm43.6mm |
| Noise at normal temperature (27C, sound power) | Less than 65dB(A) |
| Maximum voltage range | AC input: 90V AC290V AC; 45Hz65Hz, High voltage DC input: 190V DC290V DC, DC input: -38.4V DC-72V DC |
| Mean time to repair MTTR (hours) | 2 |

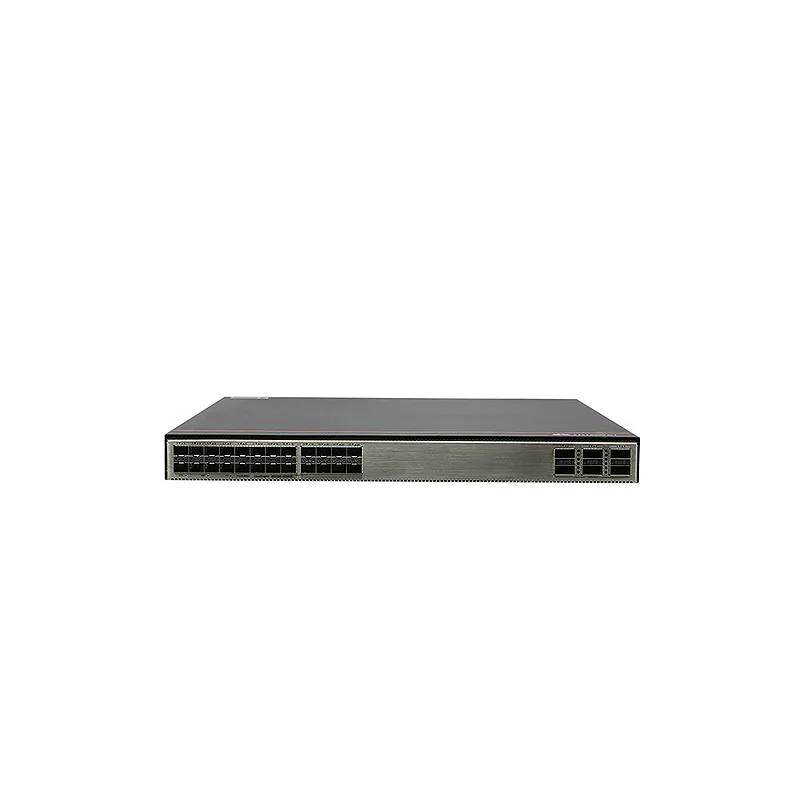

Huawei S6730-H24X6C-K (24*10G SFP+, 6*100GE/40GE QSFP28, including license, without power supply)
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
