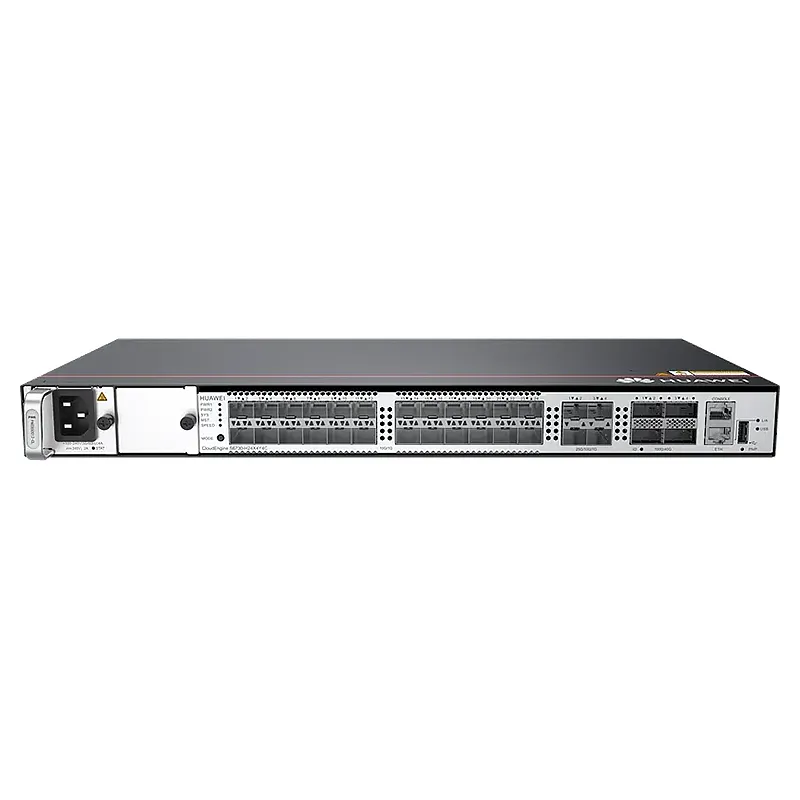

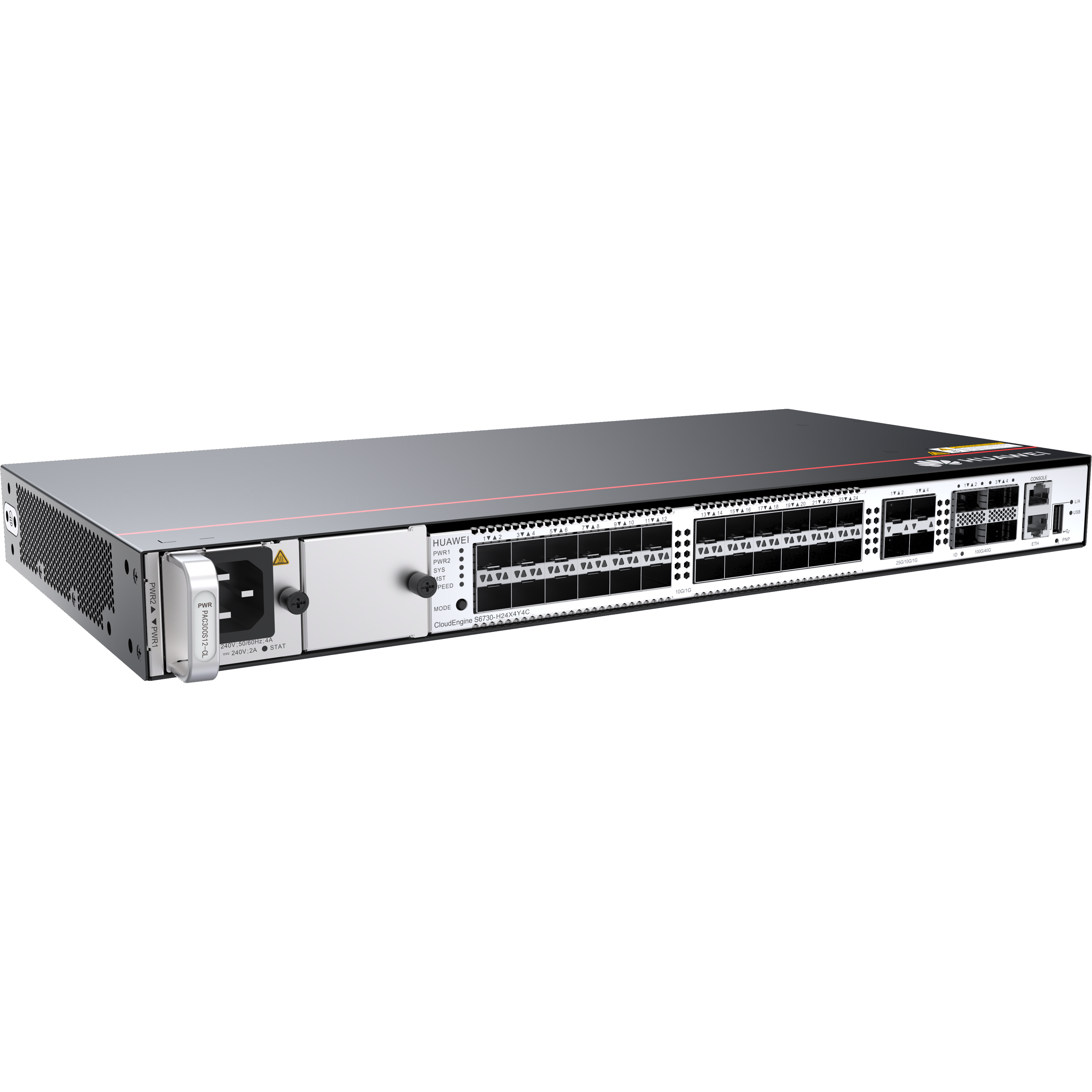

Huawei S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

02353NRD

Model

S6730-H24X4Y4C

Brand

Huawei

Warranty

1 Year

Products Status

New

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.)

Chassis height [U]

1 U

Weight without packaging [kg(lb)]

3.4 kg (7.5 lb)

Weight with packaging [kg(lb)]

4.65 kg (10.25 lb)

Typical power consumption [W]

186 W

Typical heat dissipation [BTU/hour]

634.65 BTU/hour

Maximum power consumption [W]

253 W

Maximum heat dissipation [BTU/hour]

863.26 BTU/hour

Static power consumption [W]

116 W

MTBF [years]

54.68 years

MTTR [hours]

2 hours

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

64.5 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

51.7 dB(A)

Number of card slots

0

Number of power slots

2

Number of fans modules

3

Redundant power supply

1+1, Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

AC input: 100 V AC to 240 V AC; 50/60 Hz,
High-voltage DC input: 240 V DC,
DC input: –48 V DC to –60 V DC

Input voltage range [V]

AC input: 90?C290 V AC; 45?C65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Power supply surge protection [kV]

AC power module configured: ±6 kV in differential mode, ±6 kV in common mode,
DC power module configured: ±2 kV in differential mode, ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification, Safety certification, Manufacturing certification
